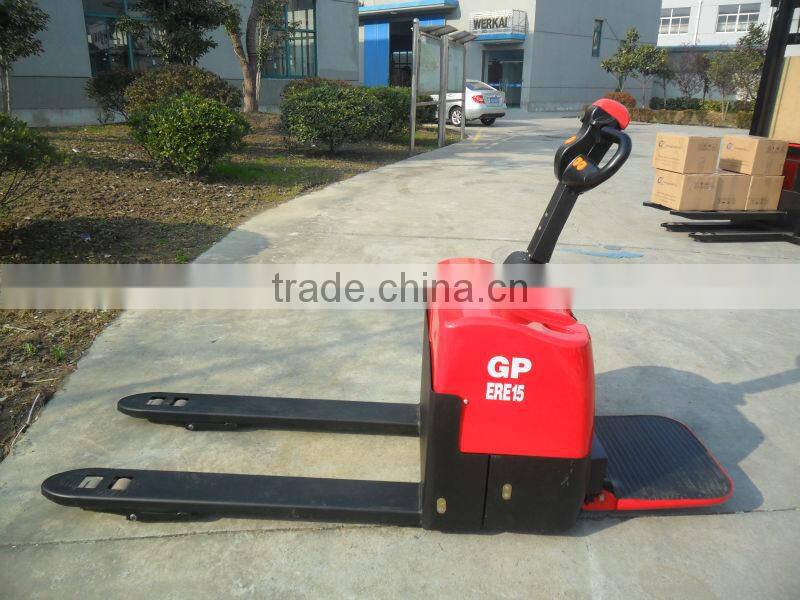

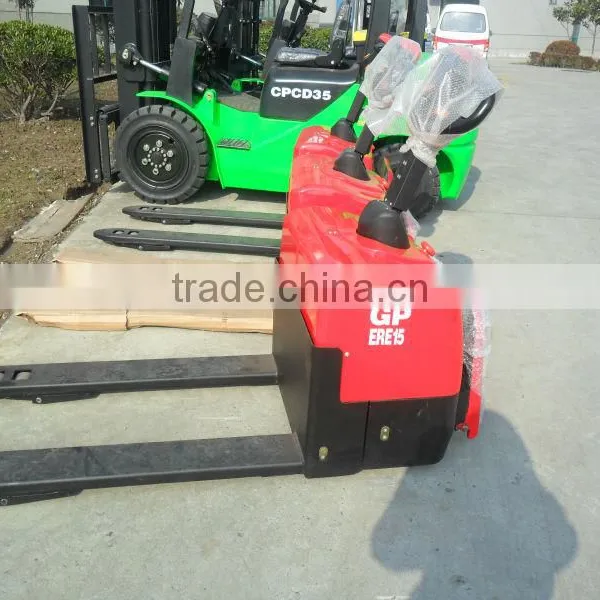

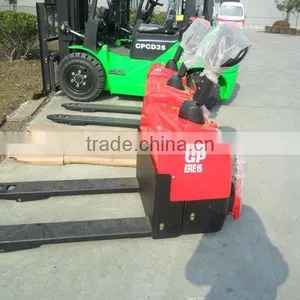

1.5T Electric Pallet Truck

Name: 1.5T Electric Pallet Truck
Brand: GP
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	GP
Model Number:	ERE15	Type:	Powered Pallet Truck	Power Souce:	AC Motor
Rated Loading Capacity:	1500KG	Max. Lifting Height:	120MM	Min. Lifting Height:	85MM
Fork Length:	1220MM	Fork Width:	160MM	Overall Dimensions:	47/160/1220
Certification:	CE&SGS	After-sales Service Provided:	Overseas service center available

Product Description

Specifications

1.Improted hydralic pump station,
pact structure,
lid carriage,large capacity battery

FULL ELECTRIC PALLET TRUCK			Model
Item	Specification	Unit	ERE15	ERE20	ERE22	ERE25
1	Rated capacity	Kg	1500	2000	2200	2500
2	Load center	mm	600	600	600	600
3	Drive type		Standed
4	Motor brake		Electromagnetic
5	Load distance (centerline of front axle to front face of forks)	mm	963/1054	963/1033	963/1033	957
6	Battery weight	Kg	48	185	185	280
7	Self weight (with battery)	Kg	286	520	515	970
8	Full Load per Axle - Driving side / bearing side	Kg	675/1115	1040/1480	1085/1630	162/1850
9	Empty Load per Axle - Driving side / bearing side	Kg	230/60	405/115	400/115	780/200
10	Lifting Height (standard)	mm	120	120	120	130
11	Fork min. ground clearance	mm	85	85	85	85
12	Adjust width of fork (standard)	mm	520/650	540/685	540/685	560
13	Fork size	mm	47/160/1220	60/160/1150	60/160/1150	60/160/1150
14	Minimum ground clearance	mm	24	25	25	25
15	Overall length	mm	1660	1815/1885	1815/1885	2025
16	Overall width	mm	700	726	726	796
17	Overall height (including handle )	mm	1235	1323	1323	1290
18	Bodywork height	mm	677	745	745	1196
19	Wheel tread (front/rear)	mm	490/490	540/380	540/380	441/380
20	Supporting wheel tread	mm	1310	1368	1368	1515
21	Minimum turning radius	mm	1976	1640	1640/1710	1865
22	Stacking right angle aisle width (1200mm pallet)	mm	1976	2105	2105	2255
23	Max. driving speed (full)	Km/h	5	5	5.8	8.7
24	Max. driving speed (empty)	Km/h	5.2	5.2	6	9
25	Max. lifting speed (full)	mm/s	27	27	19	33.7
26	Max. lifting speed (empty)	mm/s	35	35	38	45
27	Max. declining speed (full)	mm/s	42	42	30	35.7
28	Max. declining speed (empty)	mm/s	27	27	27	18.7
29	Gradeability full/empty	%	5/8	10/16	9/15	6.9/14
30	Steering angle	°	205	180	180	180
31	Sound level at the driver's ear	dB(A)	less70	less70	less70	less70
32	Wheels material		Polyurethane
33	Wheel number (front/rear)		4/3
34	Drive wheel (mm)	mm	φ252X89	φ230X75	φ230X75	φ254X82
35	Load wheel (mm)	mm	φ74X70	φ74X70	φ84X70	φ84X70
36	Balance wheel (mm)	mm	φ100X40	φ100X40	φ100X40	φ149X55
37	Travel motor	KW	0.8	1.5	1.5	2.2
38	Lift motor	KW	0.6	0.8	0.8	2.2
39	Voltage	V	2X12	24	24	24
40	Battery capacity	Ah	80	210	210	360
41	Power		Electric
