Home > Transportation > Forklifts & Parts > Forklift > 1.0-1.5T Electric Reach Stacker(AC/DC)

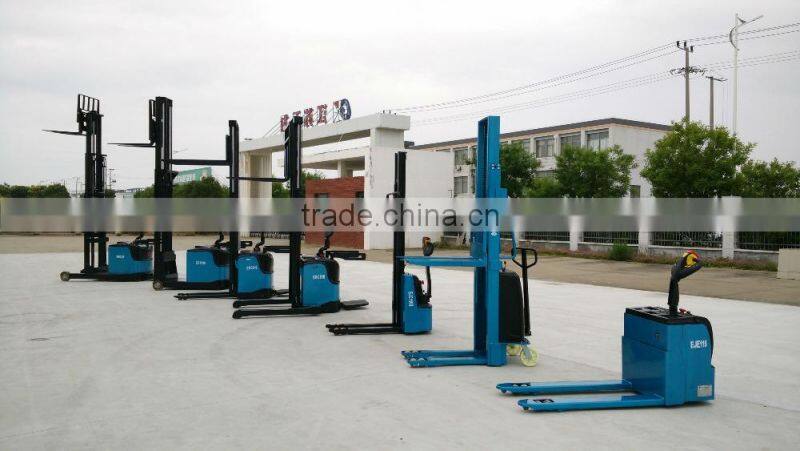

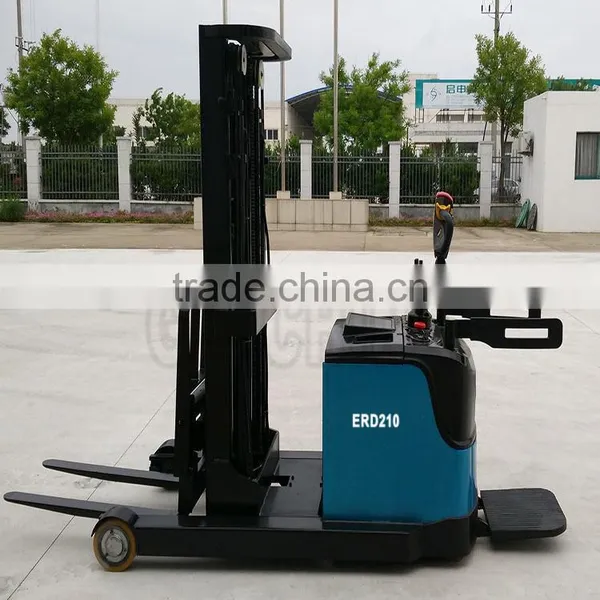

1.0-1.5T Electric Reach Stacker(AC/DC)

Shanghai Gather Power Industry Co., Ltd.

1.0-1.5T Electric Reach Stacker(AC/DC) photo-1

US$ 400 - 400 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name GP

Model Number ERD212

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1000kg-1500kg

Max. Lifting Height 3000mm

Min. Lifting Height 35mm

Fork Length 920mm

Fork Width 35mm

Overall Dimensions 920*100*35

Certification CE,ISO

After-sales Service Provided Overseas service center available

Product Description

Feature	model	unit	EJD/ERD210	EJD/ERD212	EJD/ERD215
	Power	battery
	Operating type	walkie/stand on
	Load capacity	kg	1000	1200	1500
	Load center	mm	500	500	500
	Front overhang	mm	160	160	160
	Wheel base	mm	1580	1680	1780
Weight	Service weight	kg	1650	1890	2200
	Bridge load laden(front/rear)	kg	2230/420	2640/450	3075/525
	Bridge load unladen(front/rear)	kg	850/800	990/900	1100/1000
Wheels and Body	Type	mm	PU	PU	PU
	Wheel size front wheel	mm	210*85	210*85	210*85
	Wheel size rear wheel	mm	252*80	252*80	252*80
	Attach wheels dimension	mm	130*55	130*55	130*55
	Front wheel tread(front/rear)	mm	2/2x=1	2/2x=1	2/2x=1
	Front wheel tread	mm	945	945	945
	Rear wheel tread	mm	620	620	620
Dimension	Mast lowered height	mm	2040	2040	2040
	Standard lift height	mm	3000	3000	3000
	Max. extend height	mm	3855	3855	3855
	Mast reach distance	mm	450	470	550
	Fork angle(front/rear)	mm	2/3	2/3	2/3
	Height of handles in driving position min/max	mm	1160/1450	1160/1450	1160/1450
	Lowered fork height	mm	35	35	35
	Overall length	mm	1780	1880	1980
	Overall length(including fork)	mm	2310	2410	2510
	Overall width	mm	1020	1020	1020
	Fork size	mm	100/35/920	100/35/920	100/35/920
	Fork outside distance	mm	220/660	220/660	220/660
	Min.aisle width for pallet 800*1200	mm	1400	1500	1600
	Min.aisle width for pallet1000*1200	mm	1500	1600	1700
	Min. turning radius	mm	1750	1850	1950
Performance	Travel speed, laden/unladen	km/h	5.1/5.5	5.1/5.5	5.1/5.5
	Lift speed, laden/unladen	mm/s	85/110	75/100	70/100
	Fall travel speed, laden/unladen	mm/s	210/75	220/75	230/75
	Gradeability, laden/unladen	°	6/8	6/8	6/8
	Brake	Electromagnetic
AC power and control	Drive motor power	kw	1.5	1.5	2.2
	Motor power	kw	2	3	3
	Control system	CURTIS(USA)
	Standard battery	v/ah	24/210	24/210	24/280
