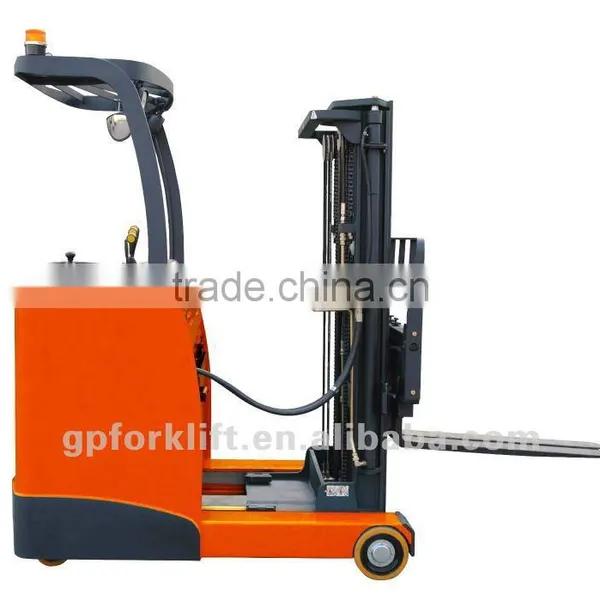

2ton Electric Reach Truck Stand-on Type

2ton Electric Reach Truck Stand-on Type thumbnail-1
2ton Electric Reach Truck Stand-on Type photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number ETM20-30
Type Other, Powered Pallet Truck, Electric
Power Souce DC Motor
Rated Loading Capacity 2000kg
Max. Lifting Height 9500mm
Min. Lifting Height 3000mm
Fork Length 1070mm

Specifications

1. American Curtis electric controller.
2. ISO and CE certificates.
3. Max.lifting height 8.4 meters

1. Products Name: Electric Reach Truck

2. Model: ETM

3.Advantage (Features)

1)Clear view fixed mast
2)Diagnostics,via a CAN bus connection, enable rapid servicing and maximum uptime
3)Maximum residual capacities at high lift
4)Large capacity Lifting Motor
5)Safety design, reach ISO & CE



Electric Reach Truck Model
Item Specification Unit ETM10-30 ETM13-30 ETM15-30 ETM18-30 ETM20-30
1 Characteristics Power   Battery
2 Operation   Stand-on Stand-on Stand-on Stand-on Stand-on
3 Rated load capacity Q(kg) 1000 1300 1500 1800 2000
4 Rated lift height h3(mm) 3000
5 Load centre C(mm) 500
6 Fork carriage tilt (Forward/Backward) α/β(Deg) 3°/5°
7 Travel speed (Laden/Unladed) km/h 8.0/8.5 8/8.5 8.8/9.3 8.5/9.3 9.1/9.0
8 Lifting speed(Laden) mm/s 175 175 240 230 220
9 Max. gradeability(Laden) % >12 >12 >12 >12 >10
10 Min. turning radius Wa(mm) 1420 1620 1725 1735 1775
11 Reach distance X(mm) 520 720 600 600 645
12 Wheelbase Y(mm) 1160 1360 1470 1470 1520
13 Service brake   Elec Elec Elec Elec Elec
14 Dimensions Overall width l1(mm) 2115 2125 2340 2350 2350
15 Main body length l2(mm) 1045 1055 1270 1280 1280
16 Overall width b1(mm) 1045 1045 1200 1216 1216
17 Height of mast, lowered h1(mm) 2080 2080 2085 2085 2085
18 Free lift height h2(mm) 330
19 Height of mast, extended h4(mm) 3915 3915 4000 4000 4000
20 Height of overhead guard h5(mm) 2210 2210 2260 2260 2260
21 Fork dimensions(TxWxL) mm 35x100x1070 35x100x1070 35x122x1070 40x122x1070 40x122x1070
22 Min. ground clearance h6(mm) 80
23 Aisle width with pallet (1200x1200) Ast1(mm) 2660 2710 2910 2920 2920
24 Aisle width with pallet (1000x1000) Ast2(mm) 2440 2495 2690 2700 2700
25 Weight Service weight kg 2050 2150 2670 2700 2725
26 Motor Driven motor Kw 2.2 2.2 4.5 4.5 4.5
27 Lift motor Kw 3.5 3.5 9.2 9.2 9.2
28 Battery: Voltage/capacity (5h)standard (option) (V/Ah) 48/210 *48/225 48/210 *48/225 48/420 *48/500 48/420 *48/500 48/420 *48/500
29 Wheel Tyres   Polyurethane tyre
30 Size of front tyre mm Φ250x70 Φ250x70 Φ250x120 Φ250x120 Φ250x120
31 Size of rear tyre mm Φ381x130
32 Size of balancing tyre mm Φ178x75
33 Track width(front) mm 975 975 1070 1070 1070
34 Track width(rear) mm 490 490 580 580 580
35 Turning system   Hydraulic
36 Speed control system   ZAPI / Curtis
