1-2Ton Electric Reach Truck Lift 12m

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

TF15, TF20

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GP

Model Number TF15, TF20

Specifications

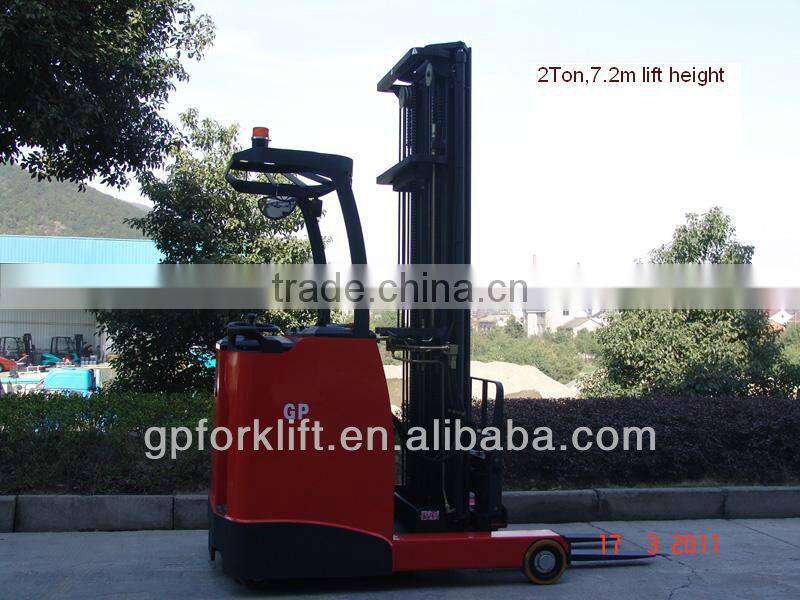

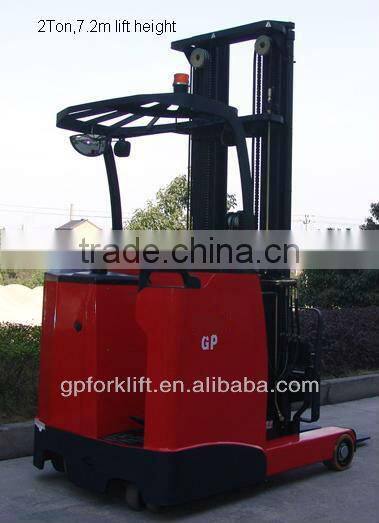

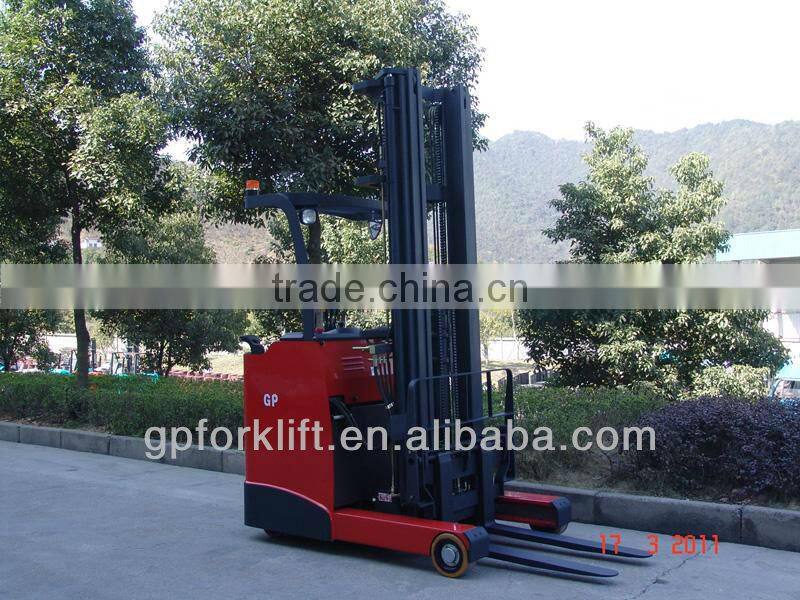

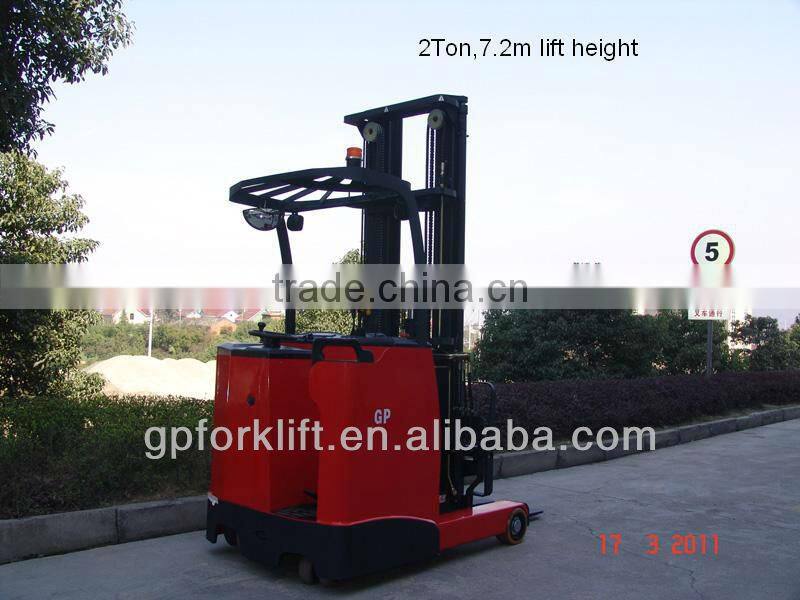

Electric reach truck, TF20-72, capacity 2 tons, max. liftheight 7.2m, 1.07m fork, with battery and charger, CURTIS controller

Model	TF10-30	TF15-30	TF20-30	TF25-30
Load capacity Kg	1000	1500	2000	2500
Load center mm	500	500	500	500
Lifting height mm	3000	3000	3000	3000
Lifting speed(Load) mm/s	285	255	240	220
Driving speed km/h	8.5	7.5	9.4	9
Forwarding length (mm)	560	560	680	680
Gradeability%	≤10	≤10	≤10	≤10
Fork tilt°	3/5	3/5	3/5	3/5
Turning radius mm	1610	1610	1965	1965
Overall length(Outstretch) mm	2260	2260	2500	2500
Overall width mm	1090	1090	1250	1250
Overhead guard height mm	2280	2280	2280	2280
Mast height	2100	2100	2100	2100
Max lift mast height	3900	3900	3950	3950
Wheelbasemm	1350	1350	1700	1700
Adjust width of fork mm	200-740	250-740	250-812	250-820
Fork size mm	1070×100×35	1070×100×35	1070×125×40	1070×125×40
Total weight Kg	2000	2300	3000	3000
Front wheel mm	267×114	267×114	267×114	267×114
Driving wheel mm	343×114	343×114	343×114	343×114
Balance wheel mm	180×76	180×76	180×76	180×76
Driving motor KW	4	4	5	5
Lifting motor KW	6.3	6.3	7.5	7.5
Battery	48/300	48/300	48/400	48/400
ChargerA	45	45	60	60
