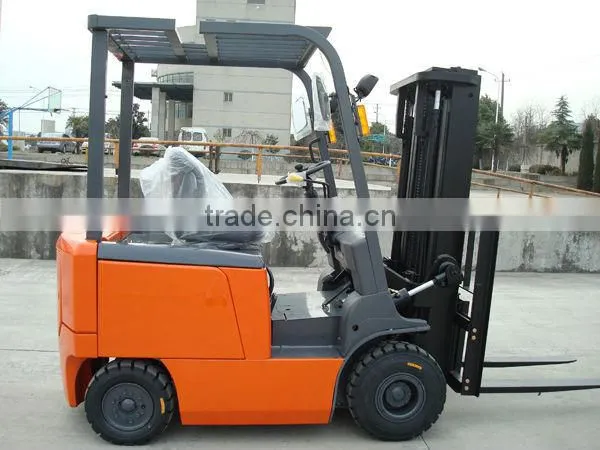

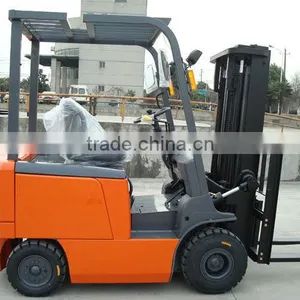

1.8ton Electric Forklift Truck

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port or any China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPDS18

Type Other

Power Souce AC Motor

Rated Loading Capacity 1800

Max. Lifting Height 6500mm

Min. Lifting Height 3000mm

Fork Length 920mm

Fork Width 100mm

Overall Dimensions 1860*1070*1990mm

Specifications

Italy SME AC control system
Easy-to-read imported multifunction display panel
Imported fully AC duo-motor drive
OEM available

GP 1,500kg Load capacity 3-Wheel Electric Forklift Truck:

General		Manufacturer				GP
	1	Model				CPDS15	CPDS18
	2	Rated capacity			kg	1500	1800
	3	Load center			mm	500
	4	Power type				Battery
	5	Tire type		Front/Rear		solid
	6	Wheels		Front/Rear		2*2
Dimensions	7	Lift height			mm	3000
	8	Free lift height			mm	130
	9	Fork size		LWT	mm	92010040	107012040
	10	Mast tilt angle		Fwd/Bwd	deg	5/7
	11	Overall length (without fork)			mm	1860	1910
	12	Overall width			mm	1070
	13	Mast height fork lowered			mm	1980
	14	Overall height fork raised			mm	3945
	15	Overall height (overhead guard)			mm	1990
	16	Turning radius (outside)			mm	1500	1500
	17	Load distance (centerline of front axle to front face of forks)			mm	360
	18	Minimum Aisle -90 degree stack(Add load length and clearance)			mm	2860/3010	2910/3110
	19	Wheel base			mm	1295
	20	Tread		Front	mm	895
	21			Rear	mm	205
	22	Min. Under-clearance		Bottom of mast	mm	80/85	75/85
	23			Bottom of frame	mm	100/110
Performance	24	Speed	Travel Max.	With load	km/h	15
	25			Without load	km/h	15.5
	26		Lifting	With load	km/h	300
	27			Without load	km/h	470
	28		Lowering	With load	km/h	450
	29			Without load	km/h	450
	30	Max. Drawbar pull		With/without load	kn	14.5	13
	31	Max.Gradeability		With/without load	% (fan)	20
Weight	32	Service weight			kg	3100	3260
Tyre	33	Tyre	Size	Front		18*7-8 PR
	34			Rear		16*6-8 PR
power control	35	Battery	Voltage		V	48
	36		Capacity		AH	505
	37	Motor	drive motor		kw/rpm	2*6.5/1500
	38		lift motor		kw	12/2200
	39	controller				SME AC Controller
