1.5-2.0 Ton Elecric Forklift Truck From China With 3-stage Mast, Lifting Height 4 Meters

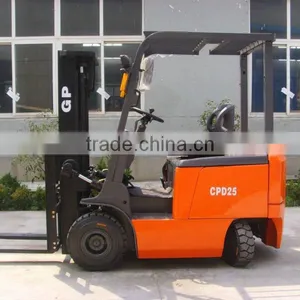

1.5-2.0 Ton Elecric Forklift Truck From China With 3-stage Mast, Lifting Height 4 Meters thumbnail-1

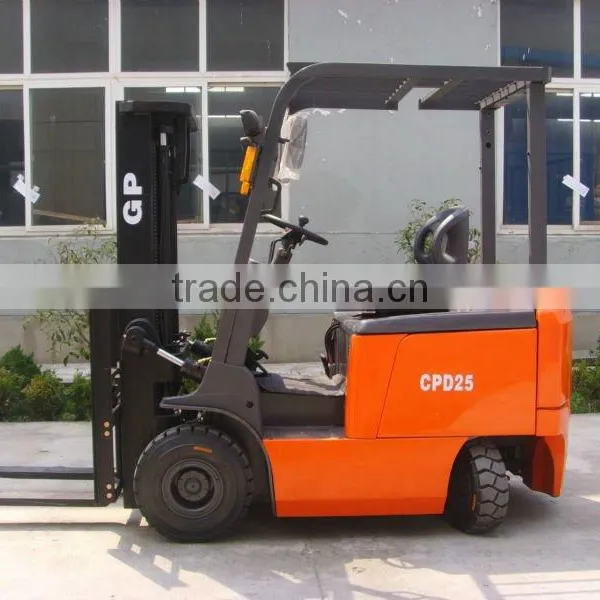

1.5-2.0 Ton Elecric Forklift Truck From China With 3-stage Mast, Lifting Height 4 Meters photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number CPD15J
Type Other, Electric Forklift Truck
Power Souce AC Motor
Rated Loading Capacity 1.5 Ton
Max. Lifting Height 3000mm
Min. Lifting Height 162mm
Fork Length 900mm
Fork Width 100mm
Overall Dimensions 2760mm
Certification CE, SGS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

2 ton electric forklift
1. Separately Excited DC Motor
2. CURTIS electronic controller
3. Imported hydraulic

2 ton electric forklift  with 3-stage mast, lifting height 4 meters



Advantage:



1.It is equipped with emergency switch, imported accelerator, and newly designed cell cover with lock.

2. It is provided with wide view mast and power assisted steering.

3. It is equipped with intelligent lowering and buffering system, which ensures the smooth lifting and lowering of the fork.



Combining the latest in operator ergonomics, advanced AC control systems and customized performance, the 1.5 to 1.8 ton Series of three-wheel battery powered forklift is up to any application challenge. Special design allows small electric forklift to operate in areas outside of traditional electric motor forklift applications. The hydraulic lift system is designed with a load lowering valve that reduces decent should the system lose pressure. Vmax lift truck company has best price for you, you can write email to us.



Specifications of Electric Forklift Truck:

Characteristics
1 4-wheel AC Power Pneumatic Tire Electric Forklift   CPD15J CPD20J CPD25J CPD30J
2 Capacity at rated load center kg 1500 2000 2500 3000
at load center - distance mm 500 500
3 Power diesel, Gasoline / LPG, electric   electric electric
4 Tire Type solid, pneumatic   pneumatic pneumatic
5 Wheels (x = drive) number front / rear   2x/2 2x/2
Dimensions
6 Lift Height with standard two-stage mast (VM) mm 3000
7 Free Lift Height mm 162 140 140 145
8 Fork size Length*Width *Thickness mm 920x100x40 1070x120x40 1070x120x45 1070x125x45
9 Fork spacing (Min./Max.) out-to-out mm 200/968 240/1040 240/1040 250/1100
10 Mast tilt angle Forward / Backward deg 612 610 610 610
11 Overall length (to fork face) mm 2056 2349 2381 2481
  width (standard) mm 1090 1265 1265 1265
dimensions height with lowered mast mm 1995 2040 2040 2040
with extended mast mm 4042 4240 4240 4273
to top of overhead guard mm 2162 2125 2125 2125
12 Turning radius (outside) mm 1820 2050 2100 2230
13 Load distance (centerline of front axle to front face of forks) mm 429 459 464 454
Performance
14 Speeds Travel speed loaded km/h 13 12 12 12
15 empty km/h 15 14 14 14.5
16 Lifting speed loaded mm/sec 300 310 300 280
17 empty mm/sec 400 420 420 420
18 Gradeability loaded/empty % 15 10 10 10
Weight
19 empty with minimum weight battery   Kg 3120 4160 4360 4850
Chassis
20 Tyre Size Front, standard pneumatic tires   6.5-10-10PR 23x9-10-16PR 23x9-10-16PR 23x9-10
21 Rear, standard pneumatic tires   5.00-8-8PR 18x7-8-14PR 18x7-8-14PR 18x7-8
22 Wheel base mm 1250 1500 1500 1630
23 Tread width Front mm 890 1040 1040 1040
Rear mm 920 950 950 980
24 Min. Under-clearance (full load / no load ) at lowest point at mast mm 95/110 85/105 85/105 85/105
25 at center of wheelbase mm 95/105 120/140 120/140 120/140
Powertrain
26 Battery Voltage V 48 48 48 80
27 Capacity AH 400/440/480 630/700 630/700 500/600
28 Electric motor Drive motor output kw/rpm 8/1600 8/1300 8/1300 13/1500
29 Hydraulic motor output kw/rpm 10/2450 15/2200 15/2200 22/2100
30 controller   Italian SME AC controller





Charicterstics
1 3-wheel AC Power Solid Tire Electric Forklift   CPDS15 CPDS18
2 Capacity at rated load center kg 1500 1800
at load center - distance mm 500
3 Power diesel, Gasoline / LPG, electric   electric
4 Tire Type solid, pneumatic   solid
5 Wheels (x = drive) number front / rear   2x/2
Dimensions
6 Lift Height with standard two-stage mast (VM) mm 3000
7 Free Lift Height mm 130
8 Fork size Length*Width*Thickness mm 920x100x40
9 Mast tilt angle Forward / Backward deg 5/7
10 Overall dimensions length (to fork face) mm 1860 1910
width (standard) mm 1070
height with lowered mast mm 1980
with extended mast mm 3945
to top of overhead guard mm 1990
11 Turning radius (outside) mm 1500 1500
12 Load distance (centerline of front axle to front face of forks) mm 360
Performance
13 Speeds Travel speed loaded km/h 14 13.5
14 empty km/h 15.5 15
15 Lifting speed loaded mm/sec 300
16 empty mm/sec 470
17 Gradeability loaded/empty % 20
Weight
18 empty with minimum weight battery   Kg 3100 3260
Chassis
19 Tyre Size Front, standard pneumatic tires   18x7-8 PR
20 Rear, standard pneumatic tires   16x6-8 PR
21 Wheel base mm 1295
22 Tread width Front mm 890
Rear mm 920
23 Min. Under-clearance (full load / no load ) at lowest point at mast mm 895
24 at center of wheelbase mm 205
Powertrain
25 Battery Type   Lead-acid battery
Voltage V 48
26 Capacity AH 505
27 Electric motor Drive motor output kw/rpm 2x6.5/1500
28 Hydraulic motor output kw/rpm 12/2200
29 controller   SMEAC Italian SME AC controller


Picture:

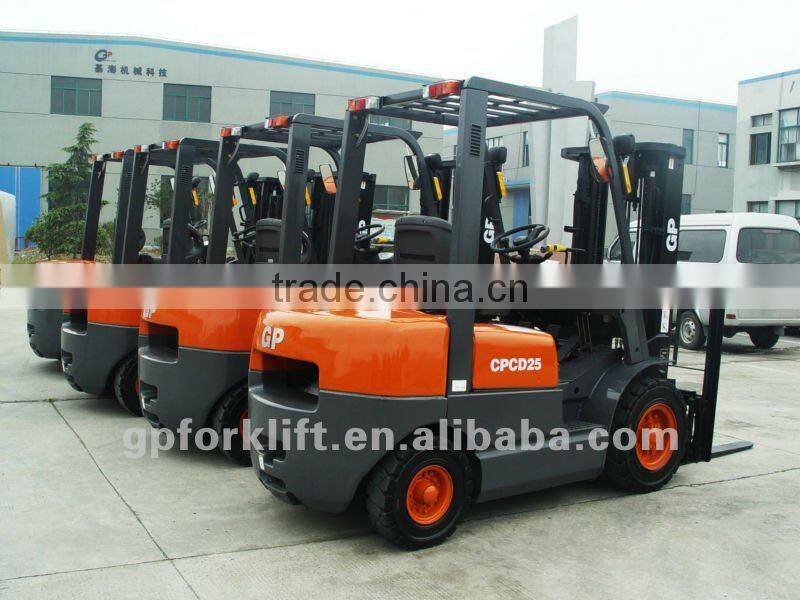

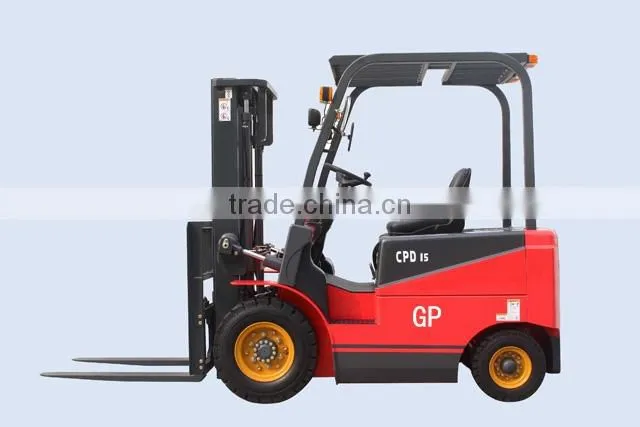

1.5-2.0 ton elecric forklift truck from China with 3-stage mast, lifting height 4 meters

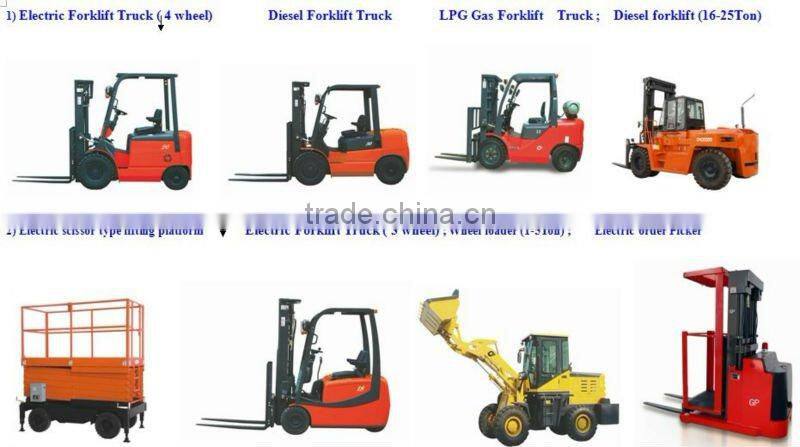

1.5-2.0 ton elecric forklift truck from China with 3-stage mast, lifting height 4 meters1.5-2.0 ton elecric forklift truck from China with 3-stage mast, lifting height 4 meters
