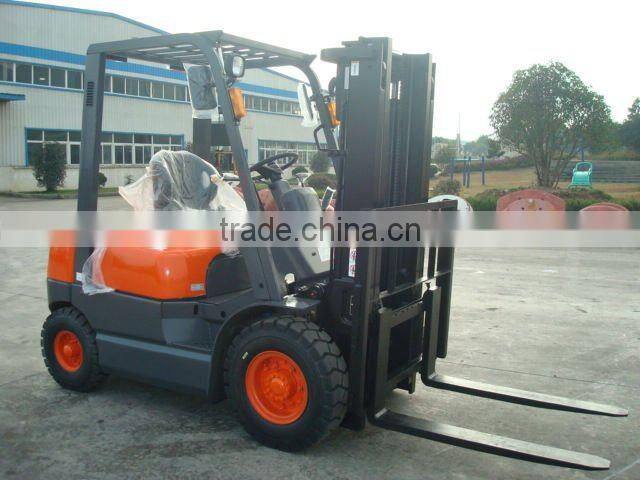

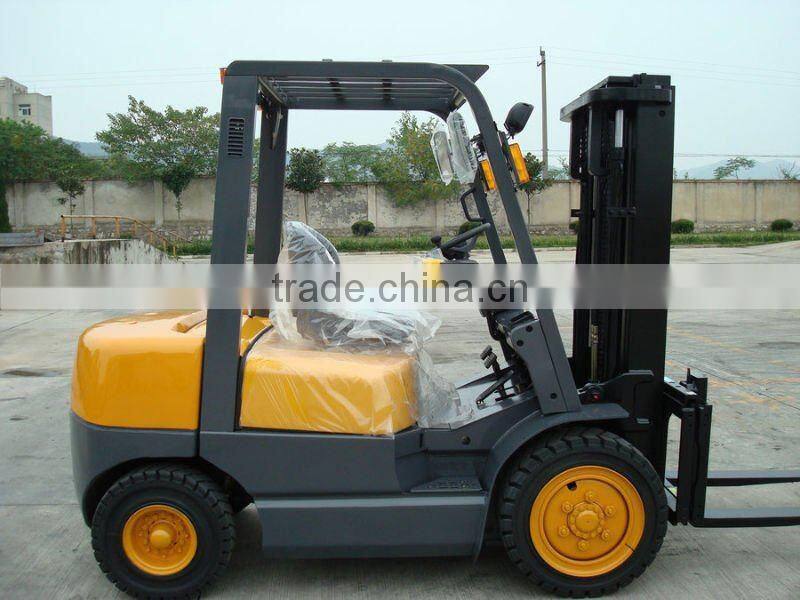

1.8 Ton Mini Diesel Forklift

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPCD18

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 1800kg

Max. Lifting Height 3000mm

Min. Lifting Height 0mm

Fork Length 920mm

Fork Width 122mm

Overall Dimensions 920*122*40mm

Specifications

1.ISUZU engine
2.Integration electric elements
3.Import hydraumatic brake elements

1800kg Diesel Forklift Truck Description

1.Rated capacity 1800kg,Load center 500 mm

2.lift height is 3m with 2 stage mast

3.the engine:ISUZU engine

4.pneumatic tire.

General		Manufacturer			GP
	1	Model			CPCD10	CPCD15	CPCD18
	2				CPC10	CPC15	CPC18
	3	Rated capacity		kg	1000	1500	1800
	4	Load center		mm	500
	5	Gearbox change speed type			Hydraulic/Mechanical
	6	Power type			Diesel
	7	Tire type	Front/Rear		Pneumatic
	8	Wheels	Front/Rear		2*2/2
Dimensions	9	Lift height H		mm	3000
	10	Free lift height H4		mm	162
	11	Fork size	LWT	mm	92012240
	12	Mast tilt angle	Fwd/Bwd α/β	deg	6/12
	13	Overall length (without fork) L1		mm	2180	2235	2270
	14	Overall width B1		mm	1080
	15	Mast height fork lowered H1		mm	1995
	16	Overall height fork raised H3		mm	4042
	17	Overall height (overhead guard) H2		mm	2075
	18	Turning radius (outside) R		mm	1890	1960	2000
	19	Load distance (centerline of front axle to front face of forks)		mm	429
	20	Minimum Aisle -90 stack(Add load length and clearance)		mm	1740	1780	1820
	21	Wheel base Y		mm	1400
