30-40 Ton Mobile Container Mast Lift Crane for Seaport Transportation
US$ 1 - 23,000
MOQ: 1 Pair
Key Specifications
Get Latest Price
Condition:
New
Application:
container loading
Rated Loading Capacity:
30 Ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40000kg Mobile Shipping Lifting Container Crane Made in ShanghaiUS$ 1 - 24,300MOQ: 1 Pair -
Container Gantry Crane With Little Radius of Turning CircleUS$ 19,500 - 24,500MOQ: 1 Unit
-
Gantry Crane Price Container With Two Wheel DriveUS$ 19,500 - 24,500MOQ: 1 Unit
-
Container Crane With Low Noise and Small Shock AdvantageUS$ 19,500 - 24,500MOQ: 1 Unit
-
Container Crane Cost With Smooth Safety and High EfficiencyUS$ 19,500 - 24,500MOQ: 1 Unit
Condition
New
Application
container loading
Rated Loading Capacity
30 Ton
Rated Lifting Moment
1.45m
Max. Lifting Load
30ton
Max. Lifting Height
4660mm
Span
4500mm
Place of Origin
Shanghai, China
Brand Name
GP
Model Number
BSJD300T
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
30-40 ton mobile container mast lift crane for seaport transportation
Specifications:
| Specifications of mast mobile container crane | |||
| Model No. | BSJD300T | BSJD360T | BSJD400T |
| Load capacity | 30 Ton | 36 Ton | 40 Ton |
| Max.lifting height | 4660mm | 4660mm | 4660mm |
| Max.lifting speed | 0.065m/s | 0.065m/s | 0.065m/s |
| Engine type | Xinchang C490 engine | Xinchang C490 engine | Xinchang C490 engine |
| Engine power/rotate speed | 22KW / 2700r/min | 22KW / 2700r/min | 22KW / 2700r/min |
| Max.torque/rotate speed | 70.2/1960~2240[Nm/r min] | 70.2/1960~2240[Nm/r min] | 70.2/1960~2240[Nm/r min] |
| Max.travel speed | 3.5km/h | 3.5km/h | 3.5km/h |
| Diameter of lifting cylinder | 203mm | 203mm | 203mm |
| Pressure of lifting system | 10Mpa | 10Mpa | 10Mpa |
| Diameter of steering cylinder | 75mm | 75mm | 75mm |
| Min.turning radius | 4500mm | 4500mm | 4500mm |
| Pressure of steering system | 15Mpa | 15Mpa | 15Mpa |
| Torque of hydraulic motor | 949Nm | 949Nm | 949Nm |
| Rotate speed of hydraulic motor | 6~400r/min | 6~400r/min | 6~400r/min |
| Diameter of drive wheel | 450mm | 450mm | 450mm |
| Min.under-clearance | 80 | 80 | 80 |
| Suitable carriage height | 1.45m/1.75m | 1.45m/1.75m | 1.45m/1.75m |
| Overall length | 4900mm | 4900mm | 4900mm |
| Overall width | 2500mm | 2500mm | 2500mm |
| Overall height | 6600mm | 6600mm | 6600mm |
| Total weight | 7.0 Ton | 7.5T | 8.0T |

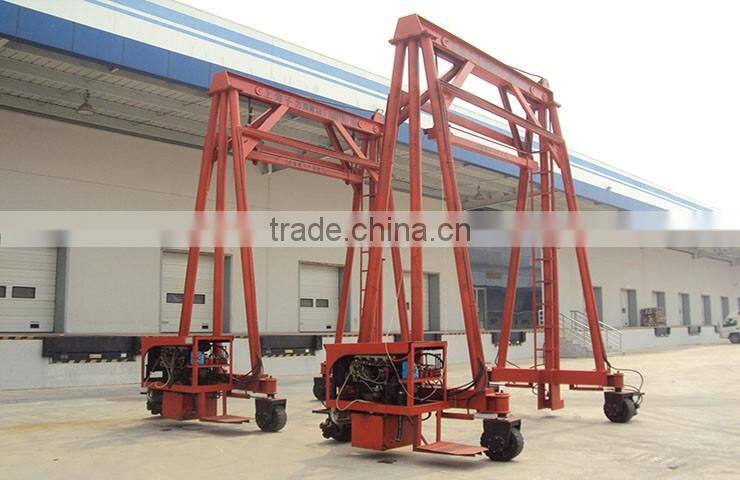

Product's picture
