30T,36T,40T Port Lifting Container Gantry Cranes,straddle Carrier

US$ 17,500 - 250,000 MOQ: 1 Pair

Key Specifications

Condition:

New

Application:

container loading

Rated Loading Capacity:

36Ton

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application container loading

Rated Loading Capacity 36Ton

Rated Lifting Moment 1.45m

Max. Lifting Load 36ton

Max. Lifting Height 4660mm

Span 4500mm

Place of Origin Shanghai, China

Brand Name GP

Model Number BSJD360T

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

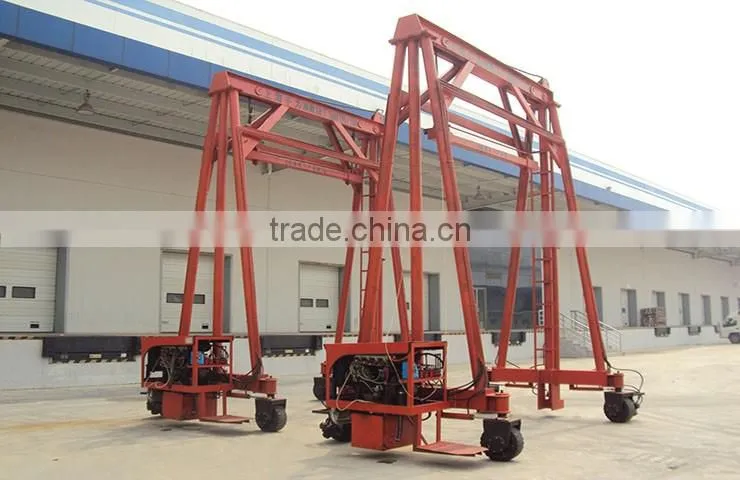

30T,36T,40T port lifting container gantry cranes,straddle carrier

Specifications:

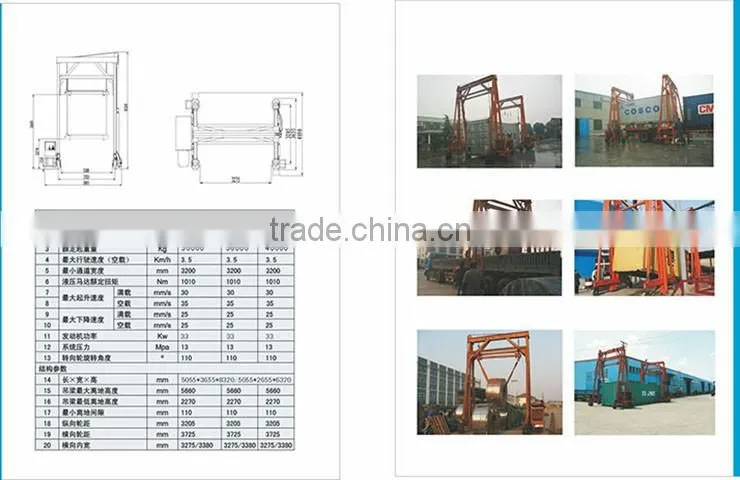

Specifications of mast mobile container crane
Model No.	BSJD300T	BSJD360T	BSJD400T
Load capacity	30 Ton	36 Ton	40 Ton
Max.lifting height	4660mm	4660mm	4660mm
Max.lifting speed	0.065m/s	0.065m/s	0.065m/s
Engine type	Xinchang C490 engine	Xinchang C490 engine	Xinchang C490 engine
Engine power/rotate speed	22KW / 2700r/min	22KW / 2700r/min	22KW / 2700r/min
Max.torque/rotate speed	70.2/1960~2240[Nm/r min]	70.2/1960~2240[Nm/r min]	70.2/1960~2240[Nm/r min]
Max.travel speed	3.5km/h	3.5km/h	3.5km/h
Diameter of lifting cylinder	203mm	203mm	203mm
Pressure of lifting system	10Mpa	10Mpa	10Mpa
Diameter of steering cylinder	75mm	75mm	75mm
Min.turning radius	4500mm	4500mm	4500mm
Pressure of steering system	15Mpa	15Mpa	15Mpa
Torque of hydraulic motor	949Nm	949Nm	949Nm
Rotate speed of hydraulic motor	6~400r/min	6~400r/min	6~400r/min
Diameter of drive wheel	450mm	450mm	450mm
Min.under-clearance	80	80	80
Suitable carriage height	1.45m/1.75m	1.45m/1.75m	1.45m/1.75m
Overall length	4900mm	4900mm	4900mm
Overall width	2500mm	2500mm	2500mm
Overall height	6600mm	6600mm	6600mm
Total weight	7.0 Ton	7.5T	8.0T
