40Ton Mast Mobile Container Crane

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Rated Loading Capacity:

40000kg

Rated Lifting Moment:

1010Nm

Payment & Shipping

Payment Methods:

Port of Shipment:

any China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 40000kg

Rated Lifting Moment 1010Nm

Max. Lifting Height 4660

Place of Origin Shanghai, China

Brand Name GP

Model Number BSJD400

Specifications

suit to loading and unloading: below : 1) standard container 2)tank container ;3)special type material ;4)large steel structure

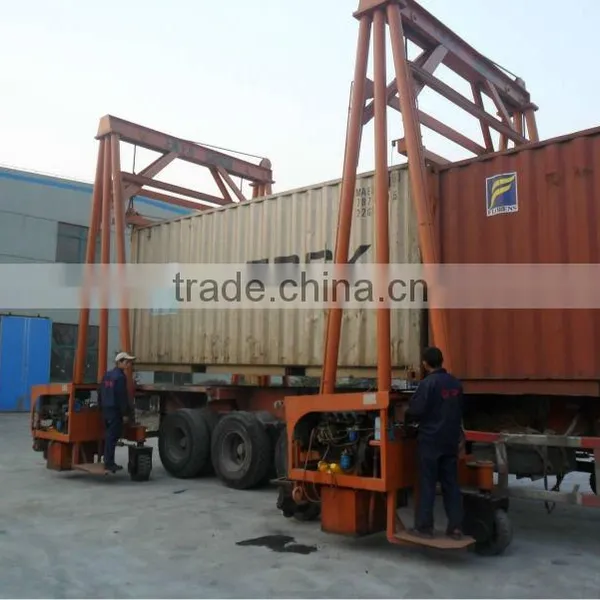

Mast Mobile Container Crane

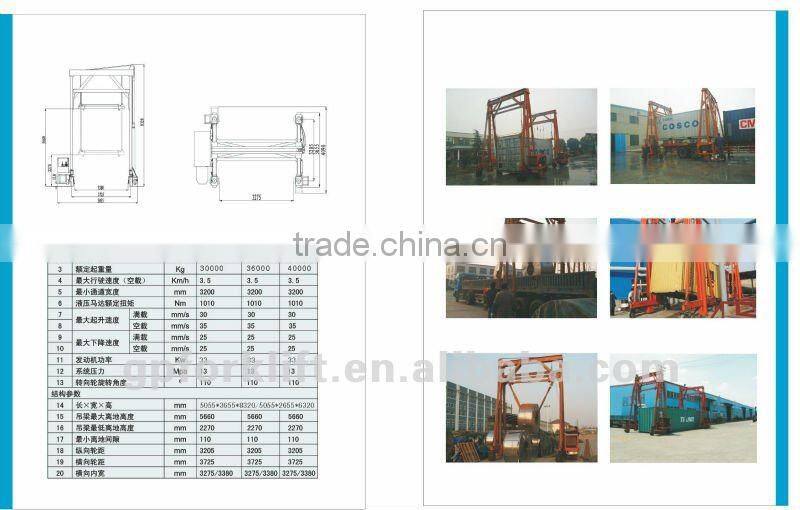

specification
1	model number			BSJD300	BSJD360	BSJD400
2	Total weight		Ton	7	7.5	8
3	rated capacity		Kg	30000	36000	40000
4	max.Steering speed (without load)		Km/h	3.5	3.5	3.5
5	Min.Passageway width		mm	3200	3200	3200
6	rated torque of hydraulic		Nm	1010	1010	1010
7	Max. Lifting speed	with load	mm/s	30	30	30
8	Max. Lifting speed	without load	mm/s	35	35	35
9	Max.falling speed	with load	mm/s	25	25	25
10	Max.falling speed	without load	mm/s	25	25	25
11	engine power		Kw	22	22	22
12	systerm pressure		Mpa	13	15	16
13	rotation angle of turning wheel		O	110	110	110
specification of structure and engine
14	LWH		mm	505526556320
15	Max height of lifting beam		mm	4660	4660	4660
16	Lowest height of lifting beam		mm	2270	2270	2270
17	Min Under-clearance		mm	110	110	110
18	Lengthways tread		mm	2205	2205	2205
19	Crosswise tread		mm	3725	3725	3725
20	Inside width of crosswise		mm	3275/3380	3275/3380	3275/3380
21	engine			Xinchang 490
