Anti-intruder Fence

AIF-03: Anti-intruder fence made by welded wire mesh panels extended a small part on the top.

Anti-intruder welded wire mesh fence is made from zinc coated wire. The height of the welded mesh fence is 2.4 m, if it is not buried, or 2.7 m if it is buried.

If plastic coated mesh panel is used by combing two panels to reach a 2.4 m height, the panels could be 1500 mm and 1050 mm for 75 mm × 25 mm mesh or 1500 mm and 1000 mm for 50 mm × 50 mm mesh.

If plastic coated mesh panel is used by combing two panels to reach a 2.7 m height, the panels could be 1800 mm and 1050 mm for 75 mm × 25 mm mesh or 1800 mm and 1000 mm for 50 mm × 50 mm mesh. Because the panels shall be overlapped horizontally by a minimum of two complete meshes in consideration of a solid structure.

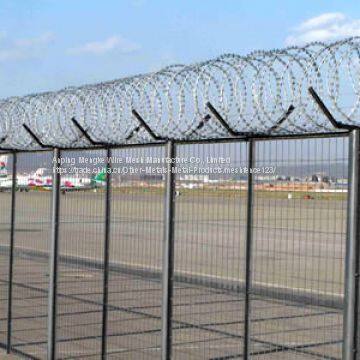

Barbed wire and razor barbed wire fixed to the top edge could be provided on request. Welded mesh fences have four line wires evenly spaced on the panel.

Specification

• Material: mild steel wire.

• Wire coating (conforming to BS EN 10223-6): zinc coated wire, zinc alloy coated wire, plastic coated wire.

• Wire diameter (mm): 3.00.

• Mesh size (mm): 50 mm × 50 mm or 75 mm vertical × 25 mm.

• Fence panel height (m): 2.4, 2.7 (0.3 m buried).

• Panel width: 2000 mm, 2500 mm.

• Colors: green, black, blue, white. All RAL color is available.

• Accessories: steel posts, struts, tie wire, gate, extension arms, barbed wire, base plates, stretcher bars (clamping bars), stainless steel clips, bolts, nuts and washers.

Specification of accessories:

• Line wire diameter (mm): 3.0.

• Stirrup wire diameter (mm): 2.50.

• Tying wire diameter (mm): 1.6.

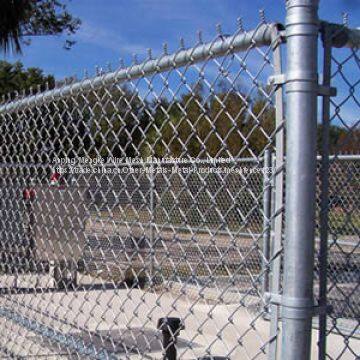

• Post type and specification: same as specified in anti-intruder chain link fence (See table 2).

Features

• High-security protective level: This anti-intruder fence is manufacture for 2.4 m in height and could be equipped with barbed wires.

• Durability: The fence is PVC coated, therefor it could be corrosion resistant when exposed outside.

• Inexpensive: The wire used for making fence is purchased from experienced suppliers, and our manufacture equipment is in a level of state-of-the-art.

Application: This anti-intruder fence is a high-safety level fence, therefor it suits for higher security needed sites, such as: factory, airport, commercial sites, playground, freeway and farm.
