Specifications

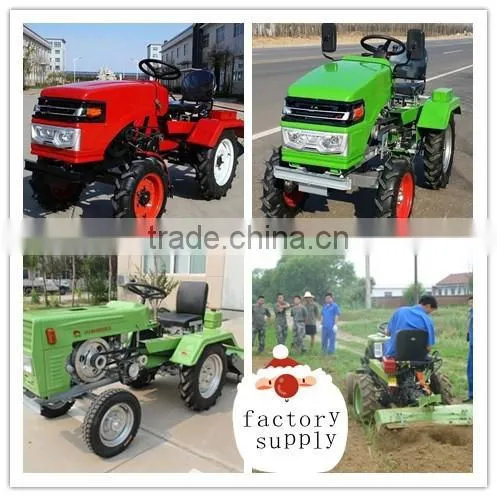

factory supply small tractortop rank quality small tractor
4types hoods

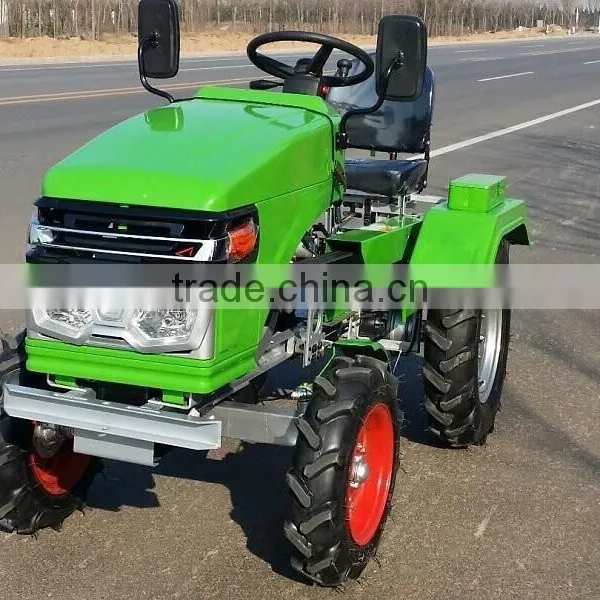

with mirror&hydraulic
skype: first.li1

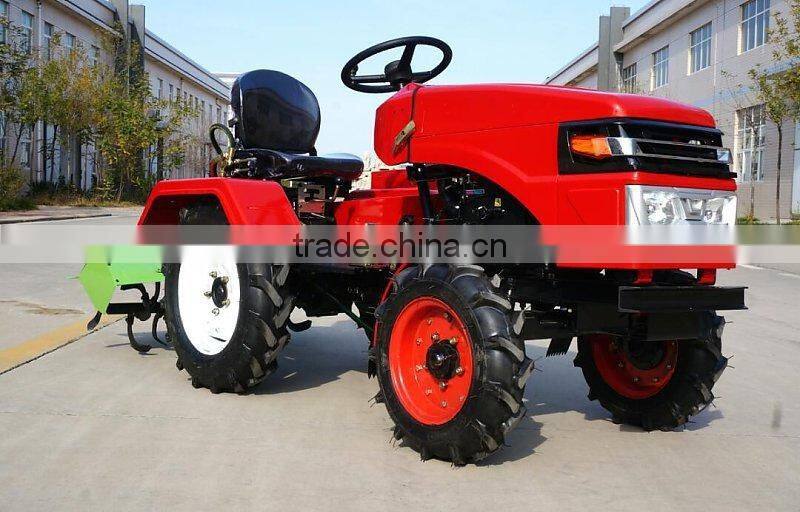

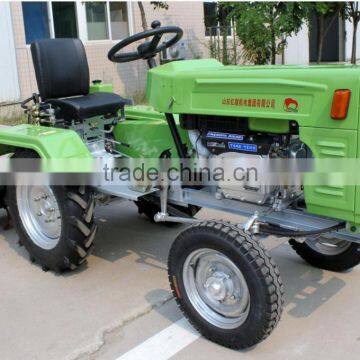

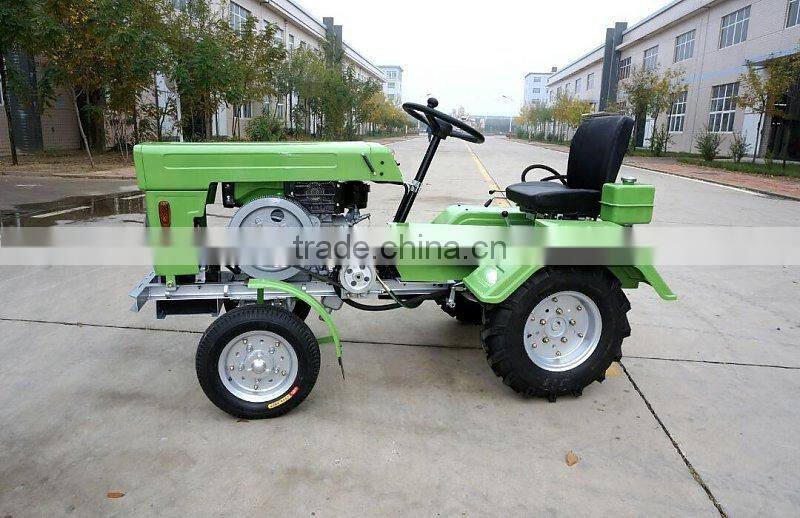

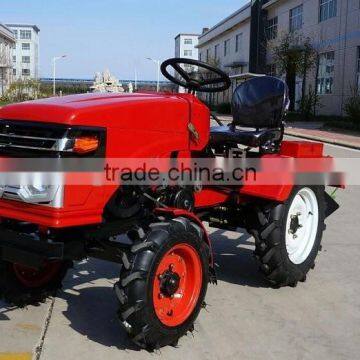

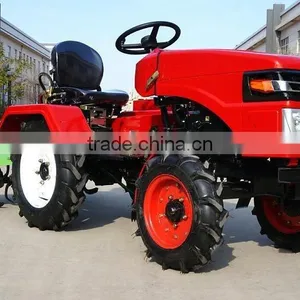

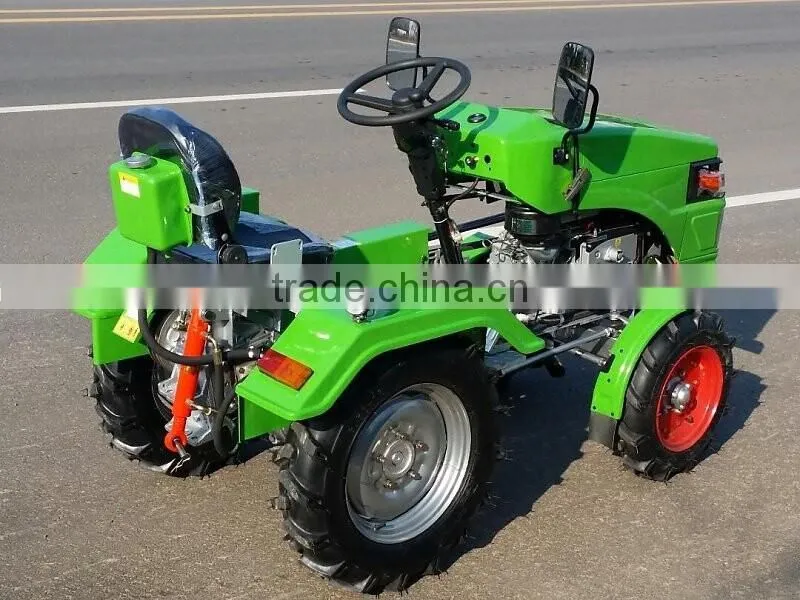

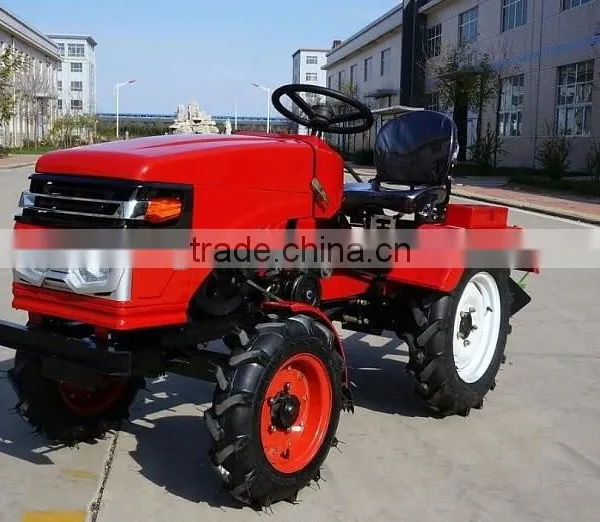

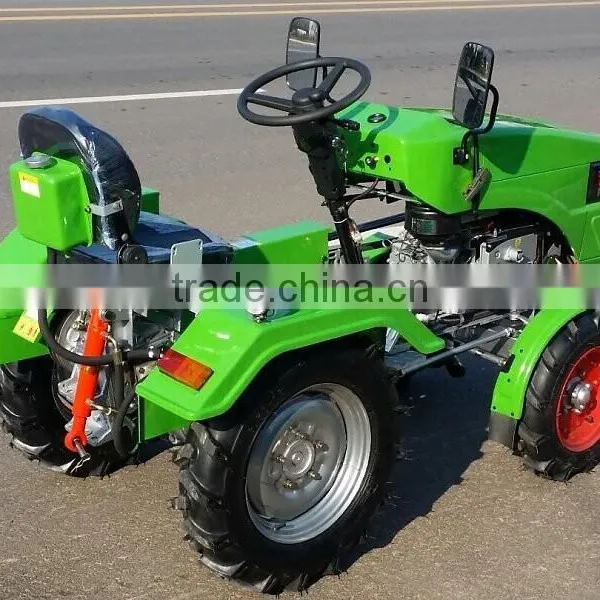

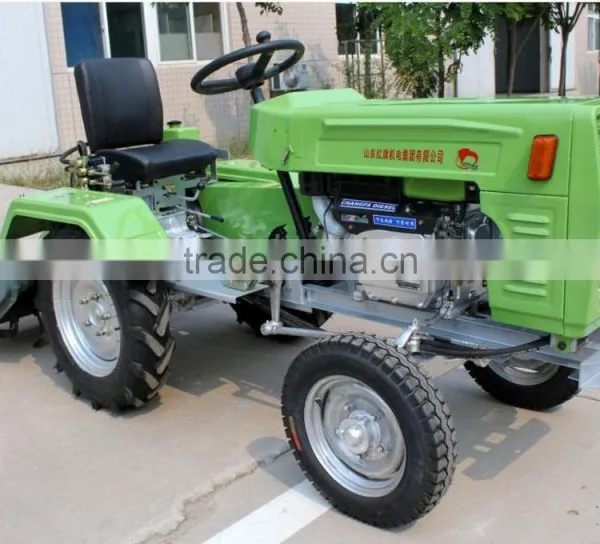

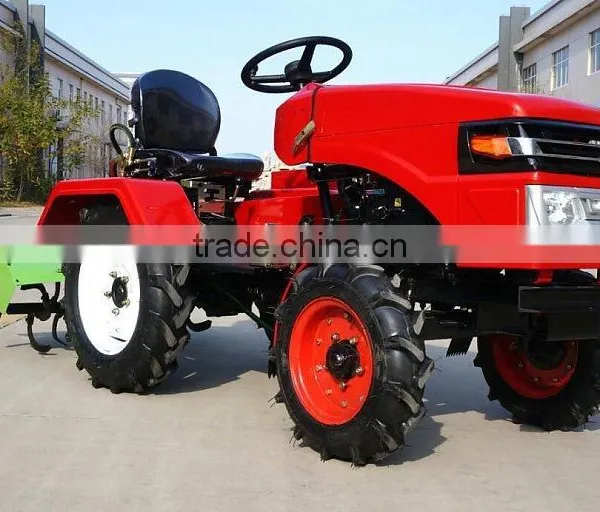

Factory supply top rank quality multi-purpose 15hp mini tractor/ mini tractor price /small tractor

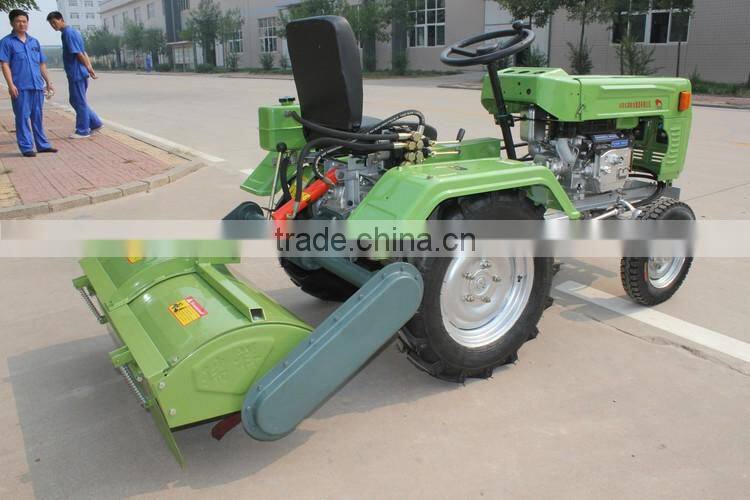

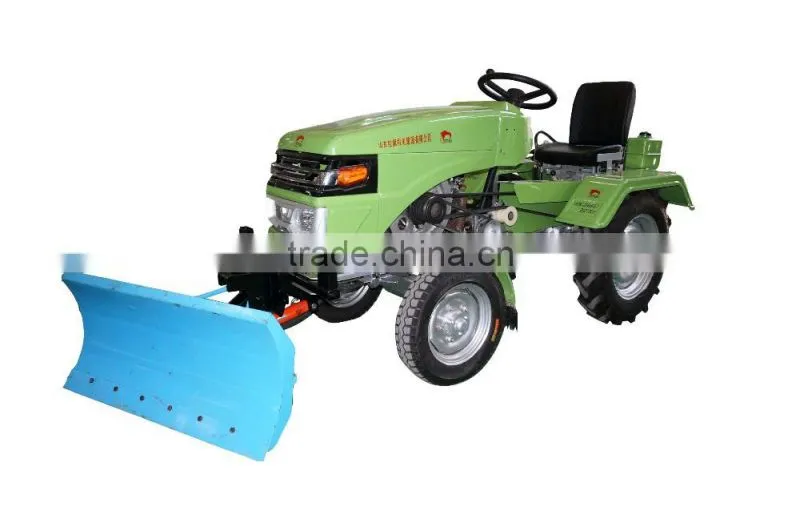

The small tractor is a multi-purpose mini tractor which can be matched with various impllements, it can work in farm land, orchard, greenhouse, garden, mountains and hills.The small tractor is a new generationtractor and has the characteristics of large power, low fuel consumption,more save manpower,more shift gears,good matched performance and convenient operation and maintaince.
Main parameters of small tractor
Gearbox casing:Special steel casting box
Outline dimensions:2200×970×1120
Wheel base (mm):1150mm
Tread:Front wheel:850 Rear wheel:800
Min. ground clearance:210mm
Turning round radius :2m
Structure Weight:542kg
Theoretical speeds(km/h)
Shift |
I |
Ⅱ |
Ⅲ |
Iv |
v |
VI |
RⅠ |
RⅡ |
|
Speed (Km/h) |
2.1 |
3.8 |
5.3 |
8.6 |
13.3 |
21.5 |
1.62 |
6.6 |
Main engine parameters of small tractor
Engine Model |
CF1100 |
Structure |
Single cylinder, Horizontal, Water cooled, Four stroke |
Rated speed r/min |
2200 |
Rated power Kw |
12.13 |
Transmission system of the mini tractor
Clutch |
Dry, Dual action |
Differential type(F/R) |
Closed/Symmetry bevel type |
Brake type |
Hoof type |
Connection method |
B3200 Triangle tape B3200 |
Walking & Steering of small tractor
Front axle |
Integral |
|
Tire Standar |
Front wheel |
4.00-10/4.00-12 |
Rear wheel |
6.00-12/6.5-16 |
|
Steering gear type |
Worm gear type/hourglass worm wheel type |
|
The front wheel toe-in |
6~12 |
|
The front wheel camber |
2°±30′ |
|
Kingpin inclination |
7°±15′ |
|
Reverse caster |
3°±15′ |
|
Hydraulic equipment of small tractor
Structure |
Half the metal |
Oil pump |
Single plunger/gear pump |
Opening pressure of safety valve(Mpa) |
16±0.5 |
Rated hoisting time (s) |
≤3 |
Electrical equipmmet of small tractor
Generator |
Permanent magnet flywheel generators |
14V 350W |
Lamp |
Headlight 12 v / 90 w |
|
Turn signal |
12V/8W |
|
Main filling quantity (L)
The hydraulic oil tank 2.2L
Skype ID: first.li1
Whatspp/viber: 008615762509782
QQ: 2696094913
Phone: 0086-536-2927229
Leave message at any time.
