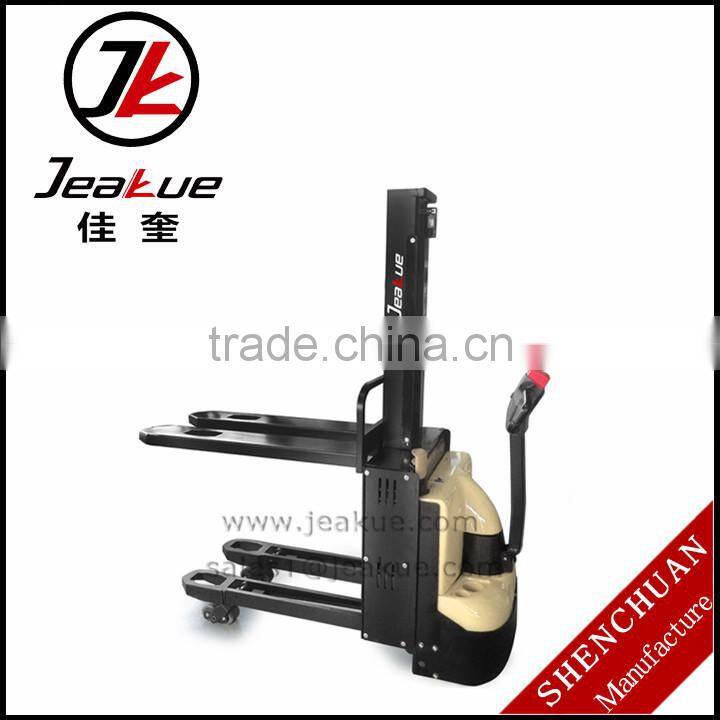

800KG Walkie Double Lift Electric Forklift Truck Stacker

800KG Walkie Double Lift Electric Forklift Truck Stacker thumbnail-1
800KG Walkie Double Lift Electric Forklift Truck Stacker thumbnail-2
800KG Walkie Double Lift Electric Forklift Truck Stacker photo-1

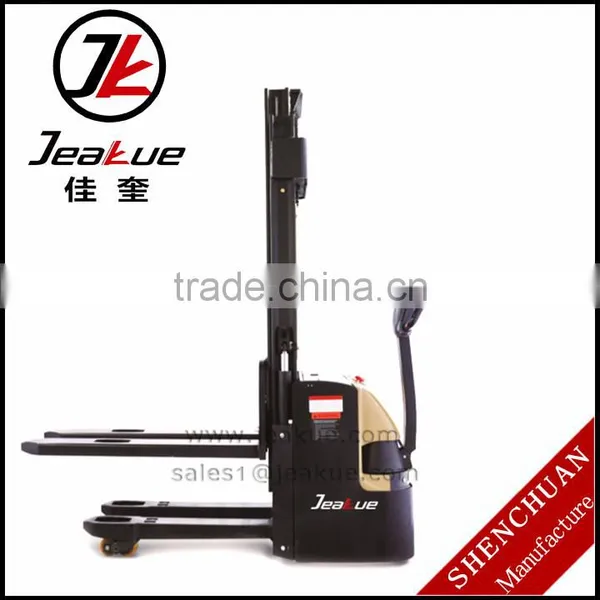

800KG Walkie Double Lift Electric Forklift Truck Stacker photo-2
US$ 1,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
JEAKUE / Electric Pallet Truck
Contact Supplier Request Quote Chat Now
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name JEAKUE / Electric Pallet Truck
Model Number ES08D/ Electric Stacker forklift
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 800kg
Max. Lifting Height 1895mm
Min. Lifting Height 95mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 1860*738/710*1776mm
Certification CE ,ISO9001
After-sales Service Provided Overseas service center available

800KG walkie Double Lift electric forklift truck Stacker




800KG walkie Double Lift electric forklift truck Stacker







800KG walkie Double Lift electric forklift truck Stacker800KG walkie Double Lift electric forklift truck Stacker



Performance

1.Robust Structure;

2.Highly specialized drive and hydraulic system ensure excellent driving performance and high reliability.

3.Low-noise and durable hydraulic unit,high quality cylinder as well as hose ensure high reliability of hydraulic system

4. AMP connector and durable electric wires greatly reduce malfunctions of components.



Safety

1. Safe hydraulic system design prevents mast from falling down abruptly when oil pipeline cuts off.

2. Belly button prevents truck from hitting the operator.

3. By simply pressing emergency disconnector,power supply will be immediately interrupted.

4. Multi lifting limited switch ensures travel safety.

5. Truck automatically switches to low speed mode,when lifting height is higher than setting height.

6. A nti-rolling back braking device ensures trucks don’t roll back on ramps.



Operation

1. Ergonomic tiller head for effortless and comfortable operations.

2. Tiller with long arm for smooth steering

3.Compact chassis design offers smallest turning radius needed.

4. Side operating ensures excellent visibility.

5. On-board Charger.



Maintenance

1. Maintenance free Battery.

2. Battery display indicator with hour meter,reminds operator of charging on time(optional).

3. Easily maintenance.Detach rear panel by loosing only 2 screws for easy access.

4. Self-Diagnostics signal on the digital display allows easy trouble-shooting.

5. Easy Access of hand set.

6. Low-Voltage Cut-off Protection.





Exhibition show





Company Information

Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to

meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.




We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

Shenchuan Heavy Industrial has become one-stop storage and logistics solution leader and the most powerful supplier of material handling integrated systems. We have five divisions: Logistics Systems Division (sub-brand JEAKUE); Engineering Machinery Division (sub-brand JEADE); Agricultural Machinery Division (sub-brands JEATN); Construction Machinery Division (sub-brands JEADA); Mining Machinery Division (sub-brand JEAYO).



We will provide comprehensive and multidimensional supply chain service for global customers

with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
