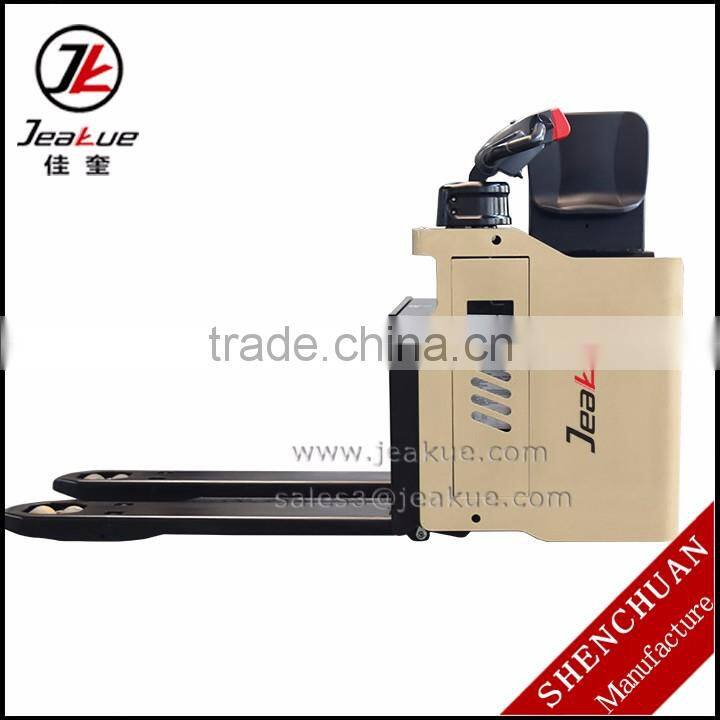

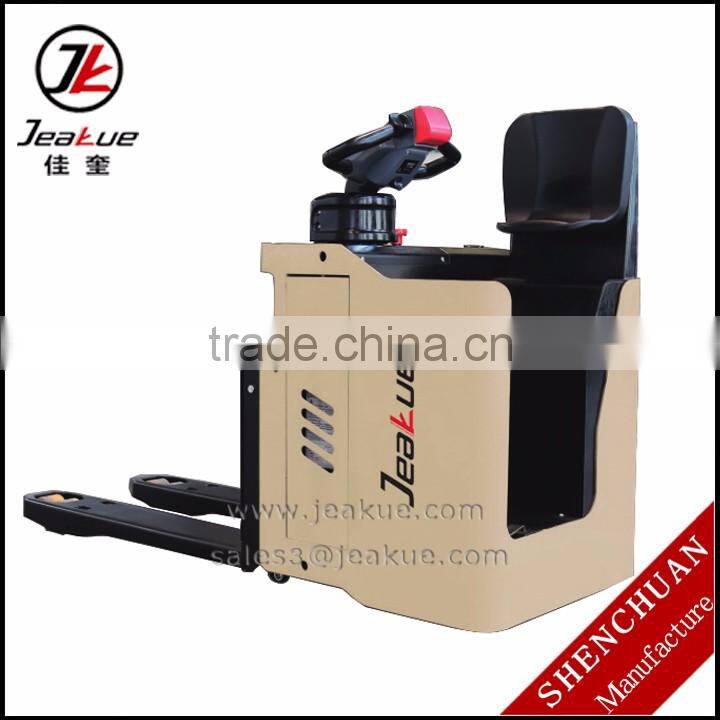

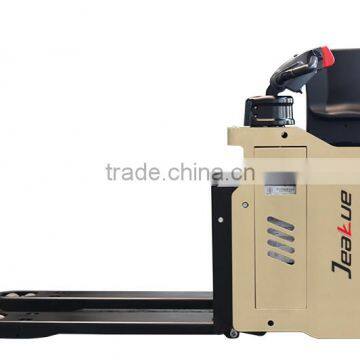

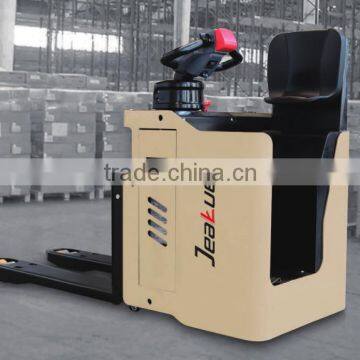

New design Small 2 Ton Full Electric pallet Truck
1. Ideal Option for Heavy Duty Long Distance Material Handling Tasks;
2. Driving Wheel Pressure Auto-compensation Patent Design Makes Operation Comfortable &Smooth;
3. Dual-Monitoring Electric Steering Offers Safer and Simpler Operations.
4. Driving Speed up to 12KM/H Greatly Improves the Efficiency of Long-distance Job.
Performance
The innovative AC system offers strong power,accurate control and excellent performance.
High strength vertical gearbox provides reliable uptime.
Low-noise and durable hydraulic unit,high quality cylinder as well as hose ensure the high reliability of hydraulic system.
AMP connecter and durable electric wires greatly reduce malfunctions of components.
One-time formed fork,box type frame and adjustable linkage extends the life of undercarriage.
Innovative Drive floating operation system(DFA) ensures the stability of the truck when steering at high speed.
Safety
Two travel speed improves operator safety,with half speed when protection arm off and full speed when protection arm on.
Emergency reverse belly button protects the operator from getting hurt.
Emergency disconnector will cut off power source to avoid accident when truck goes out of control.
Anti-rolling back brake keeps the truck from skidding down when truck is out of control or travelling on ramp.
Dual-monitoring power steering,the top safety design(electric steering).
Operation
With the new design of ergonomical tiller head,all buttons can be reached conveniently&comfortably.
Foldable platform reduces vibration which make operator comfortable when driving .
Unique suspension driving floating system(DFA) design,make the operation easy and comfortable.
When platform is folded,truck can work at low speed in smaller space.
Ergonomical armrest guarantees easy operation & good resistance.
Electric power steering,smooth & comfortable (EPS).
Maintenance
AC traction motor,maintenance free.
Hour meter and battery indicator remind the operator of battery charging.
Easily remove the back cover by only loosing four bolts;Access to all key components for inspection,maintenance and replacement.
Easy access for battery maintenance.
Vertical motor makes the inspection &service much more convenient.
Control system allows easy trouble-shooting.
Low voltage lift cut off design protects batteries.
| characteristic | |||
| 1.1 | Model | EP20 | |
| 1.2 | Power type | Electric | |
| 1.3 | The type of operation | / | |
| 1.4 | Load capacity | Q (kg) | 2000 |
| 1.5 | Load center | c (mm) | 600 |
| 1.6 | Bearing length | x (mm) | 946 |
| 1.7 | Wheelbase | y (mm) | 1520 |
| Weight | |||
| 2.1 | Servive weight (with battary) | kg | 574 |
| 2.2 | Axle load, full load drive / load end | kg | 826/1709 |
| 2.3 | Axle load, no-load drive end / load end | kg | 438/126 |
| Tires, chassis | |||
| 3.1 | Tire type, drive wheel / carrier wheel | Polyurethane / Polyurethane | |
| 3.2 | Drive wheel size (diameter × width) | mm | Φ230*75 |
| 3.3 | load wheel size (diameter × width) | mm | 2xΦ85*70 |
| 3.4 | balance wheel size (diameter × width) | mm | Φ130*55 |
| 3.5 | Drive wheel, balance wheel / load wheel (x = drive wheel) | mm | 1*+1/4 |
| 3.6 | Front track, drive side | b10 (mm) | 396 |
| 3.7 | Rear track, drive side | b11 (mm) | 368/428/513 |
| Dimension | |||
| 4.4 | Maximum lifting height | h3 (mm) | 120 |
| 4.6 | The height of the mast at the highest lift | h4 (mm) | 3465 |
| 4.10 | Operating Position Lever Handle Lever Min / Max Height | h8 (mm) | 1070/1400 |
| 4.15 | Fork height after fork lowered | h13 (mm) | 85 |
| 4.19 | Overall lendth | l1 (mm) | 1937 |
| 4.20 | The length to the fork vertical plane | l2 (mm) | 787 |
| 4.21 | Overall width | b1/b2(mm) | 730 |
| 4.22 | Fork size | s/ e/ l (mm) | 55/170/1150 |
| 4.25 | Outside width of fork | b5 (mm) | 540/600/685 |
| 4.31 | Ground clearance at the center of the wheelbase | m1 (mm) | 35 |
| 4.34.1 | The width of the Aisle side is 1,200 mm width * 1,000 mm length | Ast (mm) | 2010 |
| 4.34.2 | The width of the Aisle side is 800 mm width * 1,200 mm length | Ast (mm) | 2210 |
| 4.35 | Turning radius | Wa (mm) | 1700 |
| Performance parameters | |||
| 5.1 | Travel speed Full load/without load | km/ h | 5.5/6 |
| 5.2 | Lifting speed Full load/without load | m/ s | 0.023/0.030 |
| 5.3 | Descent speed Full load/without load | m/ s | 0.032/0.029 |
| 5.4 | Max. Gradeability Full load/without load | % | 8/16 |
| 5.5 | Brake type | Electromagnetic brake | |
| Motor, power source | |||
| 6.1 | Drive motor rated power S2 60 minutes | kW | 1.27 |
| 6.2 | Lifting motor Rated power S3 15% | kW | 0.84 |
| 6.3 | Maximum permissible battery size | mm | 650/200/570 |
| 6.4 | Battery voltage / nominal capacity K5 | V/Ah | 24/210 |
| 6.5 | Battery Weight | kg | 155 |
| Other data | |||
| 8.1 | Drive control type | AC | |
| 10.5 | Steering type | mechanical | |
| 10.7 | Noise level | 74 | |
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
