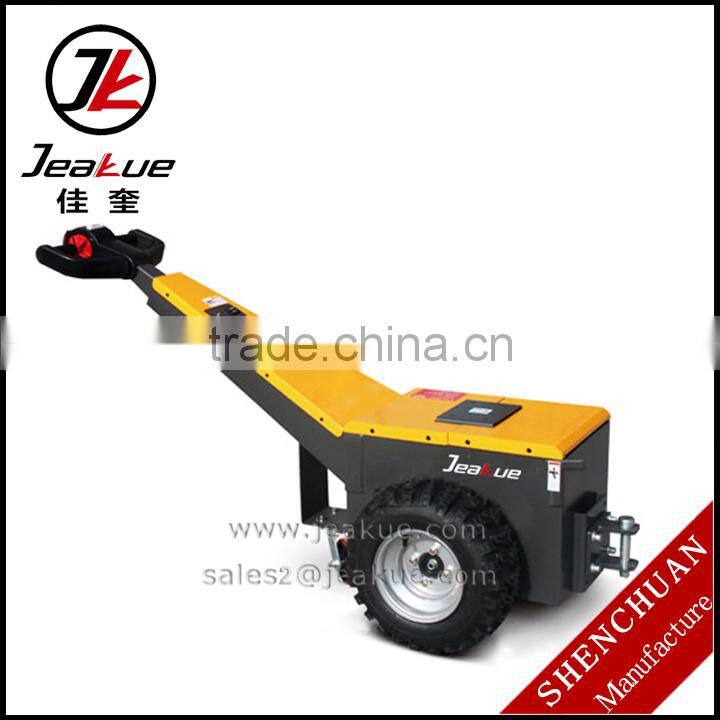

CE ISO High Quality Cheap Price 1500kg Walker Electric Tow Tractor
Brief introduction
Item No. | JK8163 | |
Driving mode |
| Electric |
Operating type |
| Walking type |
Tracting weight | Kg | 1500 |
Rated tracting force | N | 300 |

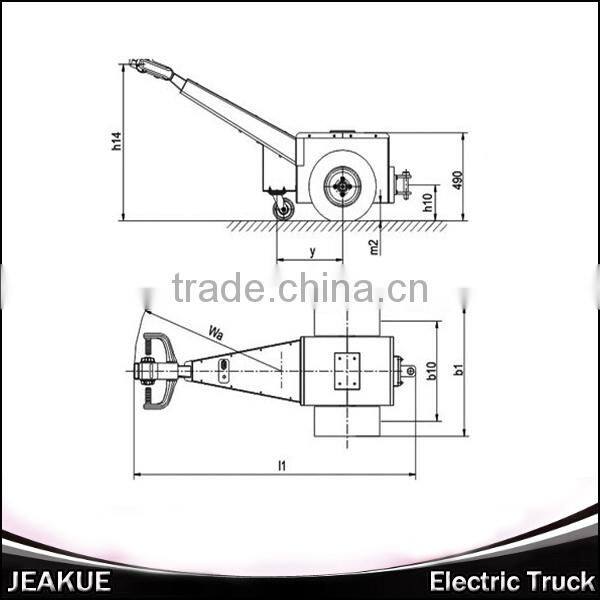

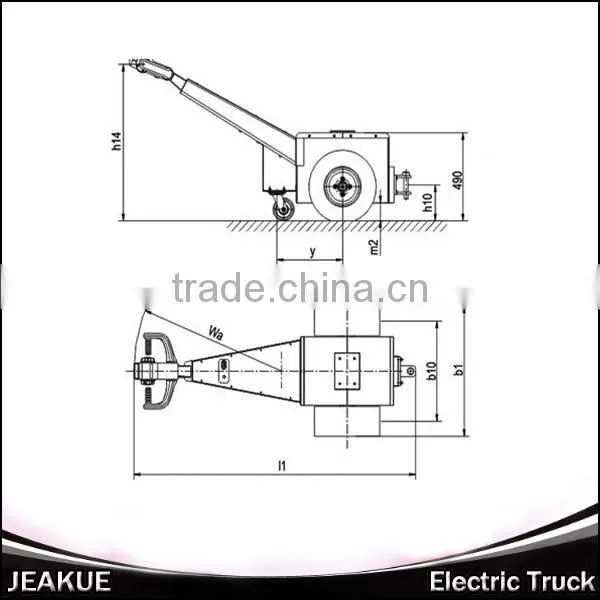

Wheel base(y) | mm | 395 |
Dead weight(including bttery) | kg | 150 |
Front/back axle when loading and un loading | kg | 107/43 |
Wheels |
| Rubber, polyurethane |
Wheels size(front wheels) |
| 16×6.5-8.00( choose from air inflation and solid) |
Wheels size(back wheels) |
| 5″(8″and 10″are also avaiable) |
Qty of front and back wheels (x=driving wheel) |
| X2/1 |
Tread of front wheels(b10) | mm | 557 |
Tread of back wheels | mm | 0 |
Height of operating handle(h14) | mm | 890 |
Whole length(l1) | mm | 1695 |
Width of whole body(b1) | mm | 722 |
Interval from wheel base center to ground | mm | 100 |
Turning radius(Wa) | mm | 1290 |
Running speed(load/noload) | Km/h | 4.8/5.5 |
Tracting force(load/noload) | N | 300 |
Max tracting force | N | 1000 |
Service braking |
| Electric braking |
Driving control type |
| MOSFET |
Noise level around ear of operator accords with DIN12053 | dB(A) | 70 |
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.
We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.—————————————————————————————————————————————————
