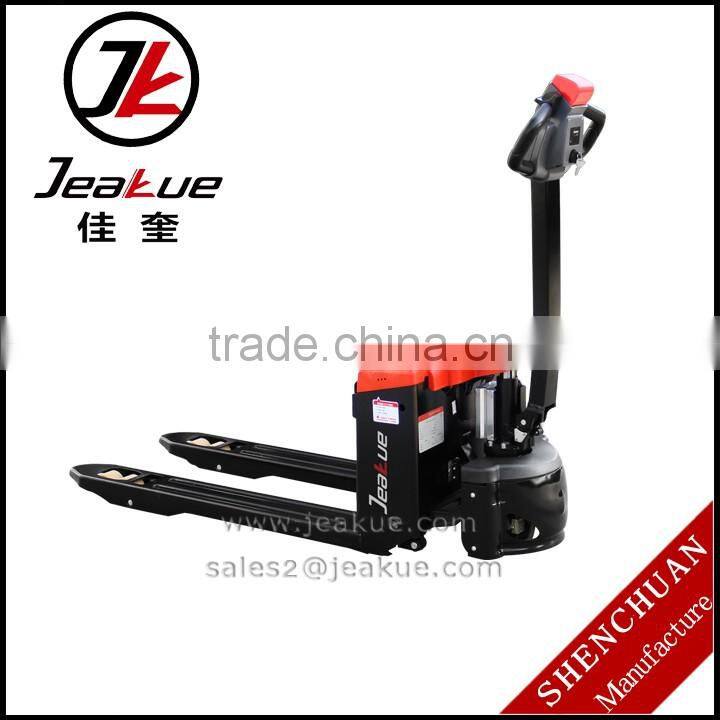

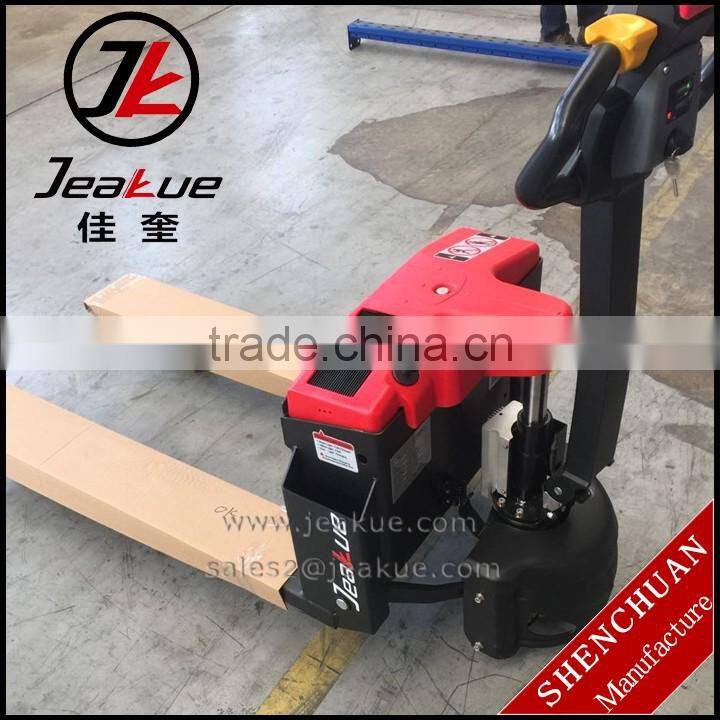

2017 High Quality 1.5T Walkie type Electric Pallet Truck
Patented Design:
Ergonomic tiller bounded with key switch, BDI and trouble-shooting indicator enhances easy and accurate operation.
External Control System:
Patent designed external control system not only protects controller in place but also provides easy access for maintenance.
Optimized Harness Layout:
Optimized wire hardness layout lowers twist failure rate.
Front Detachable Battery Cover:
Innovative Design, Easy for battery replacement.
Emergency Switch:
Upgraded emergency switch ensures safety.
Cover for Driving Wheel:
Strong cover for driving wheel ensures the safety of the operator.

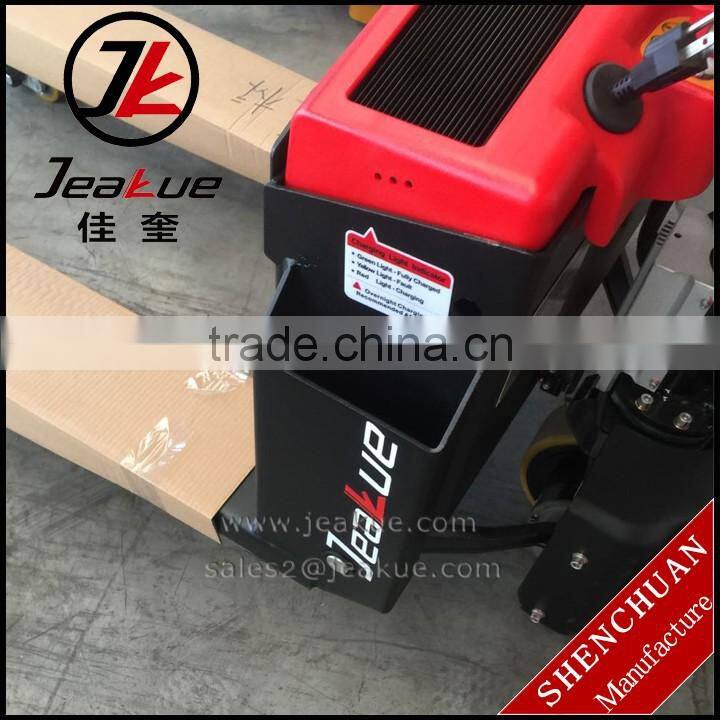

Charger:
Upper-installed Charger, Better Heat-Exhausting, Higher Charging Efficiency.
| Distinguishing Mark | |||
| 1.1 | Manufacturer | Jeakue | |
| 1.2 | Model designation | EP15 | |
| 1.3 | Drive Unit | Electrics | |
| 1.4 | Operator type | Pedestrian | |
| 1.5 | Rated capacity | kg | 1500 |
| 1.6 | Load center distance | mm | 600 |
| 1.8 | Load distance | mm | 889/946 |
| 1.9 | Wheelbase | mm | 1261/1205 |
| Weight | |||
| 2.1 | Service weight (include battery) | kg | 195 |
| 2.2 | Axle loading, laden driving side/loading side | kg | 565/1130 |
| 2.3 | Axle loading, unladen drving side/loading side | kg | 155/40 |
| Types, Chassis | |||
| 3.1 | Tyre type driving wheels/loading wheels | PU/PU | |
| 3.2 | Tyre size, driving wheels (diameter x width) | mm | Φ210x70 |
| 3.3 | Tyre size, loading wheels (diameter x width) | mm | 2xΦ78x60 (Φ78x88) |
| 3.4 | Tyre size, caster wheels (diameter x width) | mm | / |
| 3.5 | Wheels, number driving, caster/loading (x=drive wheels) | mm | 1x /4(1x/2) |
| 3.6 | Track width, front, drving side | mm | / |
| 3.7 | Track width, rear, loading side | mm | 410 (535) |
| Dimensions | |||
| 4.4 | Lift height | mm | 115 |
| 4.9 | Height drawbar in driving position min./max. | mm | 790/1225 |
| 4.15 | Lowered height | mm | 80 |
| 4.19 | Overall length | mm | 1638 |
| 4.2 | Length to face of forks | mm | 488 |
| 4.21 | Overall width | mm | 568 (685) |
| 4.22 | Fork Dimensions | mm | 50/150/1150 |
| 4.25 | Distance between fork-arms | mm | 560 (685) |
| 4.32 | Ground clearance, center of wheelbase | mm | 30 |
| 4.34.1 | Aisle width for pallets 1000x1200 crossways | mm | 1739 |
| 4.34.2 | Aisle width for pallets 800x1200 lengthways | mm | 1939 |
| 4.35 | Turning radius | mm | 1485 |
| Performance data | |||
| 5.1 | Travel speed, laden/unladen | km/h | 4/4.5 |
| 5.2 | Lifting speed, laden/unladen | m/s | 0.029/0.038 |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.046/0.033 |
| 5.8 | Max. radeability, laden/unladen | 2/6 | |
| 5.10 | Service brake type | Electromagnetic | |
| Electric-engine | |||
| 6.1 | Drive motor rating S2 60 min | kW | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.84 |
| 6.3 | The maximum allowed size battery | mm | |
| 6.4 | Battery voltage/nominal capacity K20 | 24/65 | |
| 6.5 | Battery weight | kg | 22.5x2 |
| Addition data | |||
| 8.1 | Type of drive control | DC | |
| 10.5 | Steering type | Mechanical | |
| 10.7 | Sound pressure level at the driver's ear | dB (A) | 74 |
| Option | |||
| Fork length | 800/915/1000/1070/1100/1300/1400 mm | ||
| Fork width | 520/600mm | ||
| Single load wheel | / | ||
| Driving wheel | PU wheel with Pattern | ||
| Battery capacity | 85Ah | ||
| Backrest height | 1220 mm (48in)/ 1520 (60in) | ||
| 1. The parameters in the table are of the standard model. For more information, please contact us. | |||
| 2. The parameters are subject to change without notice. | |||
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.
Shenchuan Heavy Industrial has become one-stop storage and logistics solution leader and the most powerful supplier of material handling integrated systems. We have five divisions: Logistics Systems Division (sub-brand JEAKUE); Engineering Machinery Division (sub-brand JEADE); Agricultural Machinery Division (sub-brands JEATN); Construction Machinery Division (sub-brands JEADA); Mining Machinery Division (sub-brand JEAYO).
We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
