Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 2015 New 800kg Ecomomical Pedal Hydraulic Lift Table

2015 New 800kg Ecomomical Pedal Hydraulic Lift Table

2015 New 800kg Ecomomical Pedal Hydraulic Lift Table photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
JEAKUE
Model Number:
JF-ESJ08
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name JEAKUE
Model Number JF-ESJ08
Lift Mechanism Scissor Lift
Lift Drive / Actuation Electric Motor
Rated Loading Capacity 200to800kg lift table
Min. Lifting Height 265 to 442mm lift table
Max. Lifting Height 755 to 1500mm lift table
Table Size 920*520mm lift table
Weight 44-125 Kg Hydraulic lift table
Certification CE Hydraulic lift table
Warranty one year Hydraulic lift table
After-sales Service Provided Engineers available to service machinery overseas

2015 New 800kg Ecomomical Pedal Hydraulic lift table







800kg Ecomomical Pedal Hydraulic lift table







Features:

1.Economic range but reliable.
2. New design to meet norm EN1570:1999.
3.New hydraulic system increases safety and protects your goods, topless rate of lowering system remains irrespective of the weight of the load.

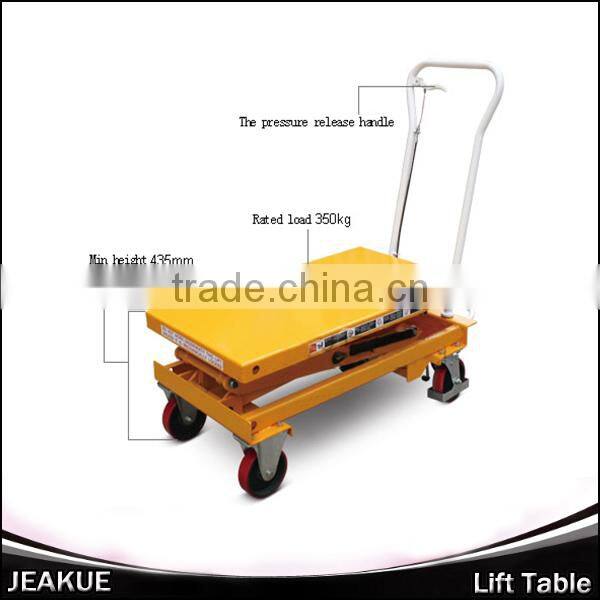

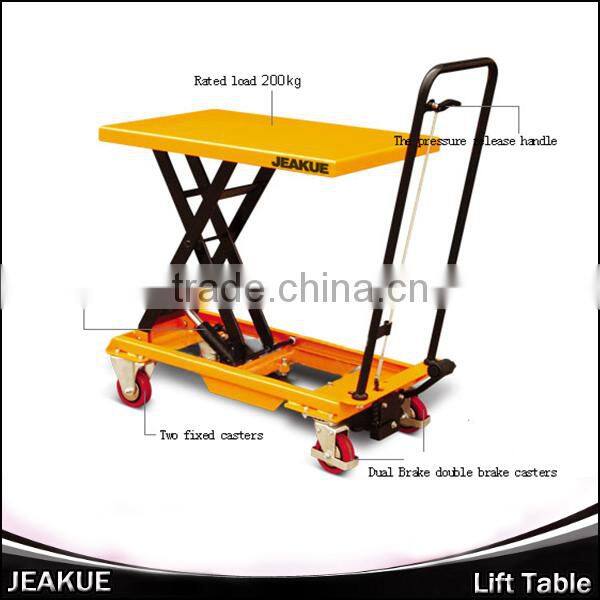

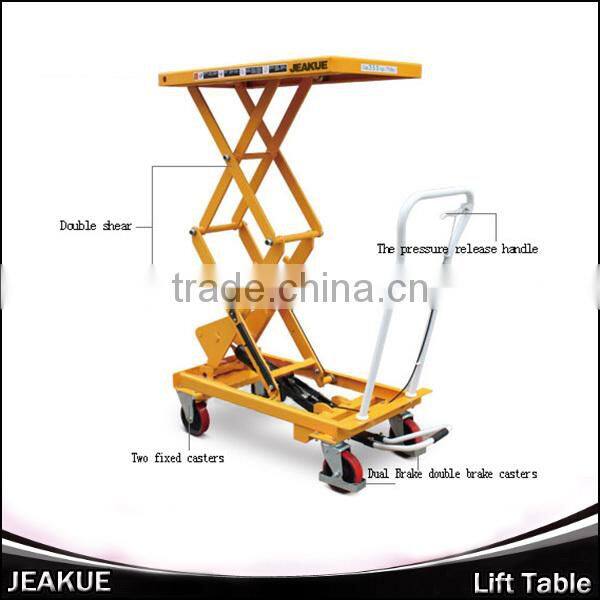

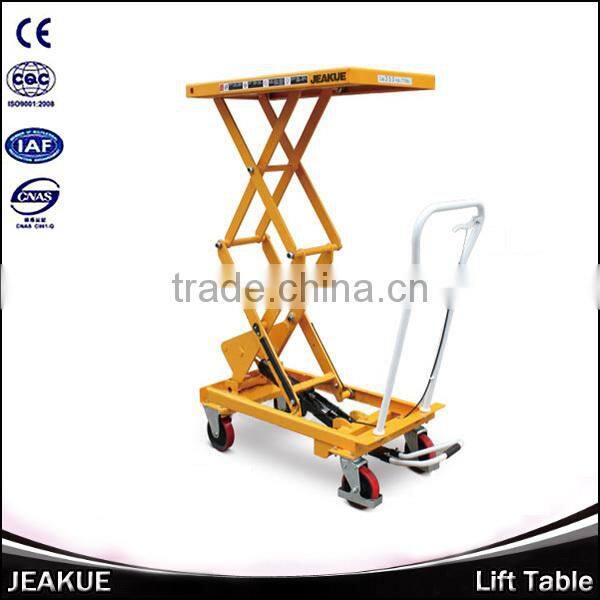

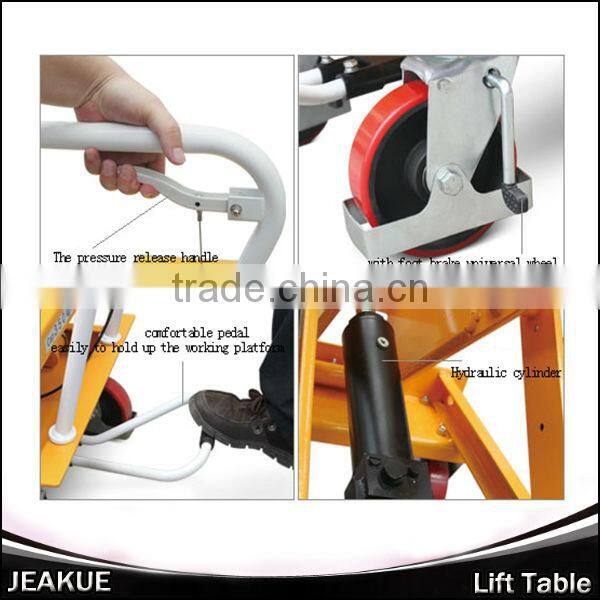

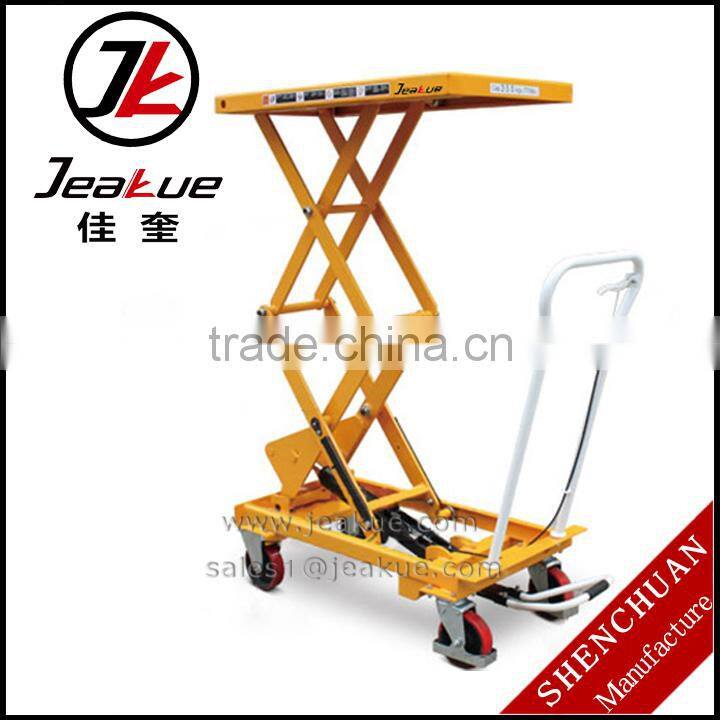

Products Show:

2015 New 800kg Ecomomical Pedal Hydraulic lift table

2015 New 800kg Ecomomical Pedal Hydraulic lift table2015 New 800kg Ecomomical Pedal Hydraulic lift table2015 New 800kg Ecomomical Pedal Hydraulic lift table2015 New 800kg Ecomomical Pedal Hydraulic lift table2015 New 800kg Ecomomical Pedal Hydraulic lift table





Specification:

ModelJK 8714JK8715JK8716JK8718JK8719
TypeSingle shear forkDouble shear fork
Capacitykg200300500800350
Table Size( L×W)mm700×450852×502852×502920×520920×520
Min.Table Heightmm265330390442435
Max.Table Heightmm75591091010001500
Handle Heightmm9801100110011301130
Overall Size(L×W)mm870×4501050×5021050×5021170×5201170×520
Foot Pedal to Max. Height ≤25≤30≤40≤70≤70
Net Weightkg447481114125



Exhibition show

 2015 New 800kg Ecomomical Pedal Hydraulic lift table2015 New 800kg Ecomomical Pedal Hydraulic lift table





   electric platform cart    electric battery powered wheelchair       vertical platform lift       low ceiling car lift
power wheelchair battery       electric motor with hydraulic pump     lab jack         levelling feet

Company Information



Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

Shenchuan Heavy Industrial has become one-stop storage and logistics solution leader and the most powerful supplier of material handling integrated systems. We have five divisions: Logistics Systems Division (sub-brand JEAKUE); Engineering Machinery Division (sub-brand JEADE); Agricultural Machinery Division (sub-brands JEATN); Construction Machinery Division (sub-brands JEADA); Mining Machinery Division (sub-brand JEAYO).

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
