High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table

High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table photo-1

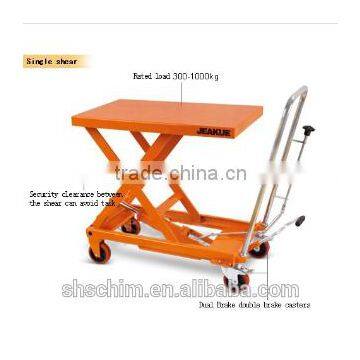

High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table photo-2

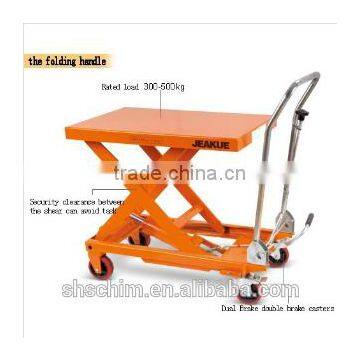

High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table photo-3
US$ 4,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
JEAKUE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port or as your requirs
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Anhui, China
Brand Name JEAKUE
Model Number JA-HP50
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 200kg
Max. Lifting Height 950-1618mm
Min. Lifting Height 450-510mm
Overall Dimensions 1390x800mm
Certification CE,ISO,CQC,IAF,CANS, CE,CQC,ISO9001,UL
After-sales Service Provided Overseas service center available

High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table





300/1000kg Standard Double Scissors Hydraulic Motorcycle Electric Lift Table Adjustable Massage







300/1000kg Standard Double Scissors Hydraulic Motorcycle Electric Lift Table Adjustable Massage Details:



1.Easily lift and lower cargo with uniform and stable speed;

2.Light weight but steady structure;

3.Two brakes on driving wheel enhance security;



High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table



4.Adopt jamming-proof scissor design;

5.Complying with European EN1570:1999 standard;

6.European original pump station DC700W;

7.High-quality 75Ah/12V battery, with an auto charger.





Warning !

In order to protect the power supply, continuous running time should less than30s(around 2 working shifts). It is better to start running again after 3 minutes.



1.Easily lift and lower cargo with uniform and stable speed;

2.Light weight but steady structure

3.Two brakes on driving wheel enhance security

4.Adopt jamming-proof scissor design

5.Complying with European EN1570:1999 standard

6.European original pump station DC700W

7.High-quality 75Ah/12V battery, with an auto charger



ModelTypeRated loadTable height (min/max)Table sizeOverall sizeLift/lower timeWheel Dia.Handle heightNet weight
  kgmmmmmmsMmmmkg
JK8759Single scissor (standard)300450/9501010×5201185×52015/151501185140
JK8760500450/9501010×5201185×52015/151501185148
JK8761750450/9501010×5201260×52015/151501185154
JK87621000480/9501010×5201260×52015/151501185169
JK8763Doule scissors300495/16001010×5201260×52015/151501185183
JK8764500495/16181010×5201260×52015/151501185198
JK8765800510/14601010×5201260×52015/151501185176
JK8766Large table500440/11501525×6201780×62015/151501185215
JK8767500430/12201200×8001390×80015/151501185220
JK87681000430/12201200×8001390×80015/151501185225







High Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift TableHigh Quality 1T Double Scissors Hydraulic Motorcycle Electric Lift Table
