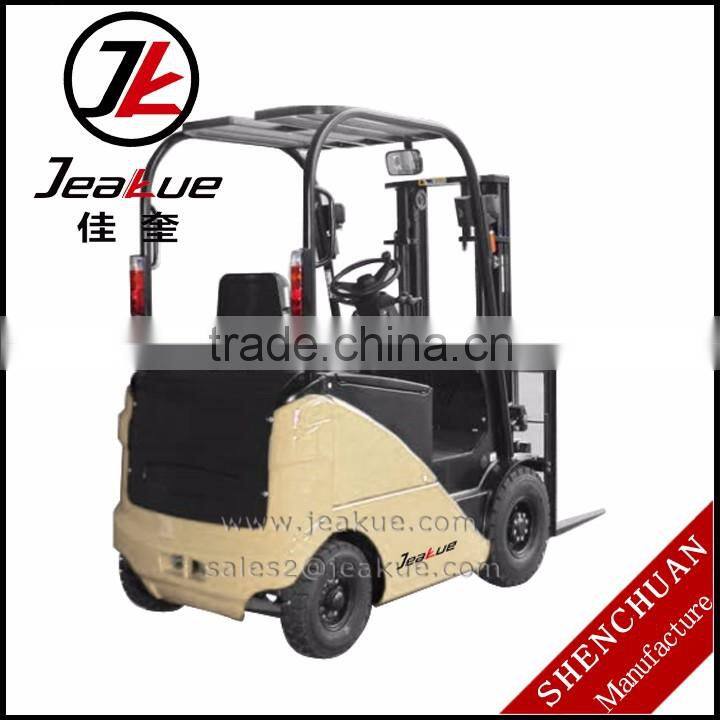

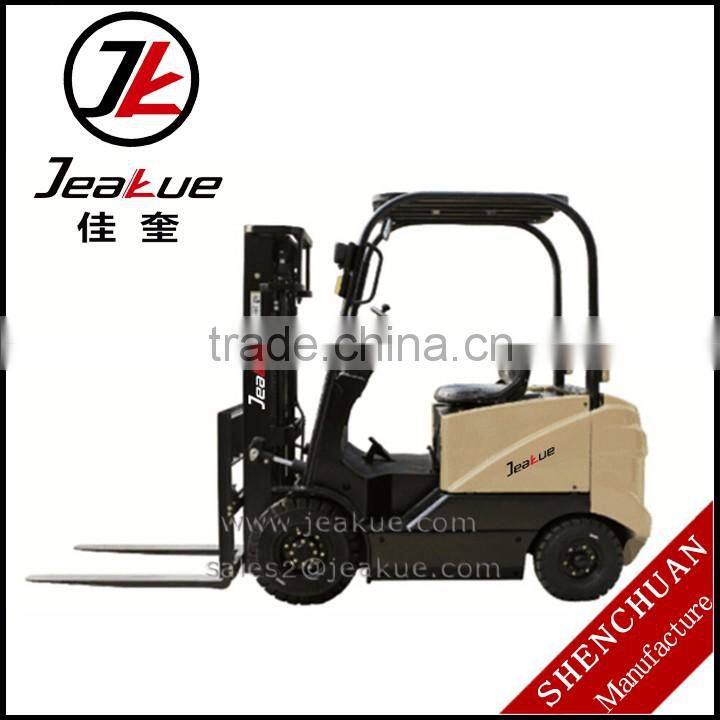

China top one 1.5T-2T Four Wheels Counterbalance
Electric Forklift
Safety
1. Emergency stop switch assembly, when emergency press it
2. Stronger top shelf
3. The low battery protection function.when the battery voltage lower than the min battery voltage (20%),the speed will reduce,lift will be impossible.
4. Lifting overload protection.Mast Explosion-proof structure design.Improve the vehicle safety. When the pipe burst blowout still can prevent falling fast mast frame, to ensure safety
Maintenance
1. AC traction motor, maintenance free. Performance is more reliable.
2. AC motor adopt external type encoder. Maintenance Conveniently.
3. Hour meter displays fault code.Greatly facilitate maintenance.
4. Open the side panel can be test maintenance control system
Characteristic Configuration
1. Regenerative brake,Slope slip resistance.AC controller.Guaranteed the driving safety.
2. Low-noise gear pump.
3. Larger armrest for up and down low position pedal.Given the adequate consideration in humanity demands.
4.Efficient maintenance-free AC motor, large torque, large traction, strong power, to ensure that the car still can smooth the uneven road, at the same time, ensure the battery a longer service life
5. Smart meters can display the battery and Use time error code etc.
Import AMP connectors waterproof and dustproof
6. Can increase the steering pressure sensor, the pump motor when to need to work again, more energy efficient

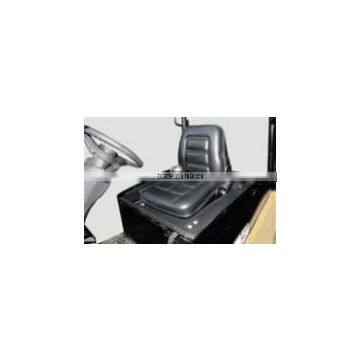

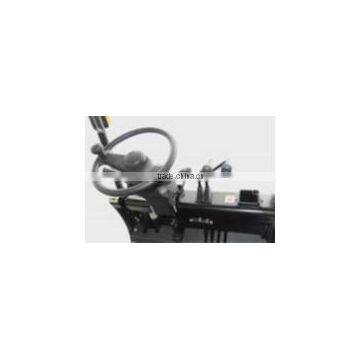

7. The steering wheel is adjustable, Drive space is large, Braking accelerator pedal to optimize configuration, Innovative design new instrument, Comfortable manipulation.The gearbox drive axle,double gearbox,double working motor driving.Adopting safe and comfortable seat, the increased use of driver comfort
| Characteristic | ||||
| 1.3 | Drive Type | Electric | Electric | |
| 1.4 | Operator type | Seated | Seated | |
| 1.5 | Rated capacity | t | 1.5 | 2 |
| 1.6 | Load center distance | mm | 500 | 500 |
| 1.8 | Front tread | mm | 413 | 435 |
| 1.9 | Wheelbase | mm | 1410 | 1410 |
| Weight | ||||
| 2.1 | Service weight (include battery) | kg | 2670 | 3250 |
| 2.2 | Axle loading, laden driving side/loading side | kg | 3720/450 | 4690/560 |
| 2.3 | Axle loading, unladen drving side/loading side | kg | 1230/1440 | 1290/1960 |
| Type, Chassis | ||||
| 3.1 | Tyre type driving wheels/steering wheels | pneumatic-tyre | pneumatic-tyre /solid tyre | |
| 3.2 | Tyre size, driving wheels (diameter x width) | mm | 6.5-10-10PR | 6.5-10-10PR |
| 3.3 | Tyre size, steering wheels (diameter x width) | mm | 5.00-8-10PR | 5.00-8-10PR |
| 3.5 | driving wheels.steering wheels Qty(X=driving wheels) | mm | 2x/2 | 2x/2 |
| 3.6 | Track width, driving side | mm | 890 | 890 |
| 3.7 | Track width, steering side | mm | 920 | 920 |
| Dimensions | ||||
| 4.1 | Mast Tilt Angel | 6/10 | 6/10 | |
| 4.2 | Height, mast lowered | mm | 2170 | 2170 |
| 4.3 | Free lift | mm | 135 | 135 |
| 4.4 | Height, mast extended | mm | 3000 | 3000 |
| 4.5 | Max.Lift mast height | mm | 3955 | 3955 |
| 4.7 | Overhead guard height | mm | 2170 | 2170 |
| 4.8 | Backseat height | mm | 1160 | 1160 |
| 4.12 | Traction pin center height | mm | 335 | 335 |
| 4.19 | Overall length | mm | 2995 | 2995 |
| 4.20 | Length to face of forks | mm | 2075 | 2075 |
| 4.21 | Overall width | mm | 1080/1070 | 1080/1070 |
| 4.22 | Fork dimensions | mm | 40*100*920 | 40*100*920 |
| 4.23 | Fork Type A.B | A | A | |
| 4.24 | Distance between fork-arms | mm | 1040 | 1040 |
| 4.31 | Ground clearance,Laden (The bottom of mast ) | mm | 110 | 110 |
| 4.32 | Min.Ground clearance of body | mm | 110 | 110 |
| 4.34.1 | Aisle width for pallets 1000x1200 crossways | mm | 4185 | 4270 |
| 4.34.2 | Aisle width for pallets 800x1200 crossways | mm | 4220 | 4305 |
| 4.35 | Turning radius | mm | 2060 | 2145 |
| Performance data | ||||
| 5.1 | Travel speed, laden/unladen | km/h | 12/12.5 | 12/12.5 |
| 5.2 | Lifting speed, laden/unladen | m/s | 0.25/0.45 | 0.25/0.45 |
| 5.3 | Lowering speed,laden/unladen | m/s | 0.45/0.44 | 0.45/0.44 |
| 5.6 | maximum drawbar pull | N | 11000 | 11000 |
| 5.8 | Max. gradeability, laden/unladen | % | 10.5/14 | 10.5/14 |
| 5.10 | Travel brake Type | Hydraulic/Mechanical | Hydraulic/Mechanical | |
| Parking brake Type | Mechanical | Mechanical | ||
| Electric-engine | ||||
| 6.1 | Drive motor rating S2 60 min | KW | 6 | 6 |
| 6.2 | Lift motor rating at S3 15% | KW | 7.5 | 7.5 |
| 6.3 | The maximum allowed size battery | mm | 780*711*525 | 974*711*525 |
| 6.4 | Battery voltage/nominal capacity K5 | 48/385 | 48/450 | |
| 6.5 | Battery weight | kg | 660 | 727 |
| Addition data | ||||
| 8.1 | Type of drive control | AC | AC | |
| 10.7 | Sound pressure level at the driver's ear | dB(A) | 70 | 71 |
Exbhition show:
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
Factory show:
We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.
We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
