Specifications
1.6ton liugong mini wheel loader CLG816C1.Rated load: 1600kg
2.Bucket capacity: 0.78m3
3.Engine: YTR4105G69(47kw)
1.6ton liugong mini wheel loader CLG816C
Features:
Ultra-large comfortable safe cab space ·Ultra-large comfortable safe cab space with a panoramic visibility ·Dustproof,sound and shock absorption,heatproof plus ultraviolet radiation-proof ·Panoramic rearview mirror ·Professional-made and sofa driver seat
Duriable and efficient guarantee ·Toughly tested rigid structure proves stable ·The bucket is designed and produced with stiffener board to prevent bending deflection. ·Integral-type board prevent scattering of material and guaranteed the most material loading quantity
Outstanding Z zigzag linkage mechanism ·Powerful breakout force and lifting force means fast lifting and large loading. ·Large rollback angel provides steady material loading ability. ·Controls dump speed:lower dump speed guaranteed the safety of stevedore and linkage mechanism
Full Parameters:
Model |
816Wheel Loader |
|
Bucker performance |
0.8 m³ |
|
Operating weight |
5470kg |
|
Engine |
emission regulation |
Tier2/StageII |
make |
YT4A2-24 |
|
gross power |
55kW (74 hp) @ 2,400 rpm |
|
net power |
50kW (67hp) @ 2,400 rpm |
|
peak torque |
251N.m @ 1600 rpm |
|
displacement |
9.7L |
|
number of cylinders |
4 |
|
aspiration |
natural |
|
Transmission |
Transmission Type |
counter shaft-type power shift |
Torque Converter |
3 element-single stage,single phase |
|
Maximum Travl Speed.fwd |
25km/h |
|
Maximum Travl Speed.rev |
25km/h |
|
number of Speed.fwd |
2 |
|
number of Speed.rev |
2 |
|
Brakes |
Service Breake Type |
caliper disc |
Service Breake Actuation |
hydraulic |
|
Parking Brake Type |
shoe/drum |
|
Parking Brake Actuation |
mechanical |
|
Hydraulic system |
Main pump Type |
gear |
Main Relief Pressure |
18Mpa |
|
Raise |
4.4s |
|
Dump Time |
1.2s |
|
Float Down Time |
3s |
|
Fastest Total Cycel Time |
8.6s |
|
Loader arm performance |
Tipping load-straight |
4985kg |
Tipping load-Full Turn |
4180kg |
|
Bucket Breakout Force |
62kN |
|
Maximum Dump Angle at Full Height |
45° |
|
Dump Clearance at full height discharge |
2417mm |
|
Dump reach at full height discharge |
788mm |
|
Maximum hinge pin height |
3049mm |
|
Maximum Digging depth,Bucket level |
16.5mm |
|
Bucket rollback at ground level |
43° |
|
Bucket rollback at carry |
52° |
|
Bucket rollback at maximum height |
64° |
|
Dimensions |
Length with bucket down |
5457mm |
width over tires |
1904mm |
|
wheelbase |
2200mm |
|
wheel Tread |
1520mm |
|
Ground Clearance |
285mm |
|
Turn Angle,Either Side |
38° |
|
Rear Angle of Departure |
28.5° |
|
Turning Radius,Outside of Tire |
4208mm |
|
Turning Radius,Center of Tire |
3908mm |
|
Turning Radius,Bucket Carry |
4502mm |
|
Service Capacities |
FuelTank |
95L |
Engine Oil |
16L |
|
Cooling System |
21L |
|
Hydraulic Reservoir |
78L |
|
Transmission and Torque Converter |
20L |
|
Axles,each |
8L |
|

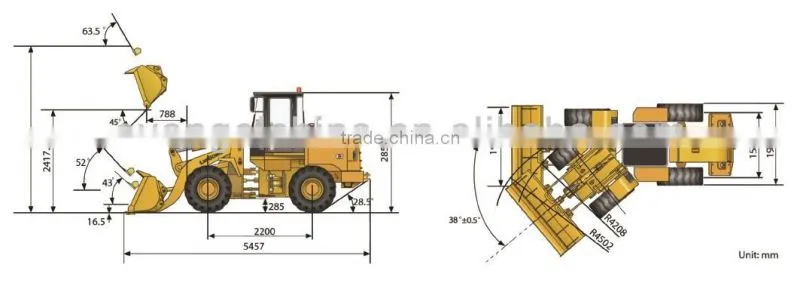

Dimensions:

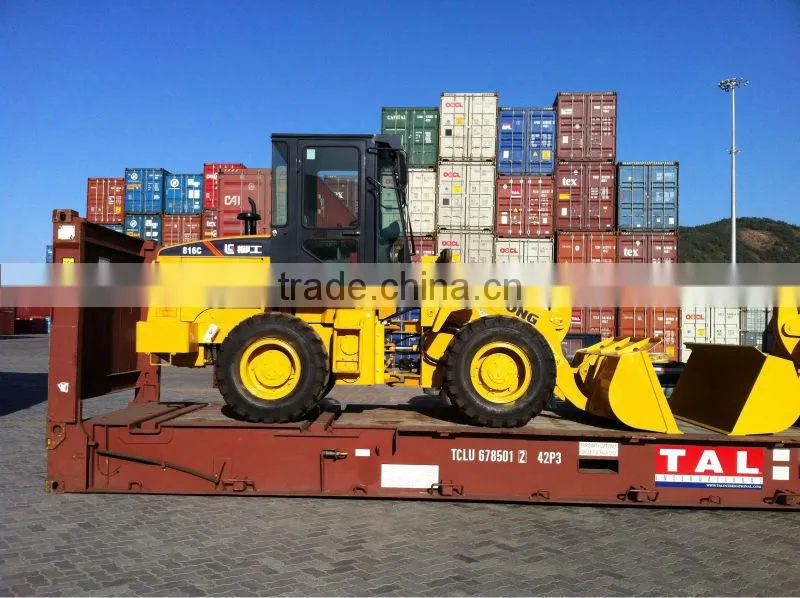

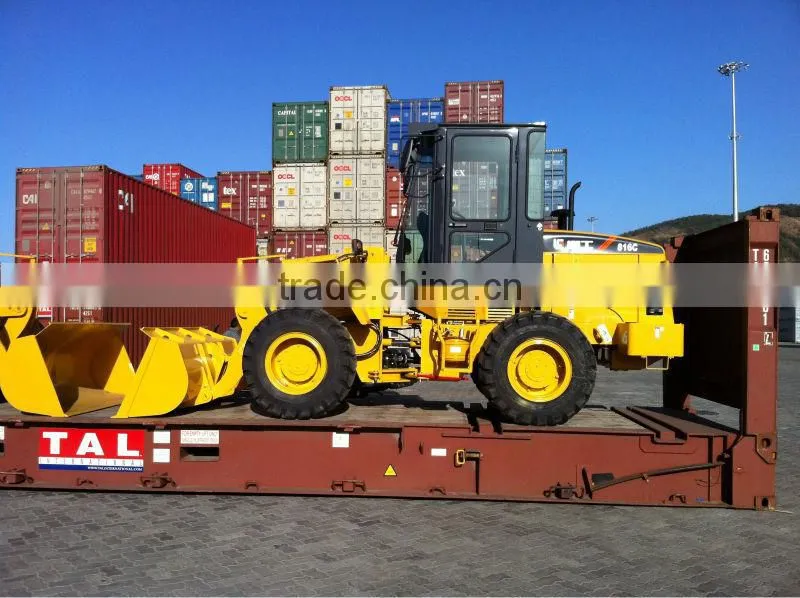

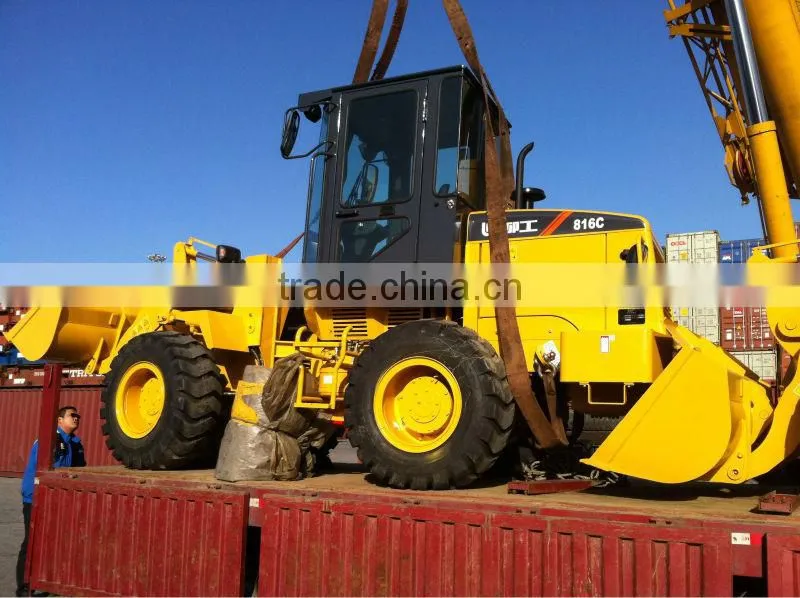

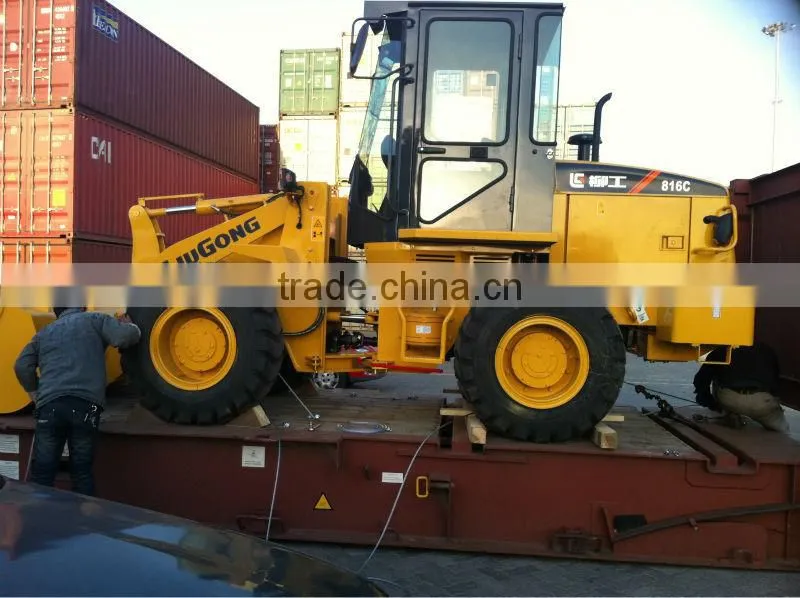

Loading Photos
