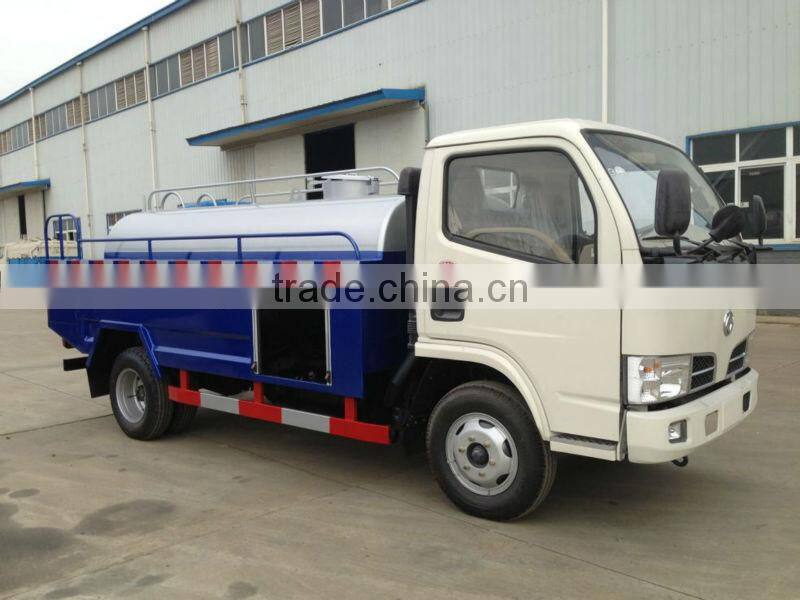

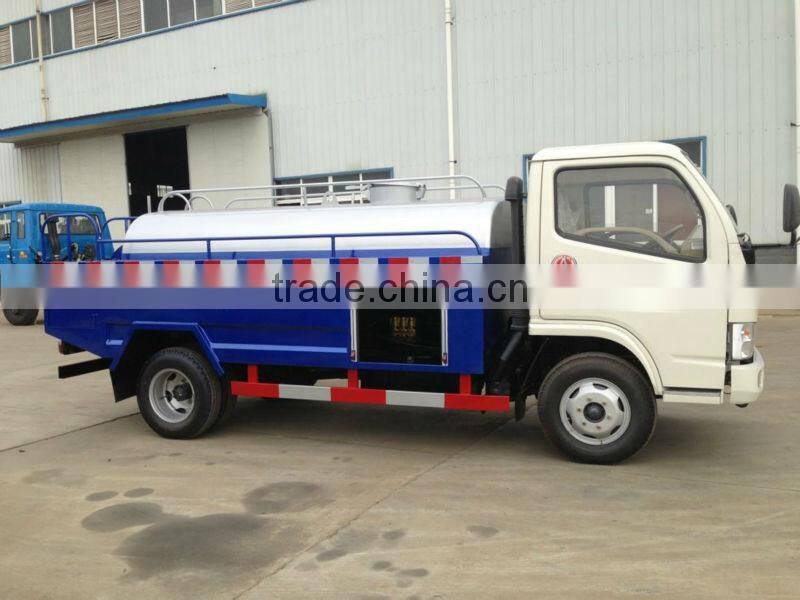

3000L High Pressure Washer Truck With Dongfeng Chassis

Name: 3000L High Pressure Washer Truck With Dongfeng Chassis
Brand: JIULONG
SKU: 140723926
Availability: InStock

US$ 1 - 35,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

JIULONG

Model Number:

ALA5060GQXE3

Evangel Industrial (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port or Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name JIULONG

Model Number ALA5060GQXE3

After-sales Service Provided Engineers available to service machinery overseas

3000L High Pressure Jetting Truck Technical Specification

Chassis Information
Chassis brand	Dongfeng
Chassis model	EQ1060TJ20D3
Drive type	4×2
Dimension Parameter
Approx. Overall dimension (LWH) (mm)	599019802160
Wheel base (mm)	3300
Wheel No.	2
Front/ Rear track (mm)	1506/1466
Weight Parameter
GVW (kg)	6495
Payload weight (kg)	3000
Kerb weight (kg)	3300
Front/Rear Axle load	2T / 3T
Engine Parameter
Model	CY4102-C3F
Manufacturer	Chaochai
Horsepower (hp)	95
Displacement / power (ml/kw)	3856/70
Emission standard	Eur III
Transmission
Control type	Manual
Gear Shift	5 speed gearbox
Tyre
Type	7.00-16
Tyre No.	6+1 spare tire
Cab
Type	Flat roof cab with, high quality paint
High-pressure Jetting Tank
Sewer jetting tank volume	3000L
Material of the tank	carbon steel

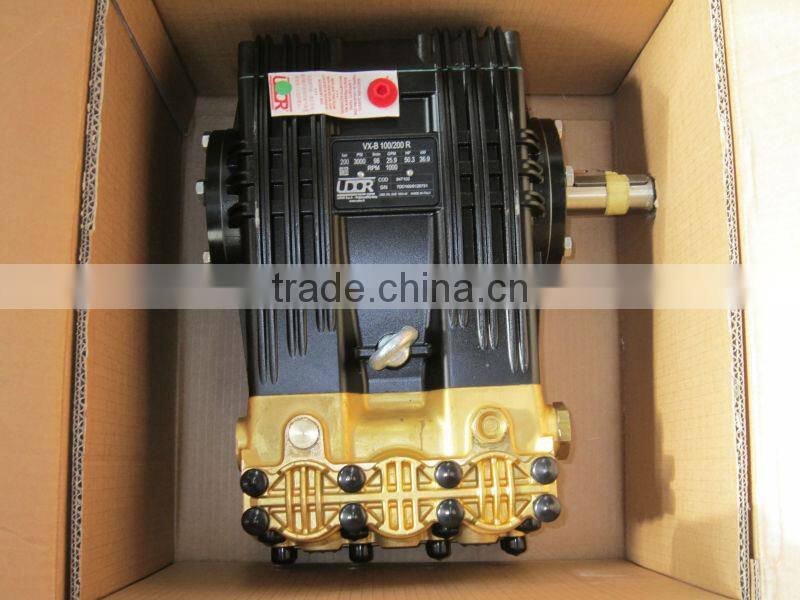

High-pressure plunger pump	Italy UDOR Model: VX-B 100/200 R-L, RPM: 1000 Flow rate: 98l/min, 25.9GPM, Pressure: 200bar, 3000PSI, Power: 50.3HP, 36.9kw, weight:57kg
High pressure hose length	60m
Thickness of the tank	4mm (seal head 5mm)
