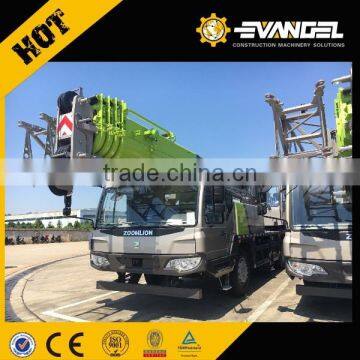

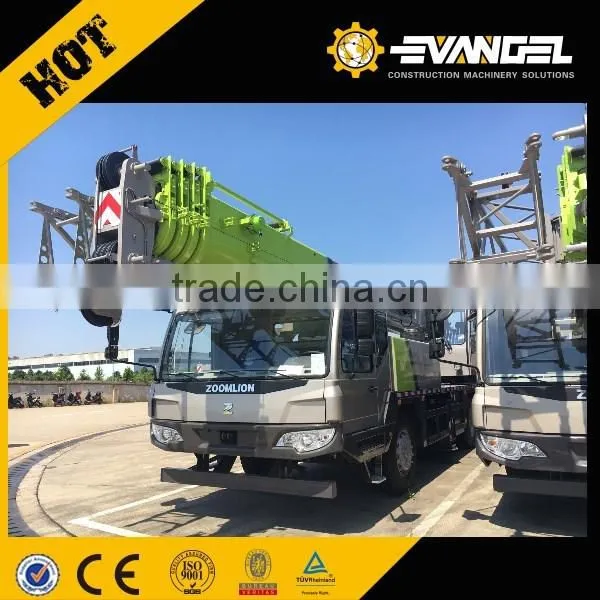

Zoomlion Crane Truck QY110V633

Zoomlion Crane Truck QY110V633 thumbnail-1

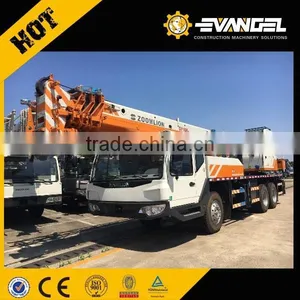

Zoomlion Crane Truck QY110V633 thumbnail-2
Zoomlion Crane Truck QY110V633 thumbnail-3
Zoomlion Crane Truck QY110V633 thumbnail-4
Zoomlion Crane Truck QY110V633 thumbnail-5
Zoomlion Crane Truck QY110V633 photo-1

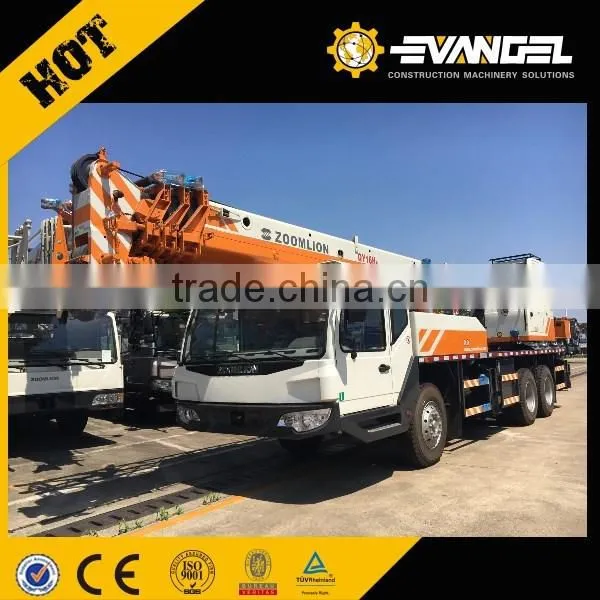

Zoomlion Crane Truck QY110V633 photo-2

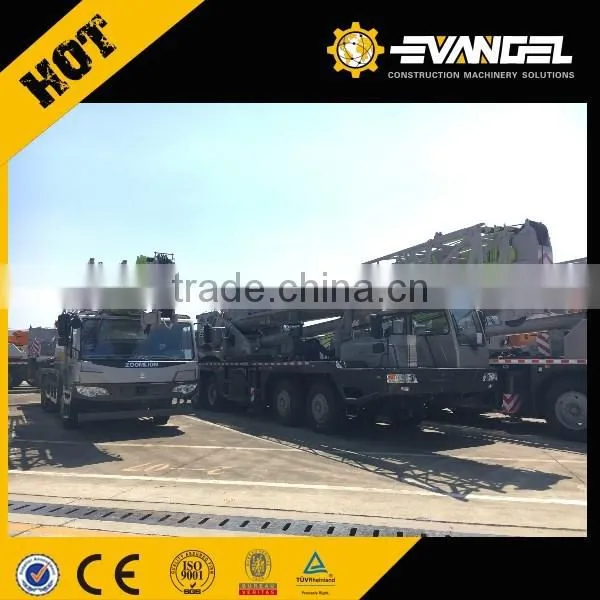

Zoomlion Crane Truck QY110V633 photo-3

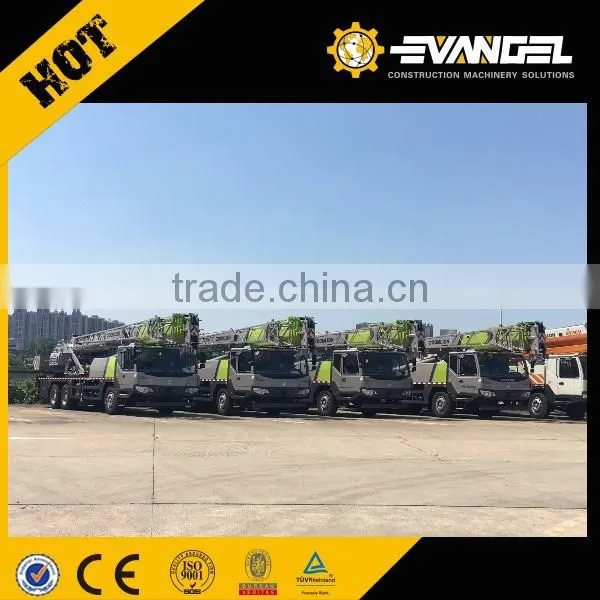

Zoomlion Crane Truck QY110V633 photo-4

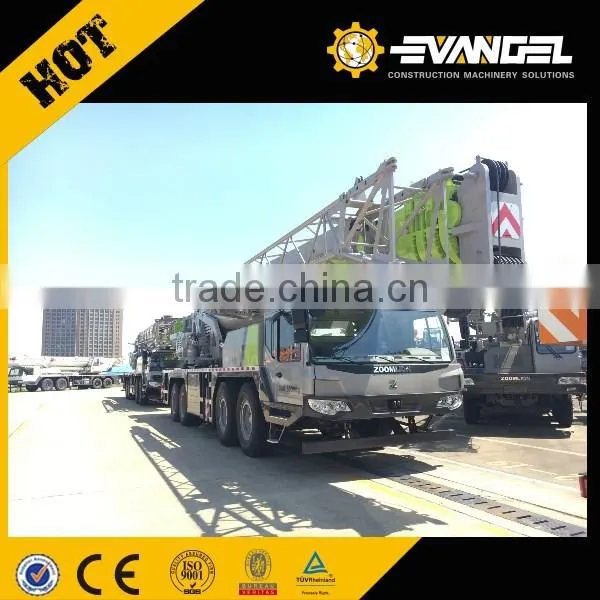

Zoomlion Crane Truck QY110V633 photo-5
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Lifting Load:
110Ton
Max. Lifting Height:
100.4m
Contact Supplier Request Quote Chat Now
Evangel Industrial (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Max. Lifting Load 110Ton
Max. Lifting Height 100.4m
Place of Origin Hunan, China
Brand Name ZOOMLION
Model Number QY50V633



Zoomlion crane truck QY110V633



Maximum rated total load kg 110000 5.5 m radius
Maximum lifting moment of basic boom kN.m 4400
Maximum lifting moment of fully extended main boom kN.m 1880
Maximum lifting height of main boom m 58.5 Without considering boom
deformation, values in
parentheses are those
Maximum lifting height of fly jib m 77/(85) added with the extension jib
Working speed
Maximum single rope speed m/min 115 Fourth layer
Maximum single rope speed m/min 70 Third layer
Boom extending time s ≥600
600 s is the theoretical
value for when engine is
running at the maximum set
rotating speed
Boom elevation time s ≥80
Swiveling speed r/min ≤1.5
Travel parameters
Maximum travel speed km/h 78
Maximum gradeability % 40
Minimum turning diameter m 23
Minimum ground clearance mm 280
Exhaust emission limits -- GB3847-2005
GB17691-2005 Guo III
Fuel consumption per 100 km L 75
Weight
parameters
Dead weight under travelling conditions (total mass) kg 54900
Whole vehicle curb weight kg 54705
Front axle load kg 19900
Rear axle load kg 35000
Dimensional
parameters
Overall dimensions (L x W x H) mm 14690x3000x3890
Outrigger longitudinal span m 7.67
Outrigger transverse span m 7.8 (fully extended),
5.3 (semi-extended)
Main boom length m 12.8~57.5
Main boom elevation angle ° -1.5~82
Fly jib length m 11, 18.6
Fly jib + Extension jib m 26.6
Jib set angle ° 0, 30

Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity kg

50000



Max. load moment of basic boom kN.m

1764

1470(Outrigger beam half extended)

Max. load moment with max. main boom length kN.m

940.8

793.8(Outrigger beam half extended)

Max. lifting height of basic boom m

11.6



Max. lifting height of main boom m

42.1

Deformation of boom is not taken into consideration

Max. lifting height of fly jib m

58.3

Working speed

Max. speed of single rope on main winch m/min

130

The 4th layer of drum

Max. speed of single rope onauxiliary winch m/min

72

The 2nd layer of drum

Derricking time of boom s

50



Telescopic time of boom s

95



Slewing speed r/min

0~2



Traveling specification

Max. traveling speed km/h

76



Max. gradeability %

32



Min. turning circle diameter m

24



Min. ground clearance mm

260



Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(StageⅢ)

Oil consumption per hundred kilometers L

48



Mass specification

Deadweight of crane in traveling condition kg

41000



Complete vehicle kerb mass kg

40470



Front axle load kg

17200



Rear axle load kg

23800



Dimension specification

Overall dimensions(L×W×H)mm

mm

13300×2750×3650



Base on outriggers m

5.92



Distance between outriggers m

6.90



Main boom length m

11.1~42.0



Main boom angle°

-2~80



Fly jib length m

9.5, 16



Offset angle of fly jib °

0 , 30
