US$ 15,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YTO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for forklift engine/forklift cabin/forklift part
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Swamp Track Shoe for BulldozerUS$ 10,000 - 300,000MOQ: 1 Set -
Original Shantui Bulldozer Spare Parts SD08 SD13 SD16 SD22 SD23 SD32US$ 10,000 - 100,000MOQ: 1 Set
-
Shantui 8 Ton Small Bulldozer for Sale SD08US$ 10,000 - 100,000MOQ: 1 Set
-
2/3/4/5/6/7/8/9/10 Ton Diesel/electric Lonking ForkliftUS$ 8,000 - 100,000MOQ: 1 Set
-
Sinotruk Truck Howo Spare PartsUS$ 10,000 - 300,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
YTO
Model Number
CPCD30
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
3tons
Max. Lifting Height
3300mm
Min. Lifting Height
125mm
Fork Length
1070mm
Overall Dimensions
2930*1800*2452mm
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas

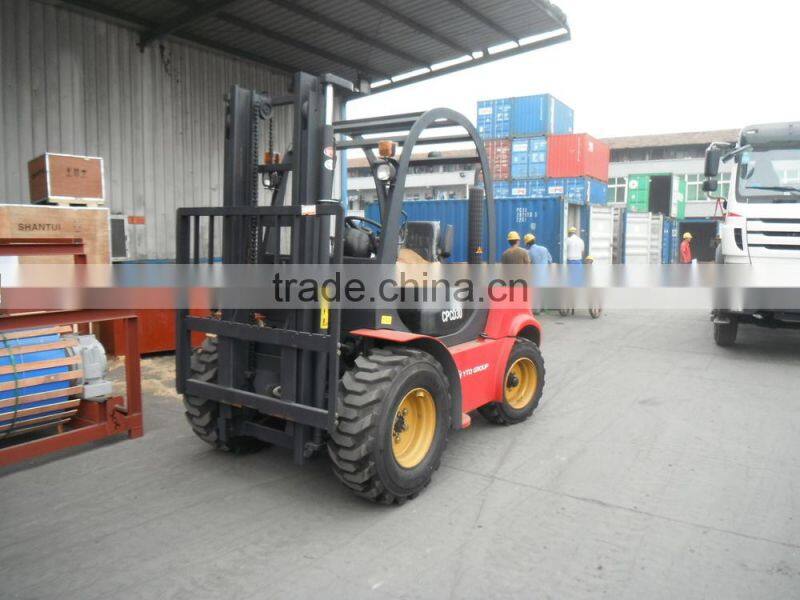

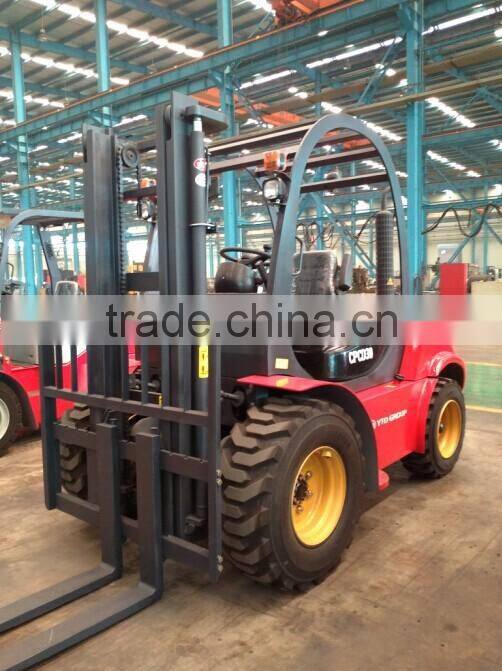

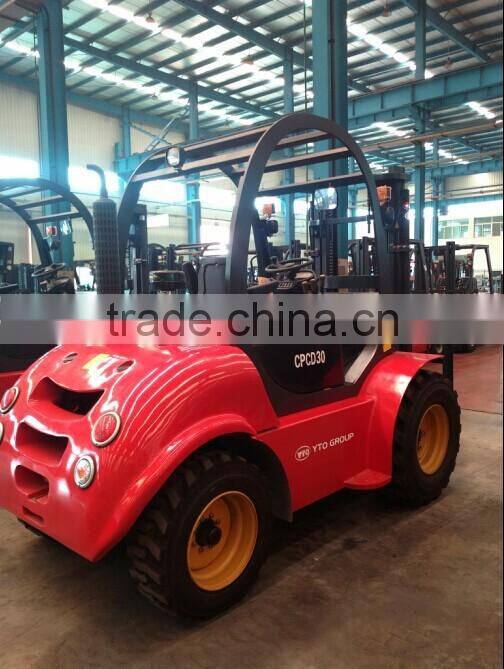

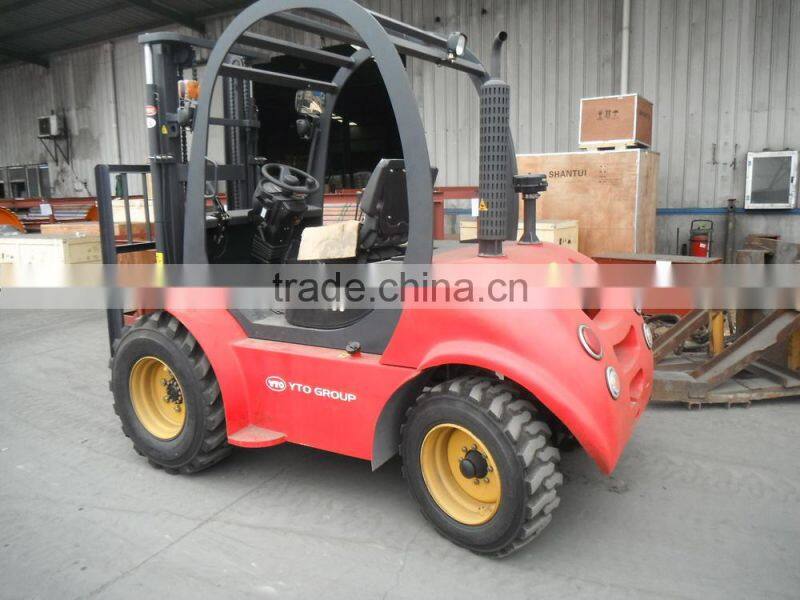

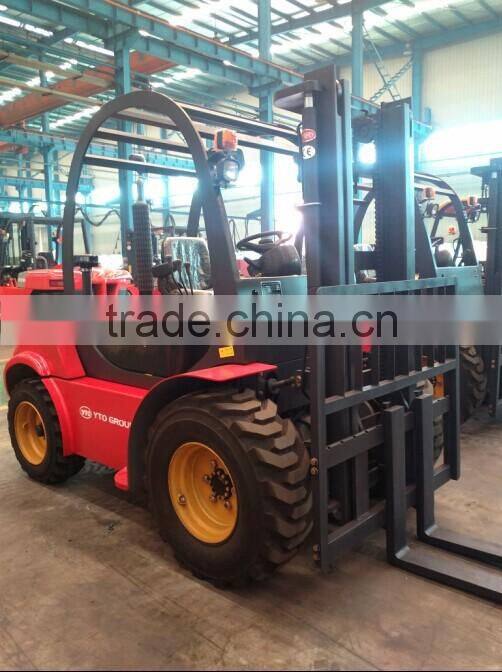

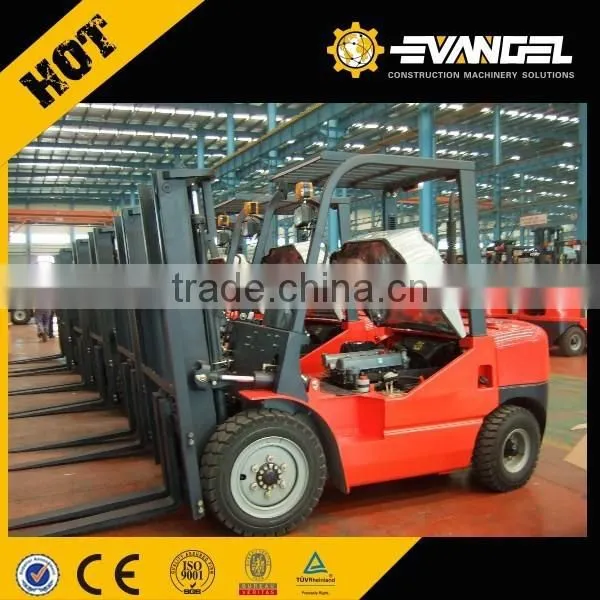

forklift engine/forklift cabin/forklift part
| |||||||||||||
| Speciality parameter | Unit | CPCD30 | |||||||||||
| Power type | Diesel | ||||||||||||
| Rated capacity | kg | 3000 | |||||||||||
| Load center | d | mm | 500 | ||||||||||
| Lift height | h2 | mm | 3300 | ||||||||||
| Mast tilt angle (forward/backward) | α/β | Deg | 10/12 | ||||||||||
| Wheel-base | L4 | mm | 1850 | ||||||||||
| Tread(front/rear) | b4/b5 | mm | 1350/1290 | ||||||||||
| Performance parameter | Hydraulic-Foot pedal | ||||||||||||
| Parking brake | Mechanical-Hand lever | ||||||||||||
| Lift speed(with load) | mm/s | 380/520 | |||||||||||
| Lower speed (with/without load) | mm/s | (with load)<600 ,(without load)>300 | |||||||||||
| Travel speed (without load) | km/h | 20/25 | |||||||||||
| Max. gradeability (with load) | % | 20 | |||||||||||
|
Power, transmission and others |
Engine | Model | A498BPG | ||||||||||
| Manufacturer | Xinchang | ||||||||||||
| Rated power | kw | 45/2500 | |||||||||||
| Max. rotation | Nm/rpm | 193/1800 | |||||||||||
| Displacement | L | 3.168 | |||||||||||
| Battery | Voltage | V | 12 | ||||||||||
| Capacity | Ah | 100 | |||||||||||
| Gearbox | Transmission type | Hydraulic | |||||||||||
| Gears,speed (front/rear) | Ⅰ/Ⅰ | ||||||||||||
| Tire | type | Hydraulic | |||||||||||
| Model | front | 14-17.5-14PR | |||||||||||
| Rear | 10-16.5-10PR | ||||||||||||
| Others | Self.weight | kg | 4600 | ||||||||||
| Free lift height | h4 | mm | 120 | ||||||||||
| Fork | Thickness×Width×Length | c×b×a | mm | 40×125×1070 | |||||||||
|
Overall dimensions |
Overall length(without forks) | L2 | mm | 2930 | |||||||||
| Overall width | b1 | mm | 1800 | ||||||||||
|
Overall height |
Extended height(mast) | h1 | mm | 4650 | |||||||||
| Lower height(mast) | h3 | mm | 2342 | ||||||||||
| Overhead guard | h7 | mm | 2452 | ||||||||||
| Min. turning radius | Wa | mm | 3050 | ||||||||||
|
Min. under ground clearance |
Under mast | m1 | mm | 220 | |||||||||
| Center of wheel-base | m2 | mm | 315 | ||||||||||
