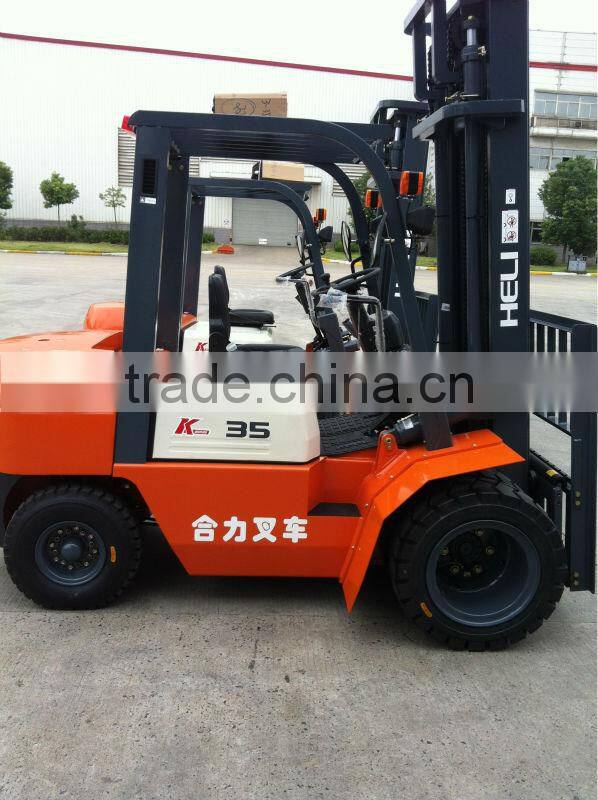

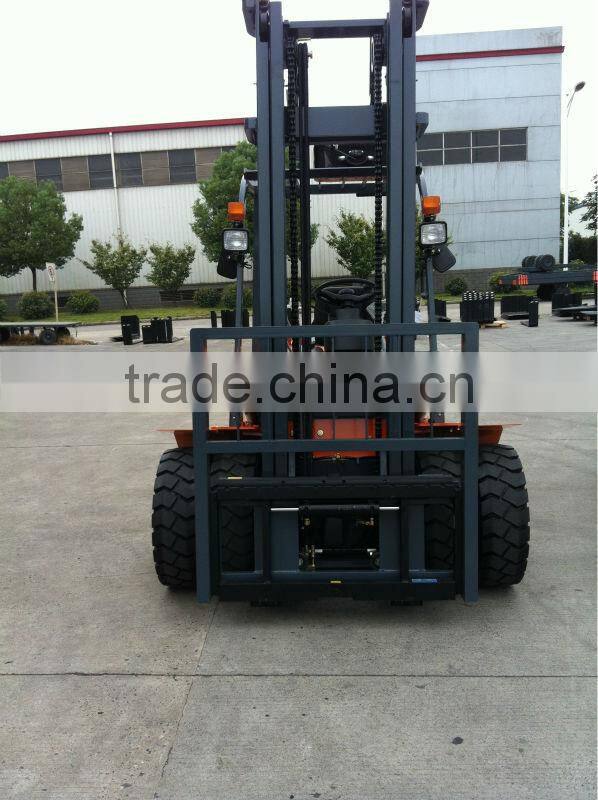

3 ton heli forklift of china CPCD30 for sale
- 100 Unit / Units per Month
- Shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HELI |
Model Number: | CPCD30 | Type: | Manual Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 3000kg | Max. Lifting Height: | 3-6M | Min. Lifting Height: | 100mm |
Fork Length: | 1070mm | Fork Width: | 125mm | Overall Dimensions: | 3750*1225*2090mm |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
3 ton heli forklift of china CPCD30 for sale1.High quality
2.Competitive price
3.Fast delivery
new forklift price heli/heli forklift of china/anhui heli forklift CPCD30
1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team
Model | CPCD30 | ||
Power type | Diesel | ||
Rated capacity | kg | 3000 | |
Load center | mm | 500 | |
Lift height | mm | 4500 | |
Free lift height | mm | 145 | |
Fork size | mm | 1220×125×45 | |
Mast tilt angle | deg | 6/12 | |
Front overhang | mm | 482 | |
Overall | Length to face of forklift | mm | 2695 |
Overall width | mm | 1225 | |
Mast lowerd height | mm | 2070 | |
Mast extended height | mm | 4250 | |
Overhead guard height | mm | 2090 | |
Turning radius | mm | 2420 | |
Min.right angle aisle width | mm | 2885 | |
Speeds | Drive speeds | km/h | 18/19.5 |
Lifting speeds | mm/s | 470/520 | |
Lowering speeds | mm/s | ≤600 | |
Max.grade ability | % | 15 | |
Total weight | kg | 4350 | |
Tires | Frot | 28*9-12PR | |
Rear | 6.5-10-10PR | ||
Wheeslbase | mm | 1700 | |
Tread | Front | mm | 1000 |
Rear | mm | 970 | |
Hold under mast | mm | 110 | |
Engine | Model | Xinchang 490BPG | |
Rated output | kw/rpm | 37/2650 | |
Rated torque | N.m/rpm | 148/2000 | |
No.of cylinder | 4 | ||
Displacement | L | 2.54 | |
Fuel tank capacity | L | 52 |
