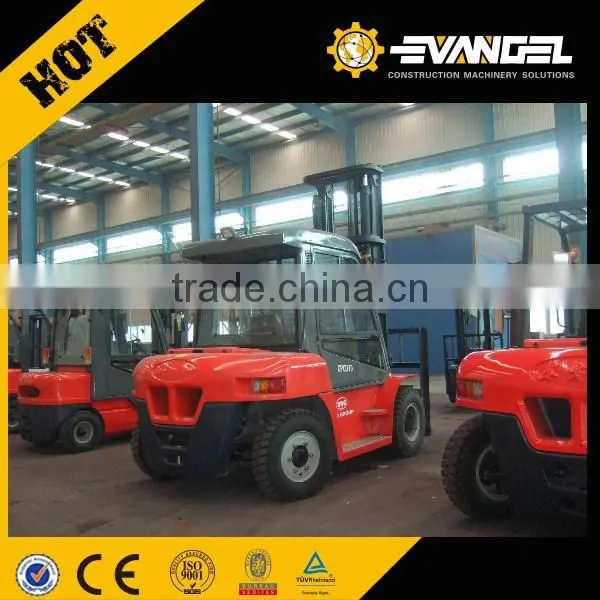

YTO Chinese 7 ton Diesel forklift specification CPCD70
- 500 Set / Sets per Month
- Shanghai
- T/T L/C Credit Card
- Perkins T433072 - PISTON ASSEMBLY Genuine Engine Spare parts
- Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
- SHANTUI JANEOO Sand making building ZSG120-5T
- Main technical parameters of 30m concrete pump truck
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
Product Details
Place of Origin: | Henan, China | Brand Name: | YTO | Model Number: | CPCD70 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
YTO Chinese 7 ton Diesel forklift specification CPCD701.Chinese engine
2.Hydraulic Transmission
3.Rated load: 7ton
Diesel Forklift CPCD70
Model |
| CPCD70 | |
Power type |
| Diesel | |
rated lifting capacity |
| 7000 | |
load center distance | mm | 600 | |
lifting height | mm | 3000 | |
Free lifting height | mm | 200 | |
Mast tilt angle(front/rear) | ° | 6/12 | |
lifting speed(with/without load) |
| 350/380 | |
lowering speed(with/without load) |
| >300(without load),<600(with load) | |
travel speed(with/without load) |
| 20/21 | |
max gradeability with full load |
| 20% | |
min turning radius | mm | 3500 | |
Min.intersecting aisle(clearance 0.2m) | mm | 3200 | |
Min.right angle staching aisle width |
| 4295+L6 | |
Fork | Length | mm | 1220 |
Width | mm | 150 | |
Thickness | mm | 65 | |
Lateral fork adjustment | mm | 200-1710 | |
Front overhand | mm | 595 | |
Rear overhand | mm | 740 |
