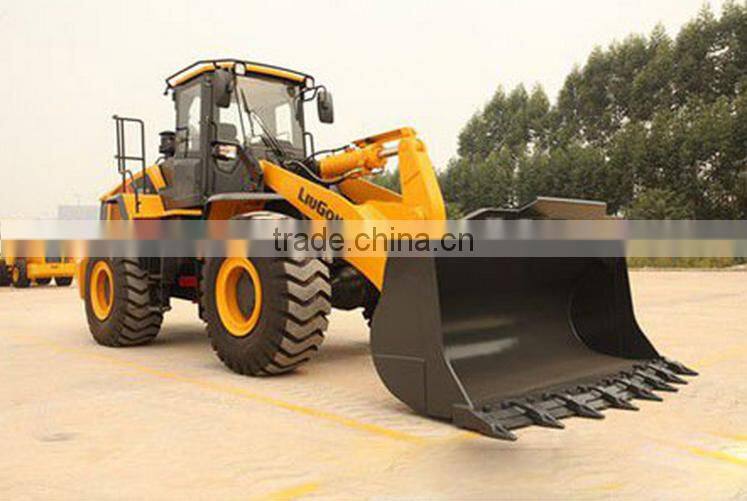

Liugong Wheel Loader Shangchai Engine CLG842

Liugong wheel loader shangchai engine CLG842

SPECiFiCatiONS  >>>

ENGINE

Emission Regulation Tier 2 / Stage II

Make Shangchai

Model SC8D170G2B1

Gross Power 125 kW (170 hp) @ 2,200 rpm

Net Power 112.5 kW (153 hp) @ 2,200 rpm

Peak Torque 650 N · m

Displacement 8.27 L

Number of Cylinders 6

Aspiration Turbocharged

TRANSMISSION

Transmission Type Planetary type, power shift

Torque Converter Double stage, four elements

Maximum Travel Speed, fwd 36 km/h

Maximum Travel Speed, rev 13 km/h

Number of Speeds, fwd 2

Number of Speeds, rev 1

AXLES

Differential Front Type Conventional

Differential Rear Type Conventional

Axle Oscillation ±12°

STEERING

Steering Configuration Articulated

Steering Relief Pressure 15 Mpa

BRAKES

Service Brake Type Caliper disc brake

Service Brake Actuation Air over hydraulic

Parking Brake Type Manual pneumatic control

Parking Brake Actuation Air

HYDRAULIC SYSTEM

Main Pump Type Gear

Main Relief Pressure 18 MPa

Raise 5.5 s

Dump Time 1.2 s

Float Down Time 3.7 s

Fastest Total Cycle Time 10.4 s

LOADER ARM PERFORMANCE

Tipping Load - Straight 9,969 kg

Tipping Load - Full Turn 8,633 kg

Bucket Breakout Force 125 kN

Maximum Dump Angle at Full Height 45°

Dump Clearance at Full Height Discharge 2,880 mm

Dump Reach at Full Height Discharge 1,014 mm

Maximum Hinge Pin Height 3,829 mm

Maximum Digging Depth, Bucket Level 50 mm

Bucket Rollback at Ground Level 43°

Bucket Rollback at Carry 48°

Bucket Rollback at Maximum Height 61°

BUCKET PERFORMANCE

Reference Bucket 2.3 m 3

DIMENSIONS

Length with Bucket Down 7,257 mm

Width Over Tires 2,470 mm

Wheelbase 3,000 mm

Wheel Tread 1,950 mm

Ground Clearance 410 mm

Turn Angle, Either Side 38°

Rear Angle of Departure 30°

Turning Radius, Outside of Tire 5,591 mm

Turning Radius, Center of Tire 5,331 mm

Turning Radius, Bucket Carry 6,406 mm

TIRES

Tire Size 20.5 - 25

OPERATING WEIGHTS

Operating Weight 13,800 kg

SERvICE CAPACITY

Fuel Tank 210 L

Engine Oil 22 L

Cooling System 38 L

Hydraulic Reservoir 170 L

Transmission and Torque Converter 45 L

Axle, Front 28 L

Axle, Rear 32 L

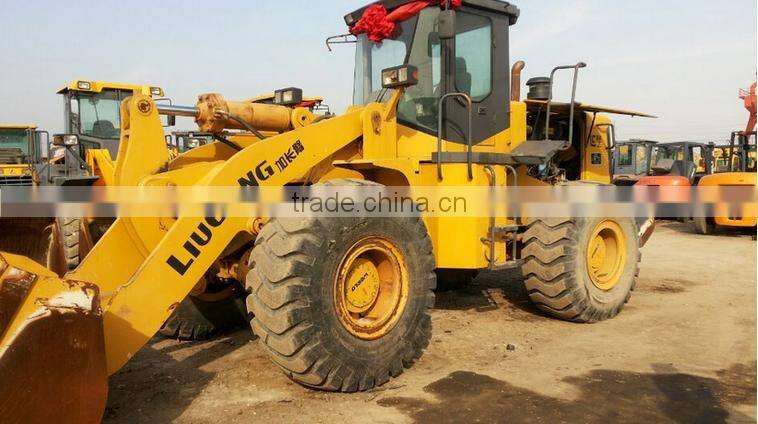

Photos:
