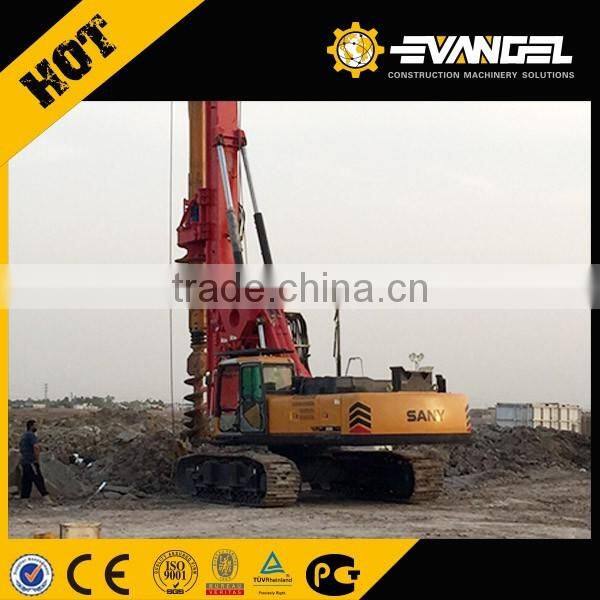

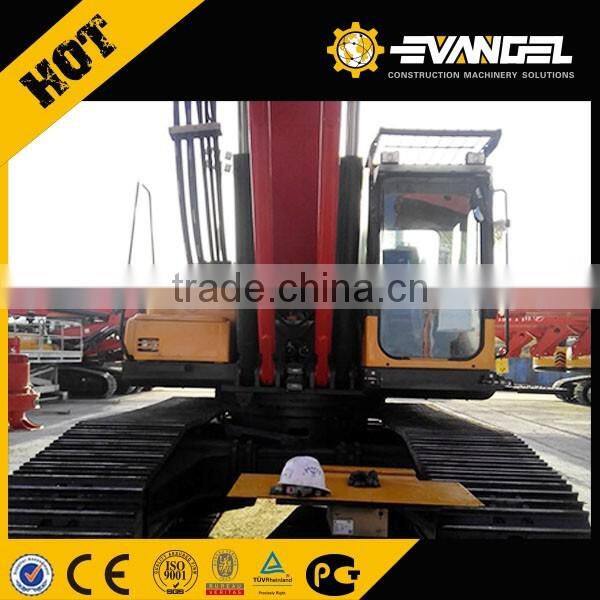

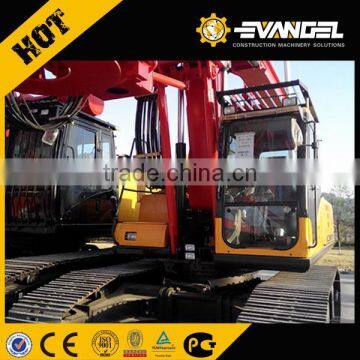

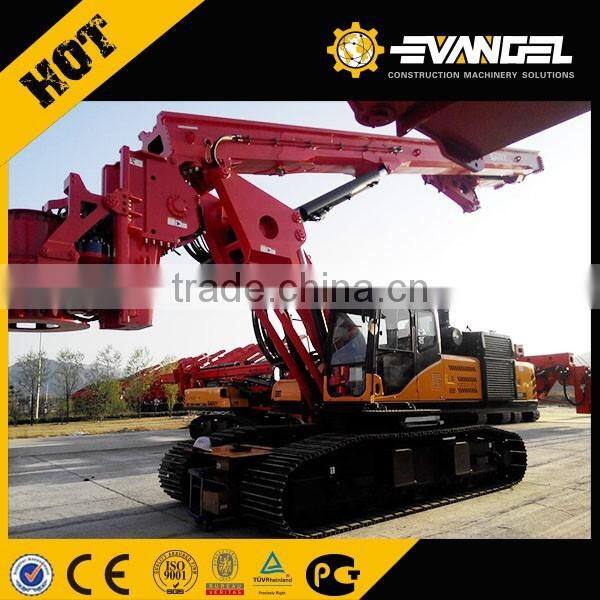

SANY SR360RC10 Mining Rotary Core Drilling Rig Machine

Feasures

SR360RC10 rotary drilling rig is suitable for large diameter hard rock drilling.

High drilling capacity

14-19m friction Kelly, 14-19m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 360kN.m, the maximum pile depth is 106m down, maximum pile diameter is 2500mm, 3000mm after remove the lower mast.

Isuzu engine with rated power of 300kW@1800rpm, six gears control provides strong power to the machine, improving the drilling capacity.

Main winch with dual reducer and dual motor delivers faster line speed of 75m/min, bigger lifting power with 360kN line pull.

Safe and reliable

The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.

Anti-shock heavy duty hydraulic system tailor-made with renowned brands and heavy extended chassis with low gravity ensure efficient, safe and stable operation.

Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.

Easy to operate&maintain

Auto center lubrication system is equipped to facilitate the secure and efficient lubrication of the drilling rig.

Optimized layout, larger spaces for pumps and valves is for easy maintenance during work.

Spacious cab with panorama sunroof, SANY-ADMS intelligent operation system designed to give the operator a comfortable environment and wide visibility.

Parameters
