Chinese Famous Brand SANY Crawler Rotary Drilling Rig SR150C
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Max.Pile Diameter 2800mm Sany Rotary Drilling Rig SR405RC10NegotiableMOQ: 1 Set -
Max.Pile Diameter 2700mm Sany Rotary Drilling Rig SR365RC10NegotiableMOQ: 1 Set
-
Max.Pile Diameter 2500mm Sany Rotary Drilling Rig SR360RC10NegotiableMOQ: 1 Unit
-
Max.Pile Diameter 2300mm Sany Rotary Drilling Rig SR285RC10NegotiableMOQ: 1 Unit
-
Max.Pile Diameter 2200mm Sany Rotary Drilling Rig SR265C10NegotiableMOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Beijing, China
Brand Name
Sany
Model Number
SR150C
Usage
Ore
Weight
46t
Certification
ISO9001
Warranty
1YEAR
After-sales Service Provided
Engineers available to service machinery overseas

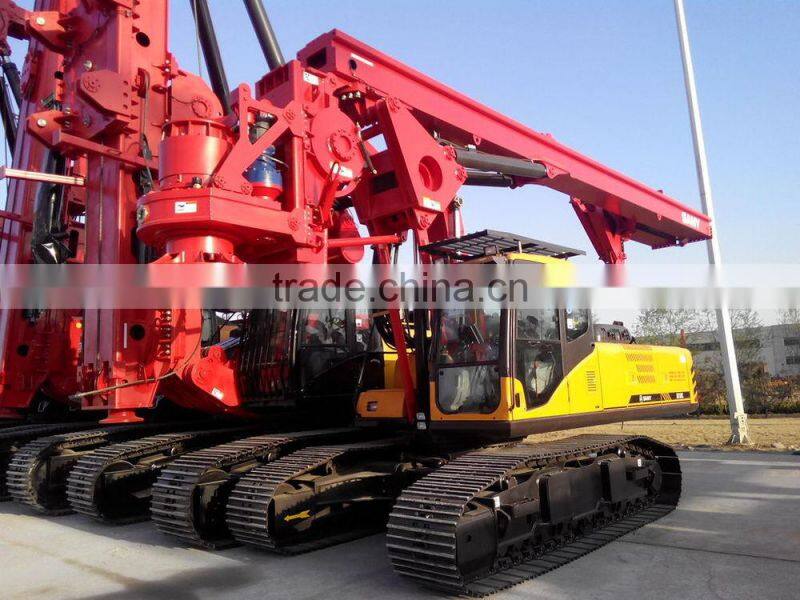

Chinese famous brand SANY Crawler Rotary Drilling Rig SR150C
It is economical and efficient, mainly used in media and small-diameter pile civil construction;
Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
The special lubricating system makes sure that it can work under high-temperature environment;
The removable and symmetrical structure design doubles the service life of rotary drive key;
Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
Mast verticality auto-adjusting technology promises the pile accuracy.
| Main performances | Unit | Parameters |
| Overall height | mm | 18,432 |
| Operating weight | t | 46 |
| Max. pile diameter | mm | 1,500 |
| Max. pile depth(friction Kelly/inter-locking Kelly) | m | 56/44 |
| Rotary Drive | ||
| Max. output torque | kN.m | 150 |
| Speed of rotation | rpm | 6.5~40 |
| Crowd system | ||
| Crowd force | kN | 160 |
| Line pull | kN | 160 |
| Stroke | mm | 4,250 |
| Main winch | ||
| Line pull(1st layer) | kN | 160 |
| Rope diameter | mm | 28 |
| Max. line speed | m/min | 70 |
| Auxiliary winch | ||
| Line pull(1st layer) | kN | 60 |
| Rope diameter | mm | 14 |
| Max. line speed | m/min | 60 |
| Mast inclination | ||
| Forward | ° | 5 |
| Lateral | ° | ±5 |
