Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Good Price Trailer Concrete Trailer Pump Trailer For Sale
US$ 40,000 - 45,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Hunan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sinotruck Howo 10M3 Concrete Pump Mixer TruckUS$ 50,000 - 60,000MOQ: 1 Unit -
28m Sany Brand New Truck Mounted Concrete Pump SY5230THB 28NegotiableMOQ: 1 Unit
-
Dengfeng Brand 6/7/8/9/10/12/15/16 Cbm Concrete Truck Mixer PriceUS$ 50,000 - 60,000MOQ: 1 Unit
-
28m Sany Brand New Concrete Pump India SY5230THB 28NegotiableMOQ: 1 Unit
-
Sinotruck 10M3 Concrete Mixer Truck Concrete Mixer Truck DimensionsUS$ 50,000 - 60,000MOQ: 1 Unit
Condition
New
Power Type
Diesel
Place of Origin
Hunan, China
Brand Name
Liugong/SANY
Model Number
HBT60-9-75Z
Power(W)
132KW
Weight
6000kg
Dimension(L*W*H)
6400*2480*2350mm
Certification
ISO/CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

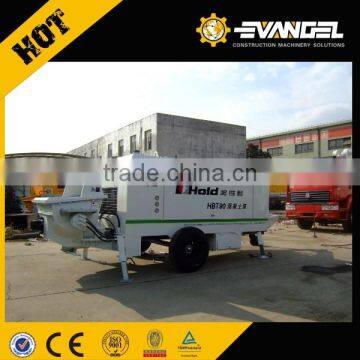

Good Price Trailer Concrete trailer Pump Trailer For Sale
Product Description
Parameters: Good Price Trailer Concrete trailer Pump Trailer For Sale
-- 1. Power System
World top brand, diesel engine and electrical motor, strong power and low defect.
-- 2.Control system

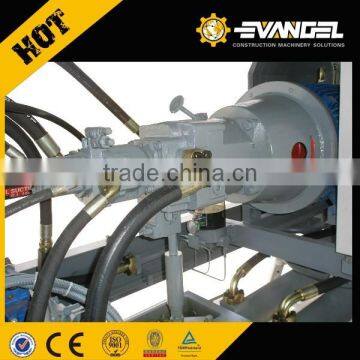

PLC program controller, well receive or send the signal expediently. It connects with the computer closely. When there is abnormal, it will recover the the original process.
Mixing system is driven by hydraulic motor. The hopper is unique in design, as assure that there is no accumulated material.
| No. | Item | Unit | HBT60-9-75Z |
| 1 | Theory Concrete Output (Low / High Pressure) | m3/h | 60 |
| 2 | Concrete Pressure (Low / high pressure) | Mpa | 9 |
| 3 | Hydraulic system pressure | Mpa | 32 |
| 4 | Rotation speed | r/min | 1480 |
| 5 | High / low pressure switch | No | |
| 6 | Distribution valve | Gate valve | |
| 7 | Pumping cylinder diameter/ Stroke | mm | 205/1400 |
| 8 | Main oil pump discharge | ml/r | 190 |
| 9 | Motor power | kw | 75 |
| 10 | Voltage/ Frequency | V/Hz | 380/50 |
| 11 | Hydraulic tank volume | L | 500 |
| 12 | Height of adding material | mm | ≤1500 |
| 13 | Hopper volume | m3 | 0.7 |
| 14 | Total mass | kg | 5500 |
| 15 | Concrete slump | mm | 80-230 |
| 16 | Theory vertical pumping height | m | 100 |
| 17 | Theory direction change times Low/High pressure | times/min | 22 |
| 18 | Dimension: LXWXH | mm | 5850×2050×2260 |
Parameters: Good Price Trailer Concrete trailer Pump Trailer For Sale
