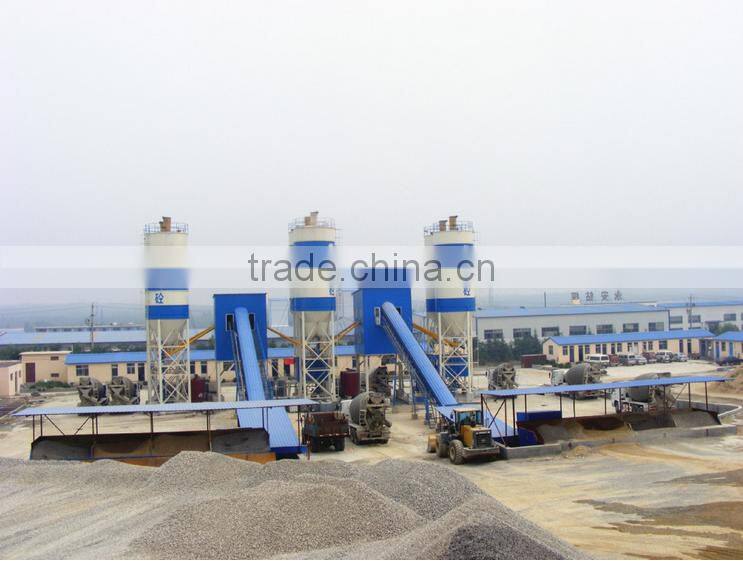

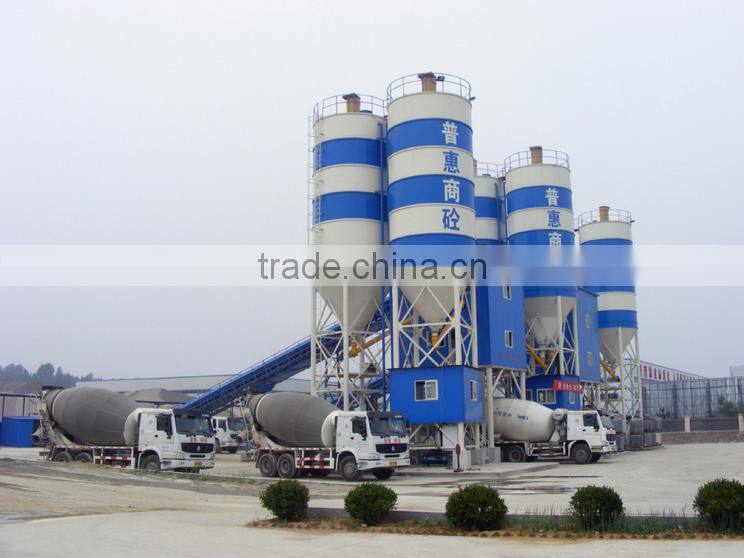

HLS120 concrete batching plant for sale
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
This concrete batching plant isLianchuang's newly developed products on its many years' experience of producing concrete batching equipments combined with international top technology and advantages and technicques of advanced machine types both in China and abroad in recent years. It is the only product in the same field in China that achieves domestic leading level in general index and achieves international advanced level in such aspects as productivity, noise control, environmental production, etc. Thus it was chosen as one of the NATIONAL KEY NEW PRODUCTS in 2006.
HLS120 Concrete Batching Plant Features
1. Adopt combined structure and modular unit, convenient to install and remove;
2. Mixing and aggregate lifting system adopt JS2000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
3. Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;
4. Powder lot is electronic measured, highly accurate dosing;
Technical parameter of HLS120 mini concrete mixing plant
(capacity 120m3/h)
Technical parameter is just for reference!
Model | HLS120 |
Rated Productivity | 120m3/h |
Main Mixer | JS2000 |
Max. Aggregate Diameter | 80mm |
Capacity of Aggregate Bin | 4X16m3 |
Aggregate Conveying Mode | Flat Belt Conveyor |
Aggregate Weighing Precision | 4X 3500Kg ±2% |
Cement Weighing Precision | 1500Kg ±1% |
Fly Ash Weighing Precision | 1500Kg ±1% |
Water Weighing Precision | 1000Kg ±1% |
Additive Weighing Precision | 100Kg ±1% |
General Power | 200Kw |
Total Weight | 88T |
Outline dimension (L*W*H) | 44m×18m×12.7m |
Discharging Height | 4.2m |
Powder Silos (for customers choice) | The capacity and number of silos as well as the configuration of silo accessories vary with customers’ demands. |
Screw Conveyors (for customers choice) | Usually, φ219mm or φ273mm screw conveyors are used |
