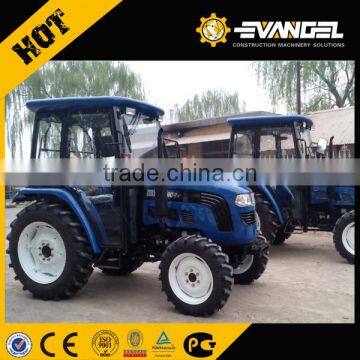

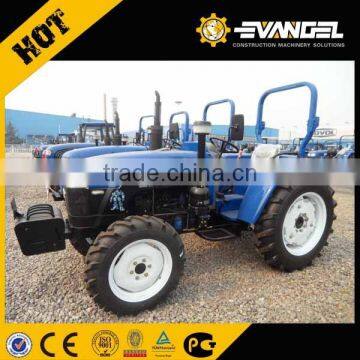

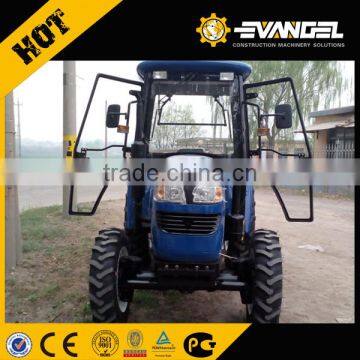

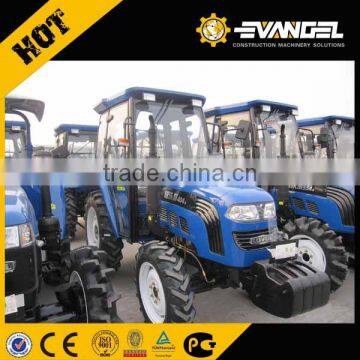

Foton Lovol 25hp 4wd Farming mini tractor TE254
SUCCESSFUL CASES

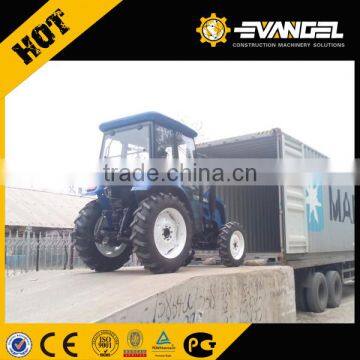

On August 31th,2015, EVANGEL exported 2 Foton Farm Tractor to New Zealand. He is an old but very nice man. We always keep in touch with each other as old friends.
The configuration of TE254 is:
Fonton Lovol Brand Tractor Model: TE254 With Turf Tires
front/ back Tires
26*7.5-12/11.2-20
Pallet forks. Roll Bar/Canopy.
Front end loader bucket(1.84 Dumping height, 2.3 lifting height)
1. New platform model, side-positioned control, suspension-type foot pedal and optional Cab with heater models;
2. 8+2,8+8,16+4 variable speed gearbox, a variety of gear shift selection and reasonable velocity distribution;
3. Optional Agriculture tire, turf tire, paddy tire and construction tire;
4. Standard luxury seat, optional EC certificated seats;
5. Provide certificated models of EC, EPA and GOST.
| Parameter Items | Parameter Value |
| Drive type | 4 × 4 |
| Engine | |
| Engine type | Vertical,water-cooling,four stroke diesel engine |
| Max torque (N•m) @Rotational speed (rpm) | 90@(1560~1760) |
| Displacement (L) | 1.53 |
| Fuel tank capacity(L) | 32 |
| Engine rated power kw@rpm | 18.4@2350 |
| PTO output kw@rpm | 15.98 |
| Drive system | |
| Clutch | Dry-type , double acting |
| Standard PTO speed rpm | 540/1000 |
| Gears | 8 + 8 |
| Gear shift mode | Shift sleeve + Shifting slide gear |
| Hydraulic system | |
| Hydraulic output flow (L/min) | 28 |
| Hydraulic output valve | 2 way |
| Working-device | |
| Three-point suspension mode | 1 Species |
| Lifting power(610mm point)KN | 4.2 |
| Lifting power (Upgrade origin)KN | 7.9 |
| Tractor parameter | |
| Overall dimension(LXWXH)mm | 3450 X 1440 X 2465(Safety frame) |
| Wheelbase (mm) | 1639 |
| Min ground clearance (mm) | 270 |
| Front tire | 6.0 -14 |
| Rear tire | 9.5 -24 |
