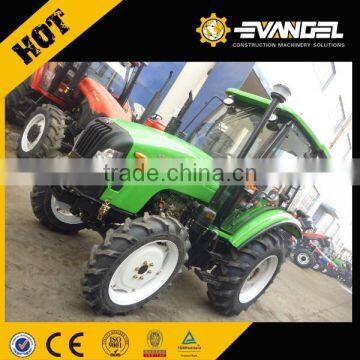

Low Price LuTong High Quality 4WD 82HP Agricultural Tractor LYH824 For Sale

Model

LYH824

Pattern

4×4

Overall Dimension(mm)

Long

4060

Width

2038

High

2810

Wheelbase(mm)

2195

Front wheel tread(mm)

1385-1685(1485)

Rear wheel tread(mm)

1620-2020(1620)

Ground clearance(mm)

476/396

Turning radius (mm)

5.1

Structure quality

Belt cab

3350

Does not bring the cab

3100

Quality assignment

Belt cab

1340

Does not bring the cab

1300

Trailing wheel belt cab

2250

Does not bring the cab

2040

Smallest use quality(kg)

Belt cab

3590

Does not bring the cab

3340

Counterweight

First counterweight

310

Latter counterweight

480

Fixed force of traction(KN)

15.8/16.6/17.3

Engine model

4108T82/4108T86/4110T90

Demarcation power(KW)

60.3/63.2/66.2

Files number

16F+8Ror8F+4R

Speed range

0.46-36.9

Power transmission coupling

Monolithic, the dry type, the butterfly-shaped spring contract, the independent operation, the double-acting type coupling

Gear box

The host vice-speed change shifts gears for the straight meshing wrap

Rear axle of car central rotation

Spiral bevel gear

Differential device

Closed type, 4 planet bevel gears

Differential lock

Meshing model

Latter final transmission

The single stage planet gear type, sets outside the rear both sides

In front of first driving axle central transmission

----

First differential device

----

First final transmission

----

Transfer

----

Front wheel tire specification

6.5-20

Trailing wheel tire specification

16.9-34/14.9-30or13.6-38

Changes the form

The independent oil duct, the entire hydraulic pressure front wheel changes

Travel brake

The static hydraulic pressure, the disc type, under the human control sets at the footboard

Parking brake

The handle operation, the multi-rubbing surface machinery contracts the oil bath type

Ploughs the deep control mode

The position control, the fluctuation control (elects to install strength position integrated control)

After system biggest lifting capacity (KN)
(point of suspension 610m place)

Being bigger than15

Suspension unit

After three is hanging

Dynamic output speed of spindle (r/min)

Postpositioned free standing760/1000

Draw gear form

Suspends the type draw link adjustable, the draw link position
