80HP 4x4 wheel tractor LT804 with Front Loader
Specifications: 80HP 4x4 wheel tractor LT804 with Front Loader
Adopt YTO engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
Operate independently of double-acting clutch, high transmission capacity, effective and reliable, comfortable operation
Gearbox using 4 × (4+2) engaging sleeve, shuttle-action gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;
Using an independent power output device, smooth transmission, large capacity;
Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and save energy;
Using static hydraulic disc brakes, a large brake torque, the braking effect is good;
Using extreme pressure type lifter. Independent oil supply, improve the performance of system, reliable, optional hydraulic output;
Final drive with planetary gear mechanism, compact structure, large reduction ratio;
Final drive with planetary gear mechanism, compact structure, large reduction ratio;
The new streamlined appearance, generous, modern and fashion.
Parameters: 80HP 4x4 wheel tractor LT804 with Front Loader
Tractor Model | LT804 | |
Driver Type | 4X4 | |
Dimension | Without Cabin: L×W×H(mm) | 4396mm*4396mm*2810mm |
With Cabin: L×W×H(mm) | 4080x2038x2810 | |
Wheel base(mm) | 2195 | |
Front wheel tread(mm) | 1610 | |
Rear wheel tread(mm) | 1620-2020 | |
Mini ground clearance(mm) | 379 | |
Mini turning radius | Unilateral brake(m) | 4.2±0.3 |
Not unilateral brake(m) | 4.9±0.3 | |
Mini Using Weight(KG) | 4090 | |
Numbers of the gear | 16F+8R | |
Speed | Forward(kw/h) | 1.58-33.69 |
Reverse(kw/h) | 2.41-34.67 | |
Engine | Model | LR4B5-23 |
Marked power (KW) | 59 | |
Rated revolution (r/min) | 2300 | |
Tires type | Front | 11.2-24 |
Rear | 16.9-34 | |
Steering | Independent oil circuit, Full hydraulic front wheel steering | |
Max.lifting capacity( KN ) | 14.2 | |
PTO | Type | Rear Mounted, Independently, |
Speed (r/min) | 760/1000 | |
Power(kw) | 51.2 | |
Control type of plough depth | Height adjustment and floating control | |
Front / rear Ballast (kg) | 270/470 | |
Notice: All above parameters are subject to change without notice because of rapid development of products. | ||

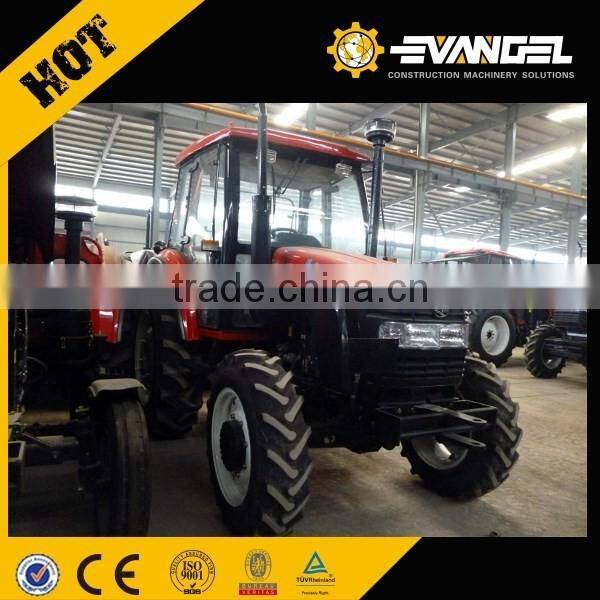

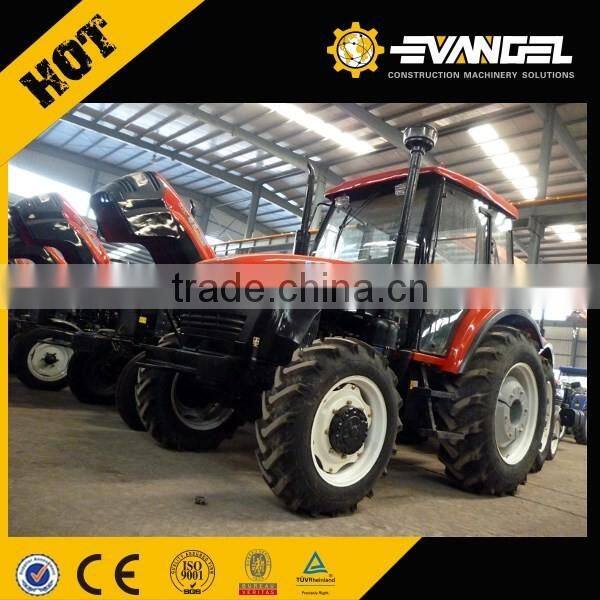

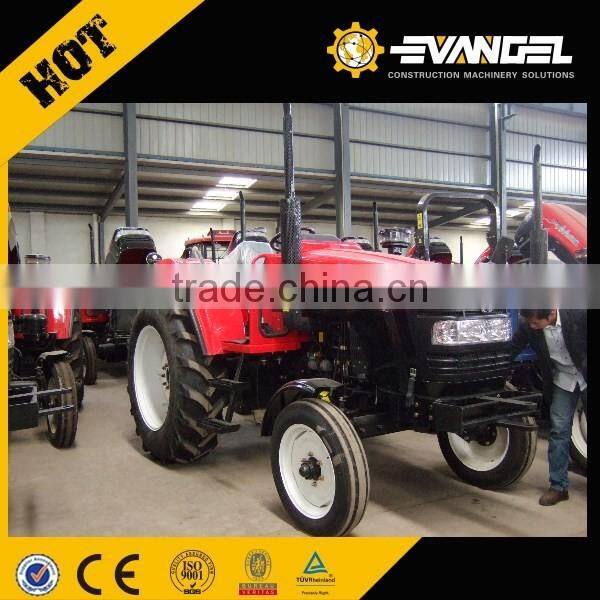

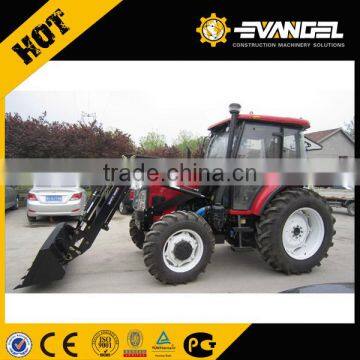

Photos: 80HP 4x4 wheel tractor LT804 with Front Loader
