Home > Transportation > Truck > Dump Truck > BEIBEN Hydraulic System for Dump Truck ND33100D39J7 8x4 Tipper Trucks for Sale

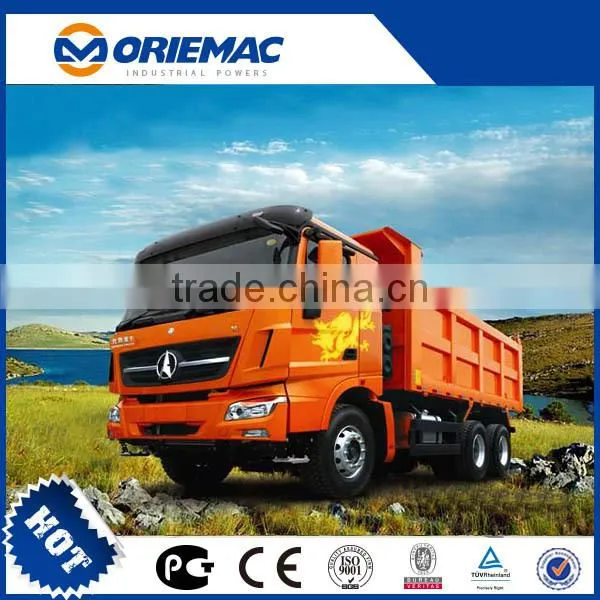

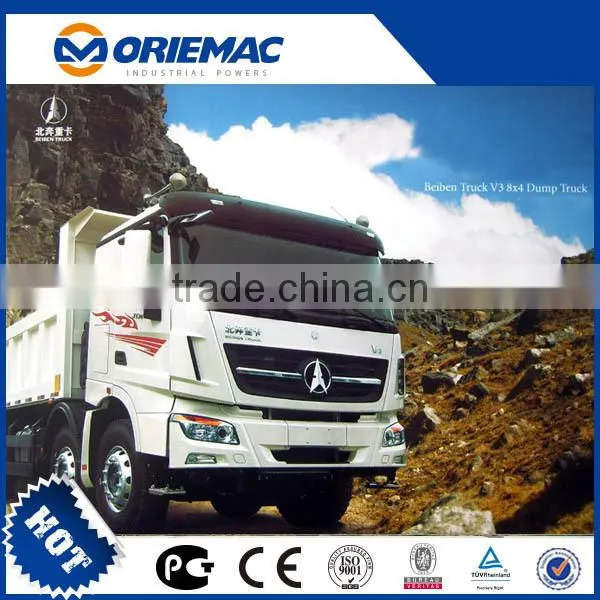

BEIBEN Hydraulic System for Dump Truck ND33100D39J7 8x4 Tipper Trucks for Sale
US$ 10,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
8x4
Capacity (Load):
31 - 40t
Horsepower:
351 - 450hp
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai tianjin qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BEIBEN 25TONS Dump Truck ND32501B41J7 TiresUS$ 10,000 - 100,000MOQ: 1 Unit -
BEIBEN Truck Tractor 6x6 All Wheel Drive ND42506B34J Mini Truck TractorUS$ 20,000 - 60,000MOQ: 1 Unit
-
Small Farm Tractor KAT Cheap Farm Tractor KAT1204 For SaleUS$ 1 - 50,000MOQ: 1 Unit
-
Non Asbestos Gasket Sheet Rubber Gasket Sheet for SaleUS$ 1.2 - 1.6MOQ: 1000 Sheets
-
Non Asbestos Sealing Rubber Sheet/graphite Gasket SheetUS$ 1.85 - 8.1MOQ: 1000 Sheets
Drive Wheel
8x4
Capacity (Load)
31 - 40t
Horsepower
351 - 450hp
Condition
New
Transmission Type
Automatic
Emission Standard
Euro 3
Fuel Type
Diesel
Gross Vehicle Weight
31000
Place of Origin
Inner Mongolia, China
Brand Name
BEIBEN
Model Number
ND33100D39J7
Dimensions (L x W x H) (mm)
11265*2500*3484
BEIBEN hydraulic system for Dump Truck ND33100D39J7 8x4 tipper trucks for sale
Product Description
| Type | Tipper Truck | |
| Traction Type | 8x4 | |
| Cabin | Model: ND33100D39J7 | |
| V3 lengthen flat roof cabin ,one sleeper,air condition | ||
| LxWxH(mm) | 8300x2300x1000 | |
| Vehicle Main Dimensions | Wheel base(mm) | 1950+4300+1450 |
| Front overhang(mm) | 1515 | |
| Rear overhang(mm) | 1985 | |
| Front/Rear truck(mm) | 2045/1872 | |
| Approach/Departure | 16/25 | |
| Frame section(mm) | 300x90x8+6+8 | |
| Weight | Kerb mass | 14870kg |
| Tatal mass | 31000kg | |
| Max.Drinving Speed(km/h) | 90 | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E 32 EGR / WP10.380E 32 EGR | |
| Type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging &inter cooling | |
| Horse Power(hp) | 375/380 | |
| Displacment | 9.726L | |
| Max.output | 250/280kw | |
| Max.torque | 1160N.m@1200-1600rpm/ 1460N.m@1200-1600rmp | |
| Emission Standard | EURIII | |
| Axle | Front | 6.5t benz |
| Rear | double reduction driving axle ration:5.921 | |
| Gearbox | 12JS160T/12JS200T | |
| Steering | TAS85 | |
| Fuel Tank(L) | 300L(aluminum) | |
| Tire | 12.00R20 | |
