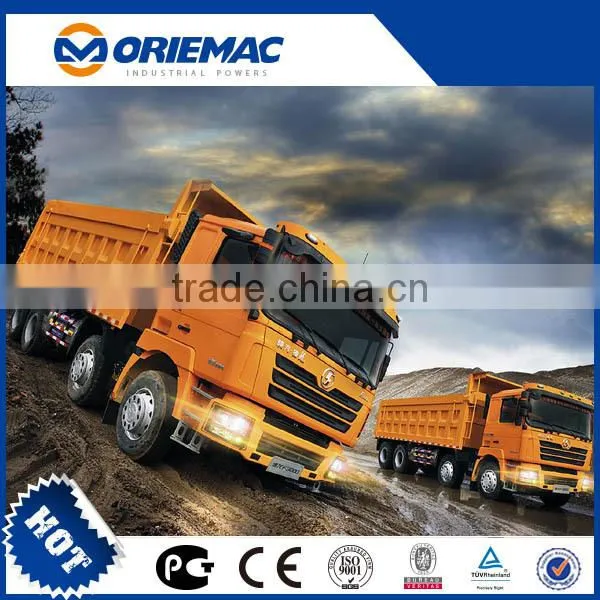

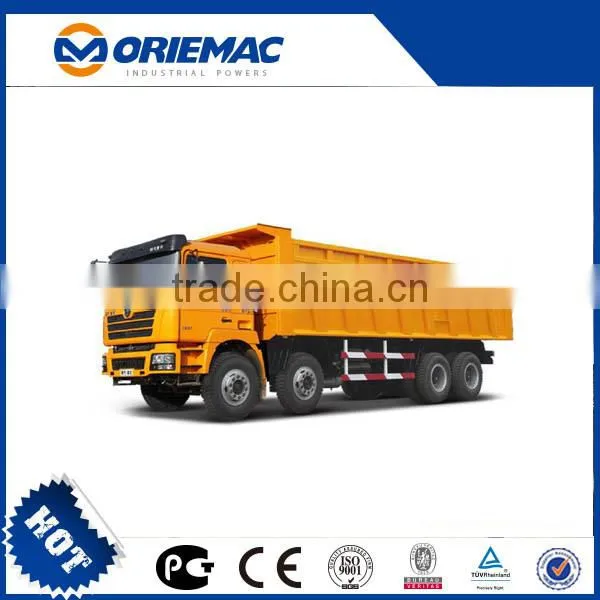

SHACMAN 4x4 mini dump truck SX3255DN384C lift axle for dump truck

Chassis model

SX3255DN384C

Vehicle

spec.

Overall dimensions(mm)

8329*2490*3450

Body internal dimensions(mm)

5600*2300*1500

Weight(kg)

GVW

25000

Payload weight

12470

Curb weight

12400

Approach/departure angle(°)

28/30

Front/Rear overhang(mm)

1525/1525

Fuel type

Diesel

Fuel consumption(100km/L)

28.5

Max speed (km/h)

90

Engine

spec.

Model

WP10.336

Displacement(cc)

9726

Horsepower(kw/ps)

213/336

Engine type

6 cylinder,in-line , turcharger and after cooled

Chassis

spec.

Drive style

6*4

Wheelbase(mm)

3800+1350

Front tread(mm)

2035

Rear tread(mm)

1850/1850

Front axle loading(T)

MAN 7.5T

Rear axle loading(T)

MAN 13T

Gearbox

9 speed

Brake

By air,with power assisted , pressure boost

Tyre spec.

11.00R20

Tyre nos.

10+1(spare part)
