N. Traffic 24m Small Telescopic Aerial Work Platform (ZS24)
US$ 35,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
N.Traffic
Model Number:
ZS24
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N. Traffic 24m Telescopic Work Platform (ZS24)US$ 35,000 - 50,000MOQ: 1 Set -
N. Traffic 16m Mobile Aerial Work Platform(ZZ16M/AC)US$ 40,000 - 50,000MOQ: 1 Set
-
N. Traffic Articulating Aerial Working Platform(ZZ16M/AC)US$ 40,000 - 50,000MOQ: 1 Set
-
N. Traffic Articulated Aerial Work Platform (ZZ16M/AC)US$ 40,000 - 50,000MOQ: 1 Set
-
N. Traffic Heavy Duty Tow Trucks for Sale KFM5257TQZ08SUS$ 60,000 - 90,000MOQ: 1 Set
Place of Origin
Liaoning, China
Brand Name
N.Traffic
Model Number
ZS24
Specifications
N. traffic 24m small telescopic aerial work platform (ZS24)telescopic boom lift work platform
telescopic work aerial platform

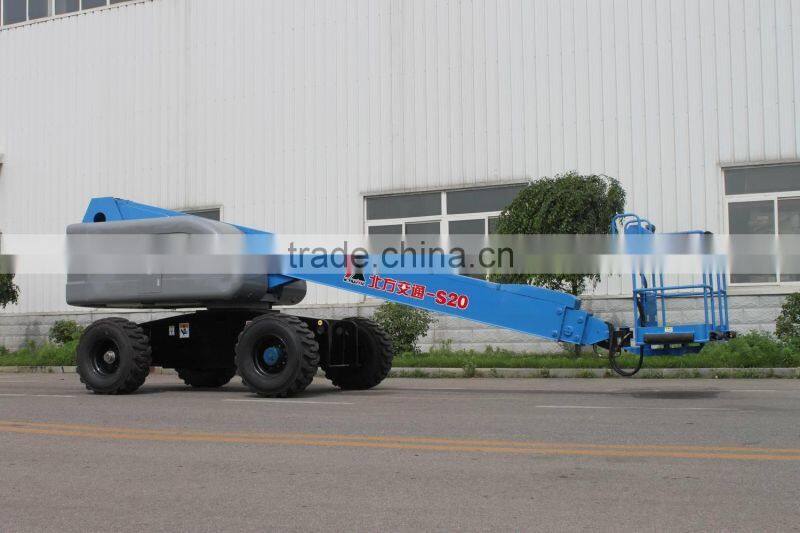

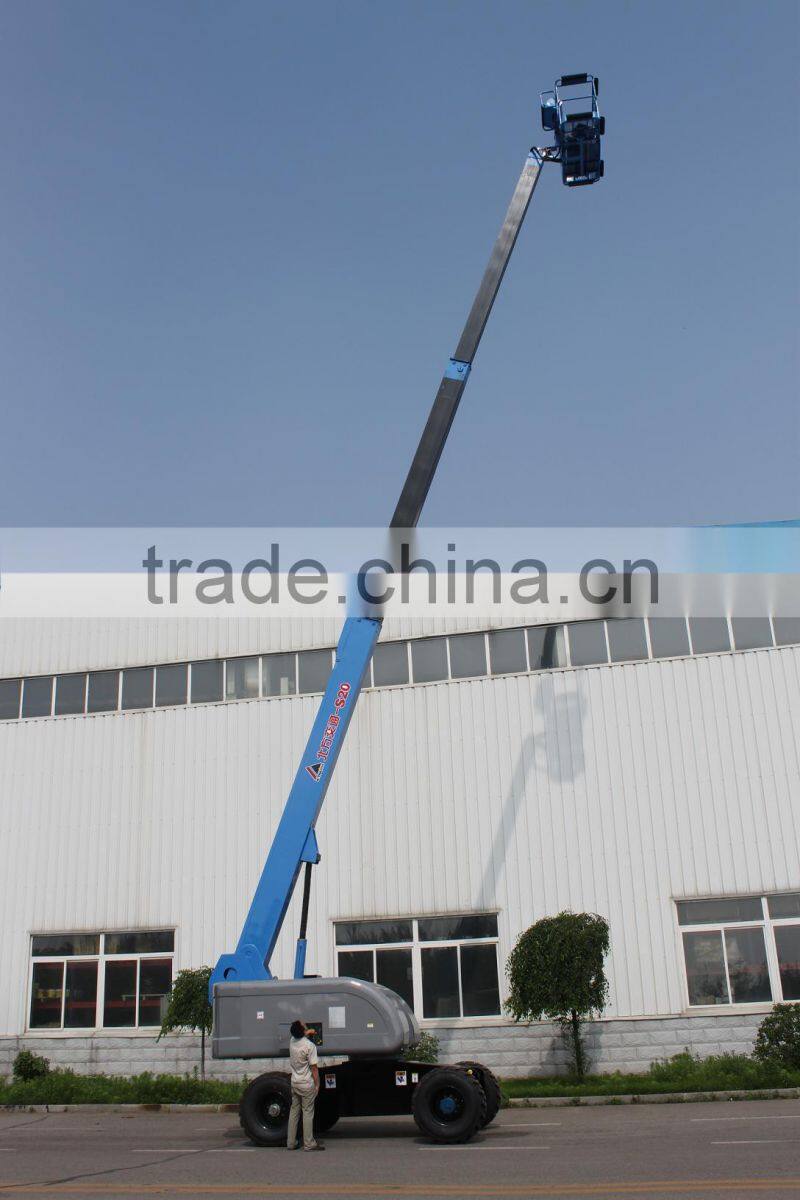

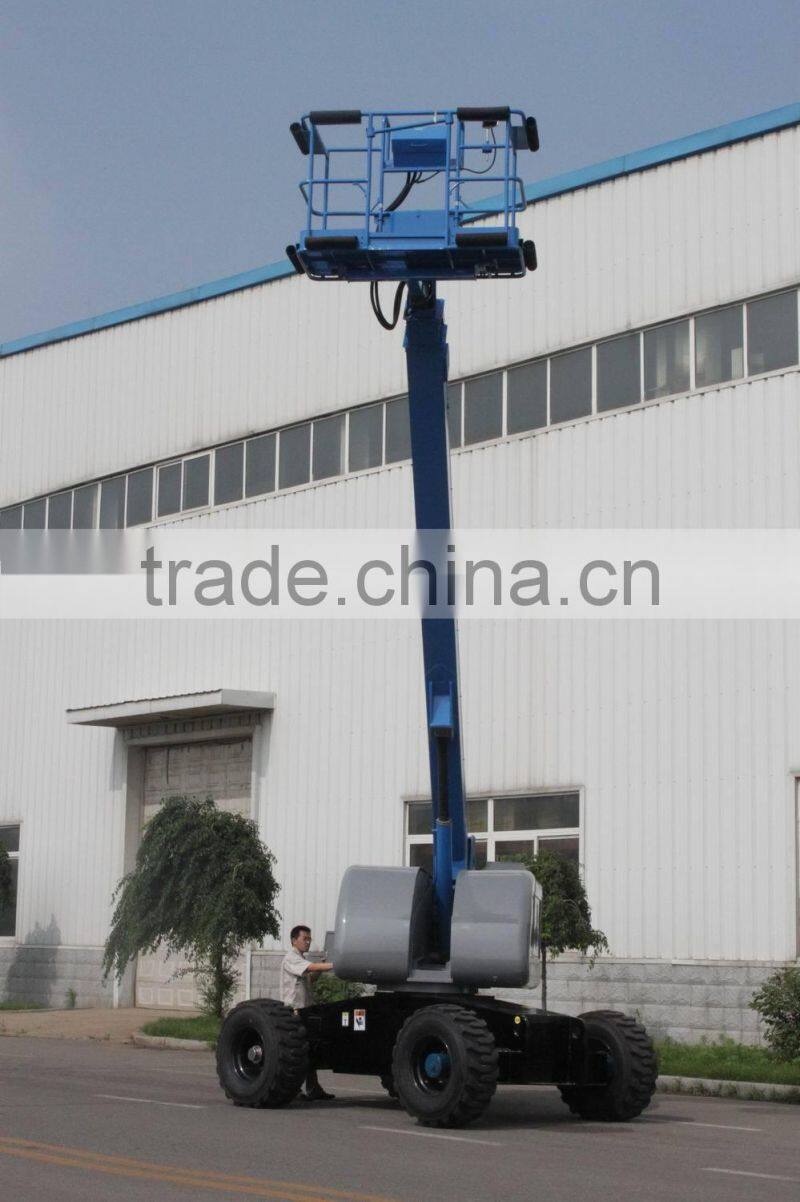

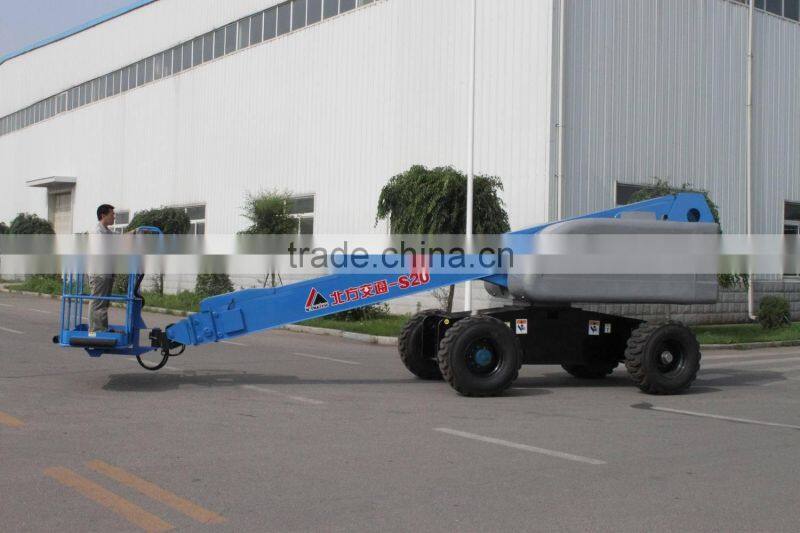

N. traffic 24m small telescopic aerial work platform (ZS24)
|
Model |
ZS24 | ZS26 | ZS30 | ZS32 | ZS36 | ZS38 | |
|
Main dimension parameter |
ing height |
26m | 27.5m | 32.2m | 33.7m | 38.3m | 39.8m |
|
Max.platform floor height |
24.3m | 25.8m | 30.5m | 32m | 36.6m | 38.1m | |
|
ing outreach |
21.9m | 23.4m | 22.9m | 24.3m | 22.9m | 22.9m | |
|
Working basket length |
1.8m | 1.8m | 1.8m | 1.8m | 1.8m | 1.8m | |
|
Working basket width |
0.76m | 0.76m | 0.76m | 0.76m | 0.76m | 0.76m | |
|
Working platform height |
1.1m | 1.1m | 1.1m | 1.1m | 1.1m | 1.1m | |
|
The whole vehicle retracting length |
12.4m | 12.4m | 13m | 14.2m | 13m | 14.25m | |
|
The whole vehicle retracting width |
2.44m | 2.44m | 2.54m | 2.54m | 2.54m | 2.54m | |
|
The whole vehicle retractiong height |
2.79m | 2.79m | 3.07m | 3.07m | 3.07m | 3.07m | |
|
Axle base |
2.7m | 2.7m | 3.65m | 3.65m | 3.65m | 3.65m | |
|
Min. platform floor height |
0.28m | 0.28m | 0.44m | 0.44m | 0.44m | 0.44m | |
|
Main technical parameter |
Working basket load |
270kg | 227kg | 270kg | 227kg | 270kg | 340kg |
|
The working platform rotation |
160° | 160° | 160° | 160° | 160° | 160° | |
|
Turret rotation |
360° | 360° | 360° | 360° | 360° | 360° | |
|
The max.acutating speed(retracting) |
4.8km/h | 4.8km/h | 4.4km/h | 4.4km/h | 4.4km/h | 4.4km/h | |
|
The max. acutating speed (rising and streching ) |
1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | |
Grade ability(retracting) 4×2 |
0.6km/h | 0.6km/h | 0.6km/h | 0.6km/h | 0.6km/h | 0.6km/h | |
|
Turning radius(inside) |
30% | 38% | --- | --- | --- | --- | |
|
Turning radius(outside) |
45% | 40% | 40% | 40% | 40% | 40% | |
|
Voltage of the system , |
3.2m | 3.2m | 3.1m | 3.1m | 3.1m | 3.1m | |
|
Tire type |
7m | 7m | 6.3m | 6.3m | 6.3m | 6.3m | |
|
Power parameter |
Power source | Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
Deutz4(cylinder) BF4L-2011 Wind cooler diesel oil (power):55kw |
|
Emergency power source |
125L | 125L | 208L | 208L | 208L | 208L | |
|
Hydraulic oil tank volume |
170L | 170L | 151L | 151L | 151L | 151L | |
|
Weight parameter |
G.V.W. |
15760kg | 16828kg | 18166kg | 18320kg | 20434kg | 20457kg |
|
Max. wheel load |
7439kg | 8165kg | 7391kg | 7391kg | 8207kg | 8253kg | |
|
Partial pressure of one tire |
689kpa | 689kpa | 690kpa | 690kpa | 690kpa | 690kpa | |
