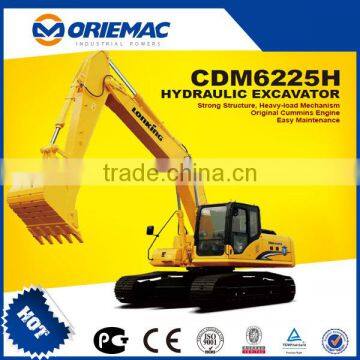

Products & Applications CDM6225H features:
CDM6225H with strong, powerful and high quality engine and advanced negative flow control hydraulic system to achieve the best power matching and minimum costand guarantee the optimum working efficiency. Action agile strong digging force.Widely used in mining, road construction, national defense construction, municipal construction, hydroelectric project, etc. With the optional breaking hammer, the building demolition, road surface repair and rock breaking can be achieved.
6BTAA5.9-C
The original high power, high torque and turbo-charging 6-cylinder direct injection engine guarantees the high reliability and durability. The charge air cooling system over the compressed air can enhance the oxygen content upon combustion markedly. The center fuel injection under high injection pressure allows the uniform atomizing of fuel, guarantees the normal combustion and reduces the exhaust gas emission. And the engine conforming to Euro ⅢA emission standard is optional.
| Specifications | CDM6225H | |
| Engine | Model | 6BTAA5.9-C |
| Rated power | 133kW (178hp) /2000 rpm | |
| Max. torque | 708N.m/1500 rpm | |
| Bore× Stroke | 102mm×120mm | |
| Displacement | 5.9 L | |
| Comment | Maintain the rated power at 2300m elevation. | |
| Operating weight | Summary |
Operating weight:22100kg The operating weight includes the weight of 5700mm standard boom,2900mm standard arm, 1.1m3 standard bucket,600 mm track, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.. |
| Ground pressure | 45 kPa | |
