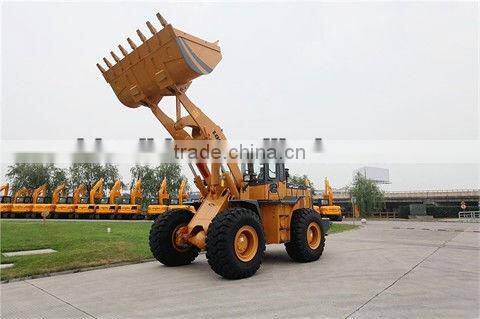

Lonking Mini Wheel Loader 5 Ton CDM855F
US$ 1 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Lonking
Model Number:
CDM855F
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.6 Ton Lonking Mini Wheel Loader CDM816DUS$ 1 - 10,000MOQ: 1 Unit -
Lonking 5ton Wheel Loader CDM855E for SaleUS$ 1 - 10,000MOQ: 1 Unit
-
Lonking 4ton Wheel Loader CDM843US$ 1 - 10,000MOQ: 1 Unit
-
3 Ton Lonking Wheel Loader Longgong Wheel Loader CDM833US$ 1 - 10,000MOQ: 1 Unit
-
Lonking Crawler Excavator CDM6225HUS$ 60,000 - 120,000MOQ: 1 Set
Condition
New
Brand Name
Lonking
Model Number
CDM855F
Place of Origin
Fujian, China
Type
Front Loader
Moving Type
Wheel Loader
Rated Load
5ton
Certification
ISO9001
Warranty
Ony year warranty
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Lonking Mini Wheel Loader 5 ton CDM855F1. WEICHAI WD10G220E21 engine, 162 KW
2. Hydraulic system
3. Bucket capacity: 3 M3
Lonking Mini Wheel Loader 5 ton CDM855F
Construction Machinery CDM855F features:
Powerful Weichai Engine
Control System
Automatic Leveling
Automatic Leveling
Convenient Maintenance
| Overall Data | Steering System | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bucket Capacity (m3) | 3 | Type | Hydraulic Load Sensing | ||||||||||||
| Rated Payload(kg) | 5000 | Cylinders-Bore× Stroke(mm) | 2-100×324 | ||||||||||||
| Operating Weight(kg) | 17700±300 | Steering Pump | Gear Pump | ||||||||||||
| Traction Force(kN) | 155±3 | System Pressure(MPa) | 16 | ||||||||||||
| Breakout Force(kN) | 170±3 | Flow rate(L/m in/rpm) | 176/2200 | ||||||||||||
| Travel speeds (km/h): | Steering Angle | ±35° | |||||||||||||
| I | II | Hydraulic System | |||||||||||||
| Forward | 11.5 | 36 | Lift Cylinders-Bore× Stroke(mm) | 2-180×721 | |||||||||||
| Reverse | 16 | Tilt Cylinder-Bore× Stroke(mm) | 1-200×563 | ||||||||||||
| Engine | WEICHAI WD10G220E21 | Model of Implement Pump | Gear Pump | ||||||||||||
| Rated Power(kw/rpm) | 162/2200 | Flow rate(L/min/rpm) | 220/2200 | ||||||||||||
| Peak Torque(Nm/rpm) | 850/1400-1600 | System Pressure(MPa) | 16 | ||||||||||||
| Starting Voltage(V) | 24 | Pilot Control System Pressure (MPa) | 2.5 | ||||||||||||
| Drive Train | Hydraulic Cycle Time, Rated Load In Bucket(In Second): | ||||||||||||||
| Torque Converter | Single-stage, Duo-turbine, 4-elements | Raise(Loaded) | Dump | Lower(Empty) | Total | ||||||||||
| Torque Ratio | 4 | 6 | 1 | 4 | 11 | ||||||||||
| Transmission | Planetary Power shift Transmission | Electrical System | |||||||||||||
| Gear | 2F/1R | System Voltage(V) | 24 | ||||||||||||
| Pressure of Transmission(MPa) | 1.2-1.5 | Battery (2 in series)(Ah) | 120 | ||||||||||||
| Main Reducer | Spiral bevel, 1-stage Reduction | Lamp Voltage(V) | 24 | ||||||||||||
| Final Reducer | Planetary Reduction | Service Refill Capacity | |||||||||||||
| Tire | 23.5-25 L-3 16PR | Fuel Tank(L) | 285 | ||||||||||||
| Brake System | Hydraulic Tank(L) | 285 | |||||||||||||
| Service Brake | Single Circuit Caliper, Dry Brake | Crankshaft(L) | 20 | ||||||||||||
| Setting Pressure (MPa) | 0.78 | Transmission(L) | 45 | ||||||||||||
| Parking Brake | Air Actuated Caliper Brake | Front Axle(L) /Rear Axle(L) | 23/23 | ||||||||||||
| Emergency Brake | Air Actuated Caliper Brake | ||||||||||||||
| Air Conditioning System | |||||||||||||||
| Heating Capacity(W) | 5300(±10%) | ||||||||||||||
| Cooling Capacity(W) | 4500(±10%) | ||||||||||||||
