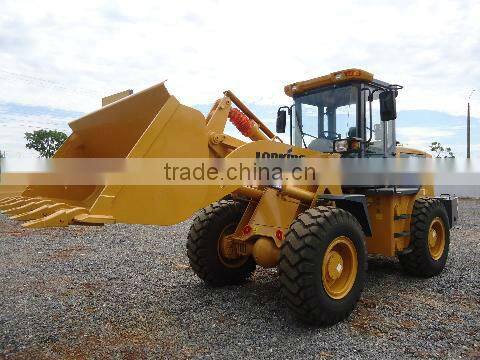

4ton Lonking Wheel Loader CDM843

Name: 4ton Lonking Wheel Loader CDM843
Brand: Lonking
SKU: 140719284
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

Lonking

Model Number:

CDM843

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Lonking

Model Number CDM843

Place of Origin Fujian, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7920*3050*3400mm

Rated Load 4 ton

Certification ISO9001

Warranty Ony year warranty

After-sales Service Provided Engineers available to service machinery overseas

4 ton Lonking Wheel Loader CDM843

								Air Conditioning System
Overall Data								Steering System
Bucket Capacity (m³)							2.3	Type			Hydraulic Load Sensor System
Rated Payload(kg)							4000	Cylinders-Bore×Stroke(mm)				2-90×340
Operating Weight(kg)							13000±300	Steering Pump				Gear Pump
Traction Force(kN)							120±3	System Pressure(MPa)				16
Breakout Force(kN)							115±3	Flow Rate(L/min/ rpm)				138/2200
Travel speeds (km/h):								Steering Angle ±35°				±35°
	I				II			Hydraulic System
Forward	11.5				36			Lift Cylinders-Bore×Stroke(mm)				2-125×769
Reverse	16							Tilt Cylinder-Bore×Stroke(mm)				1-160×495
Engine					WEICHAI WP6G175E22			Model of Working Pump				Gear Pump
Rated Power(kw/rpm)						129/2200		Flow Rate(L/min//rpm )				110/2200
Peak Torque(Nm/rpm)						680/1400-1600		System Pressure(MPa)				16
Starting Voltage(V)						24		Pilot Control System Pressure (MPa)				2.5
Drive Train								Hydraulic Cycle Time, Rated Load In Bucket(In Second):
Torque Converter			Single-stage, Duo-turbine, 4-elements					Raise(Loaded)	Dump	Lower(Empty)			Total
Torque Ratio			4					6	1.2	4.3			11.5
Transmission			Planetary Powershift Transmission					Electrical System
Gear			2F/1R					System Voltage(V)				24
Pressure of Transmission(MPa)							1.2-1.5	Battery (2 in series)(Ah)				120
Main Reducer		Spiral bevel, 1-stage Reduction						Lamp Voltage(V)				24
Final Reducer		Planetary Reduction						Refill Capacity
Tire		20.5-25 L-3 16PR						Fuel Tank(L)				240
Brake System								Hydraulic Tank(L)				240
Service Brake		Single Circuit Caliper, Air Brake						Crankshaft(L)				17
Setting Pressure (MPa)				0.78				Transmission(L)				45
Parking Brake				Flexible Shaft Controlled Caliper				Front Axle(L) /Rear Axle(L)				23/23
								Heating Capacity(W)				5800(±10%)
								Cooling Capacity(W)				4500(±10%)
