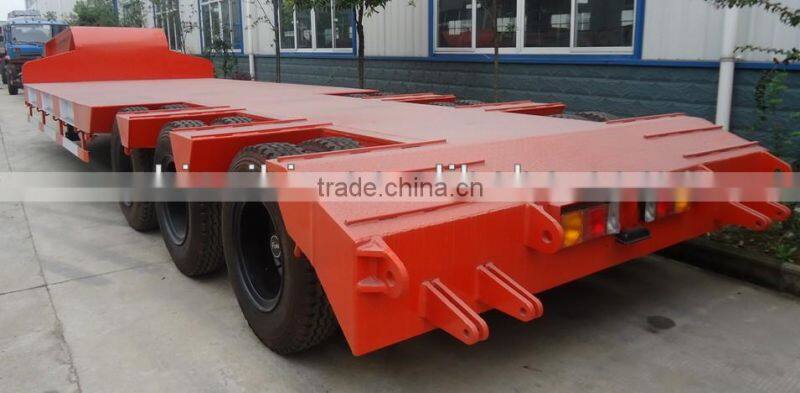

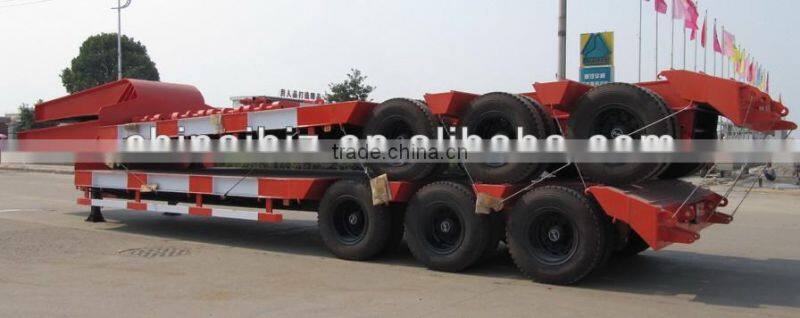

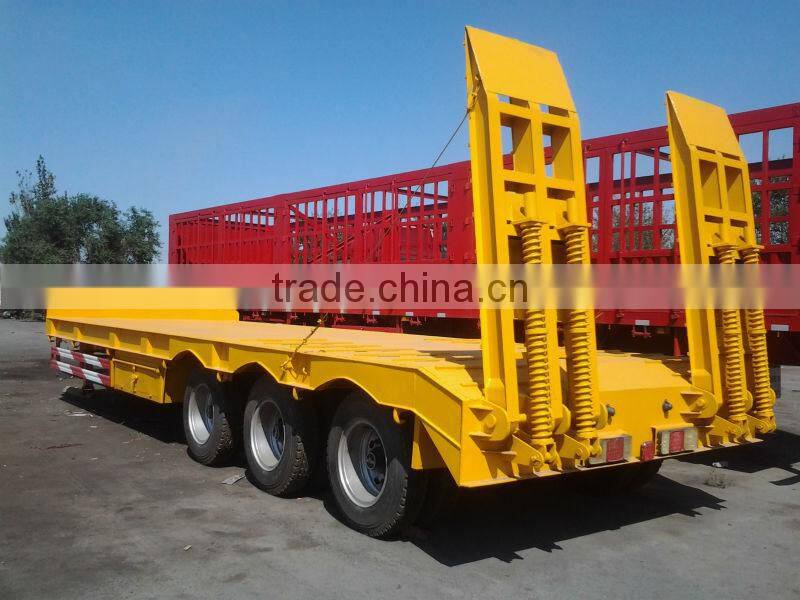

40 Feet Container Semi Trailer Low Bed Semi Trailer for Sale

Name: 40 Feet Container Semi Trailer Low Bed Semi Trailer for Sale
Brand: Longde
SKU: 140718704
Availability: InStock

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

US$ 20,000 - 30,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO90001-2008

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO90001-2008

Size 13000*3000*2015mm

OEM No. ~

Max Payload 30000kg

Place of Origin Hubei, China

Brand Name Longde

Model Number 9401TDP

Specifications

40 feet container semi trailer low bed semi trailer for sale
container truck semi trailer
low loader semi trailer

40 feet container semi trailer low bed semi trailer for sale

Kerb weight:10000kg
3 axle mechanism suspension
40T semi-trailer

Vehicle
Vehicle Name		3 axle low bed semi-trailer
Vehicle Model		9401TDP
Loading capacity		40T
Dimension Parameter
Overall length (mm)	13000
Overall width (mm)	3000
Overall height (mm)	2015
Wheelbase (mm)	8580+1310+1310
Front / rear suspension (mm)	-/1400
Front / rear tread (mm)	-/2180/2180/2180
Weight Parameter
GVW (kg)	40000
Payload weight (kg)	30000
Kerb weight (kg)	10000
Others
Spring leaf No.	-/8/8/8
Tyre type	8.25R20
Tyre No.	12
Suspension	3 axle mechanism suspension
Axle	3* 13T FUWA
Landing gear	Jost 28T, two-speed, manual operation
Material of main beam	16Mn
Main beam	Height: 500mm, top flange: 20mm, bottom flange:20mm, middle flange: 10mm
Platform plate	6mm diamond plate
Kingpin size	2” or 3.5”
Electrical	24V, 7 pin socket
Equipment	Double tyre carrier, one tool box
Painting	Sand blasting before painting, one coat of primer, anti-corrosion, two coat of finish painting, color can be choose as client request.
