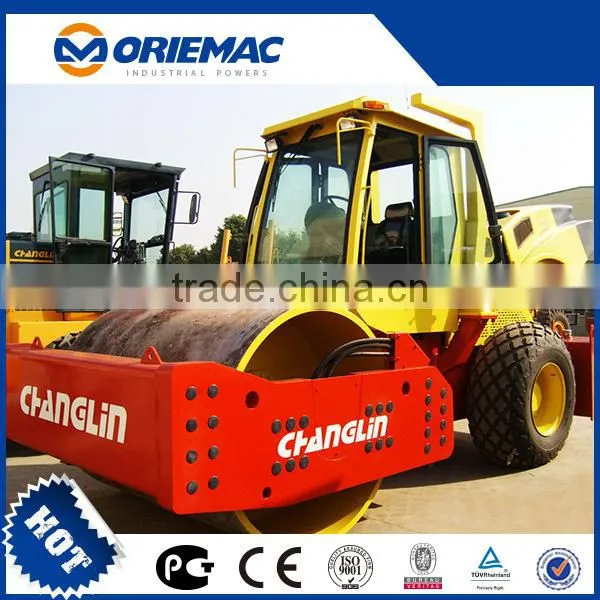

CHANGLIN YZ12H 12ton Single Drum New 1ton Compactor Vibratory Roller
US$ 10,000 - 34,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Travel Speed:
0-4km/h
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHANGLIN YZ12H 12ton Single Drum New Sakai Road RollerUS$ 10,000 - 32,600MOQ: 1 Set -
Hydraulic Single Drum Vibratory Road Roller Pharmaceutical Roller CompactorUS$ 10,000 - 31,300MOQ: 1 Set
-
14 Tons Changlin Vibratory Road Roller YZ14-3 Weight of Road for SaleUS$ 10,000 - 31,600MOQ: 1 Set
-
Liugong 3.5ton Changlin Double Drum Road Roller Yz20J Hamm Roller PartsUS$ 10,000 - 31,100MOQ: 1 Set
-
12ton Changlin Yz20 Vibrating Used Asphalt Rollers for SaleUS$ 10,000 - 33,000MOQ: 1 Set
Condition
New
Type
Single Drum Roller
Travel Speed
0-4km/h
Grade Ability
30%
Brand Name
Changlin
Model Number
YZ20J
Power(W)
128kw
Dimension(L*W*H)
6328*2460*3285mm
Weight
20000kg
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

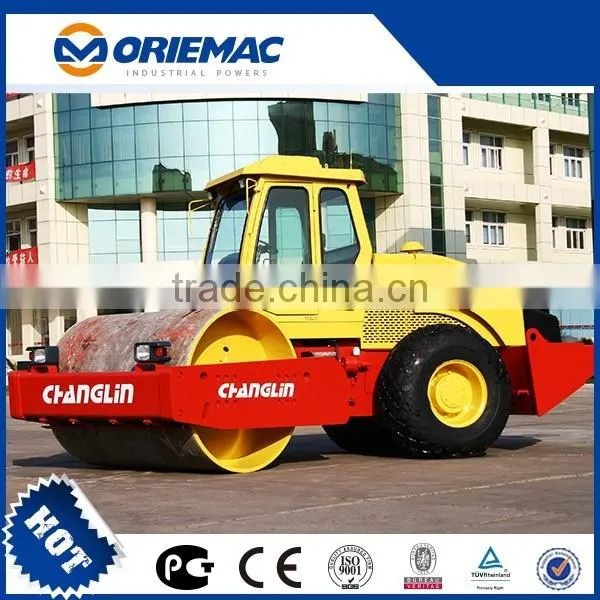

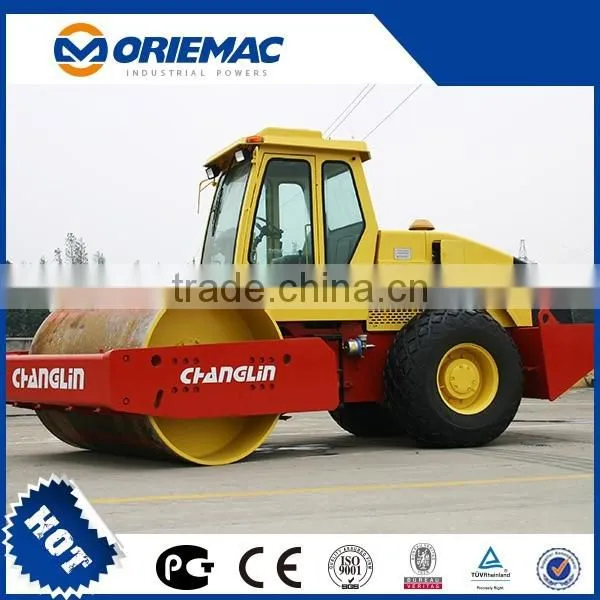

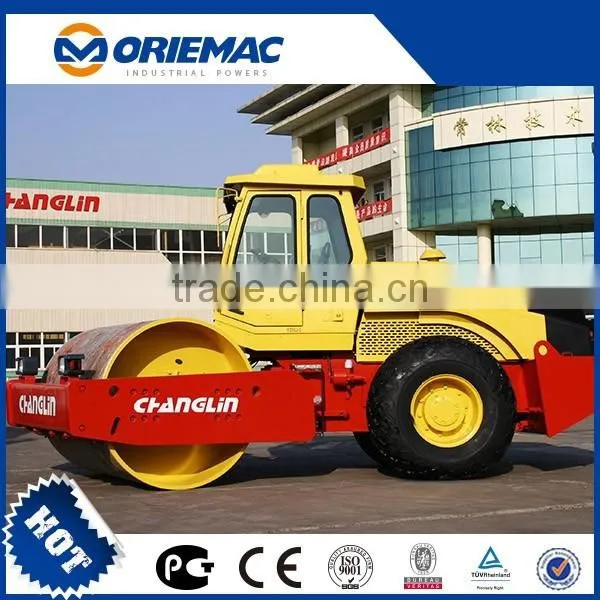

CHANGLIN YZ12H 12ton single drum new 1ton compactor vibratory roller
whatsApp/Tel:+86 18217056032
Overall Dimension | ||
1 | Length | 6328mm |
2 | Width(to outside of wheels) | 2461mm |
3 | Height(To the top of the cab) | 3285mm |
4 | Wheel base | 3153mm |
5 | Tread | 1645mm |
6 | Min. ground clearance | 430mm |
Main Technical Specification | ||
1 | Static line force | 474N/cm |
2 | Dynamic line force | 1659 N/cm |
3 | Operating weight | 20000kg |
4 | Nominal Amplitude high low | 1.9mm 1.0mm |
5 | Centrifugal-Force high low | 350kN 270kN |
6 | Total stress force | 46360(kg) |
7 | Static Weight at Drum | 10000kg |
8 | Static Weight at Tires | 10000kg |
9 | Frequency | 29/35Hz |
10 | Min. turning radius(Outside of rear wheel) | 6800mm |
11 | Drum diameter | 1600mm |
