high pressure engine pump
- 200 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | ANT | |
Model Number | HP15A | Theory | Jet Pump | |
Structure | Piston Pump | Usage | Water | |
Standard or Nonstandard | Standard | Fuel | Gasoline | |
Pressure | High Pressure | Application | Fire |
Product Description

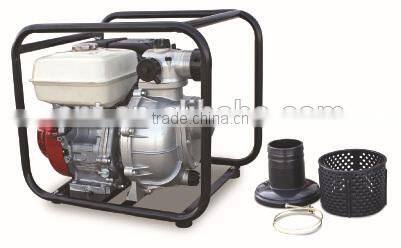

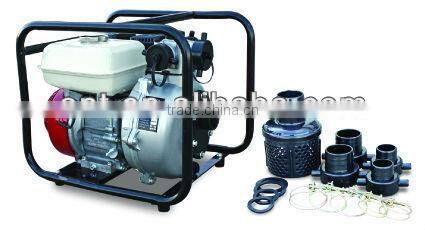

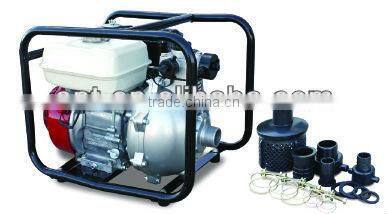

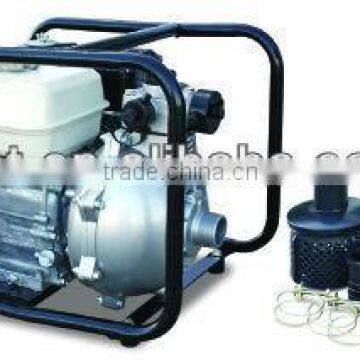

high pressure engine pump
SPECIFICATIONS:
- 100%copper wire, and automatic wiring.
- Brass impeller
- Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.
- CNC precision automatic lathe for smoother shaft, our owner casting factory
- Strict test including high-pot testing of stator coil and whole pump, outgasing test and performance test, ect
- New shape design with patent protection
- Anti-rust treatment castings and electrophoresis.
- 12 years experience, 6months warranty
High Pressure Pump | HP15A (single impeller) |
Engine | Honda GX160 5.5HP gasoline |
Engine type | 4stroke 1cylinder OHV air-cooled |
Input/output diameter | 40mm(1.5in) |
Current capacity | 20m3/h |
Stipulation lifting | 55m |
Suction stroke | 7m |
Packing | |
Weight | 25.5kgs |
Dimension | 49*39*42.5(L*W*H CM) |
20GP | 275PCS |
40GP | 600PCS |
Ant Machinery Water Pump 'WB' series:
Other types
HP15B
High Pressure Pump | HP15B (single impeller) |
Engine | Honda GX160 5.5HP gasoline |
Engine type | 4stroke 1cylinder OHV air-cooled |
Input/output diameter | 40mm(1.6in) |
Current capacity | 12m3/h |
Stipulation lifting | 75m |
Suction stroke | 7m |
Packing | |
Weight | 27.5kgs |
Dimension | 49*39*42.5(L*W*H CM) |
20GP | 275PCS |
40GP | 600PCS |
HP20A
High Pressure Punp | HP20A (single impeller) |
Engine | Honda GX160 5.5HP gasoline |
Engine type | 4stroke 1cylinder OHV air-cooled |
Input/output diameter | 50mm(2in) |
Current capacity | 30m3/h |
Stipulation lifting | 65m |
Suction stroke | 7m |
Packing | |
Weight | 29.5kgs |
Dimension | 52*40*45(L*W*H CM) |
20GP | 275PCS |
40GP | 550PCS |
HP30
High Pressure Punp | HP30 (single impeller) |
Engine | Honda GX160 5.5HP gasoline |
Engine type | 4stroke 1cylinder OHV air-cooled |
Input/output diameter | 80mm(3in) |
Current capacity | 40m3/h |
Stipulation lifting | 80m |
Suction stroke | 7m |
Packing | |
Weight | 42kgs |
Dimension | 65*46*53(L*W*H CM) |
20GP | 160PCS |
40GP | 360PCS |
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery.
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields like municipal engineering, bridges, tunnels, water conservancy and electric power engineering and sold to many countries and areas of Europe, America, southeast Asia and Africa.
Assembly of garbage truck | hand barrow machine | farm equipment | tractor dump truck | garden dumper truck machine | mini dumper | power barrow
We attend Bauma China, Canton Fair and twicw abroad exhibition every year.
*Q:What's your MOQ of this term?
A:1 unit
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months after use or 1 year after leave factory.
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight
*Q:What's your delivery time?
A:Delivery timely about 15-20 days after receiving the deposit
Nantong Ant Machinery Co., Ltd.
Add: No. 280 Fuyuan Road, Qidong, Jiangsu Province, China.
Tel: 0086-513-68881084
Web:
Thanks for your time!
Wish your inquiry!
