Negotiable
MOQ: 3 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ANT
Model Number:
BY250
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250kgs/6cu.ft. Small Wheel Loader BY160V-100 With CE/EPANegotiableMOQ: 3 Units -
100kgs Min Wheel Loader BY160V-60 With CE/EPANegotiableMOQ: 5 Units
-
Electric Garden Cart BY250 With CEUS$ 500 - 2,000MOQ: 3 Units
-
Wheel Loader Front Snow ShovelNegotiableMOQ: 3 Pieces
-
Mini Loader Muck Truck Power Barrow Small Dump Truck BY800 With CE 800kg LoadingNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ANT
Model Number
BY250
Tray Material
Metal
Wheel Type
Pneumatic Wheel
Load
250kg
Water Capacity
170L
Garden Loader Mini Dumper BY250:
Wheel Barrow BY250 can be used widely in life with its characteristic of flexibility and handleability.

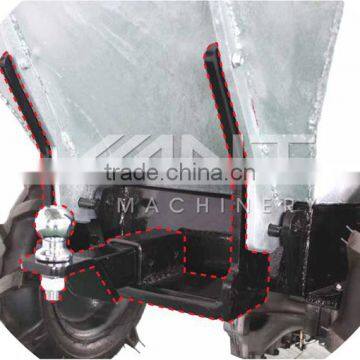

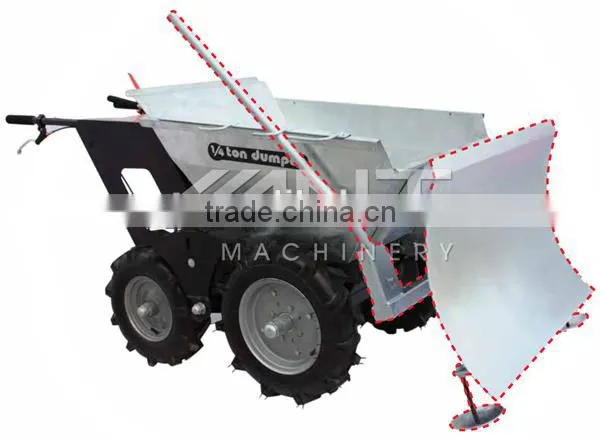

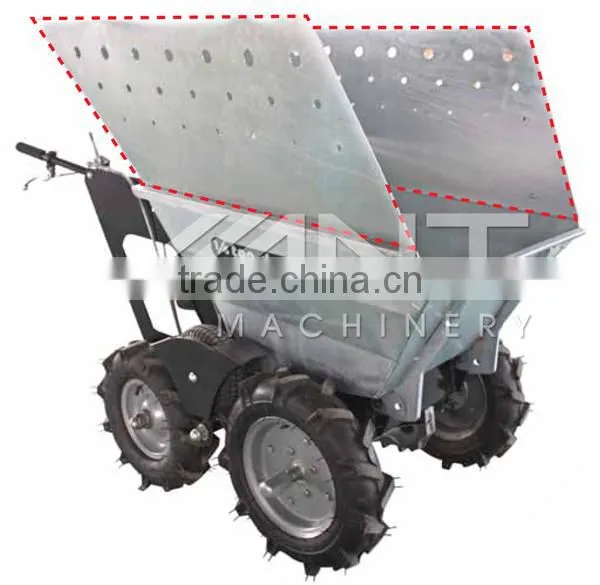

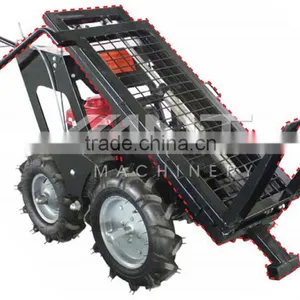

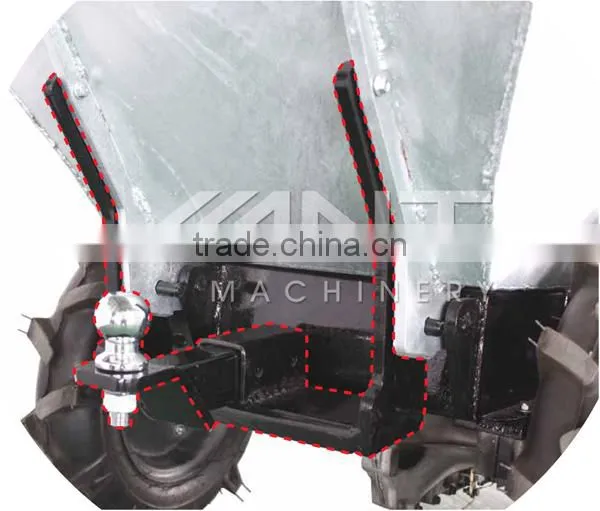

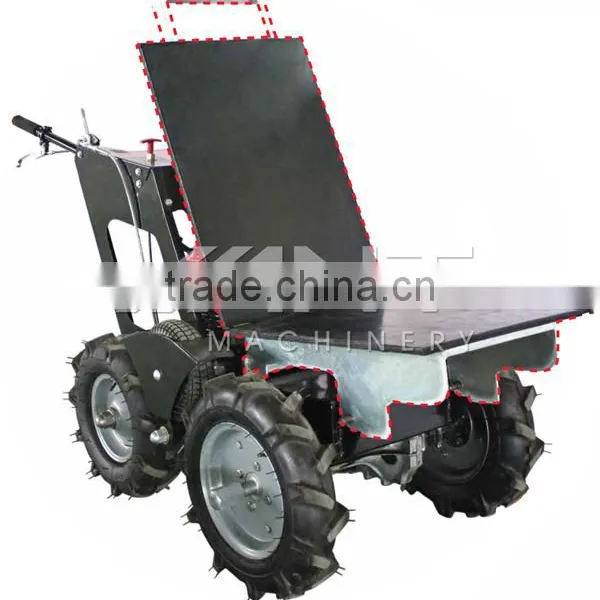

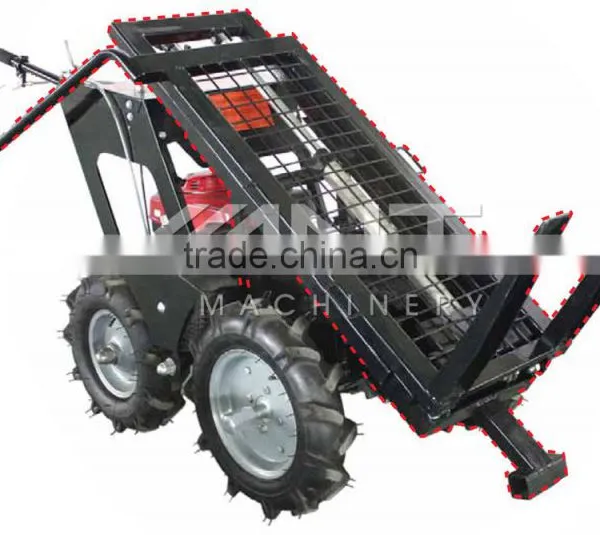

You can use it in your home garden, agricultural cultivation and also at construction site. Based on this, we even develop accessories like flatbed, powerlift, extensides,powerlift and ballhitch to make it be used with great facility. Also we have confirmed our sales agent of wheel barrow series in Alstralia, Germany, Malaysia and so on.
Specifications:
| MODEL | BY250 |
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Transmission | mechanical transaxle |
| Speed | 4 forward/1 null/1 reverse speeds |
| Capacity | 6cu.ft.(170L) or 1/4 tone(250kgs) |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | yellow plastic spray |

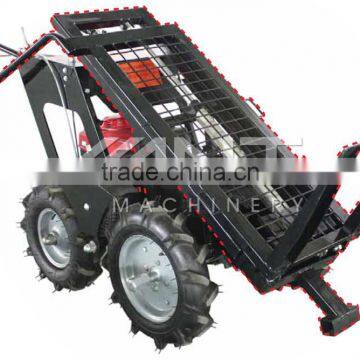

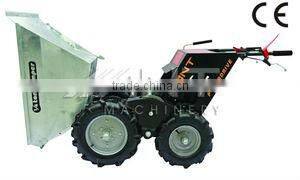

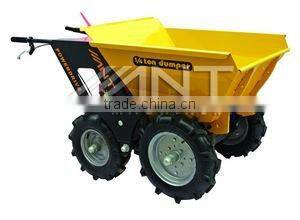

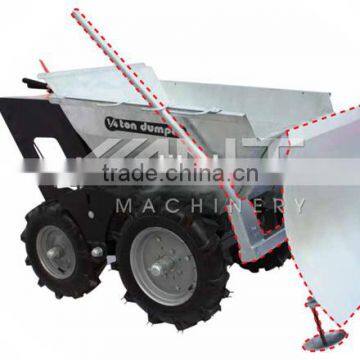

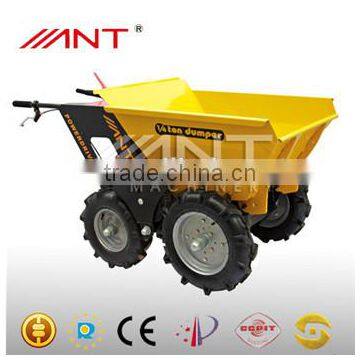

Pictures of wheel barrow BY250:
Power Barrow Series:

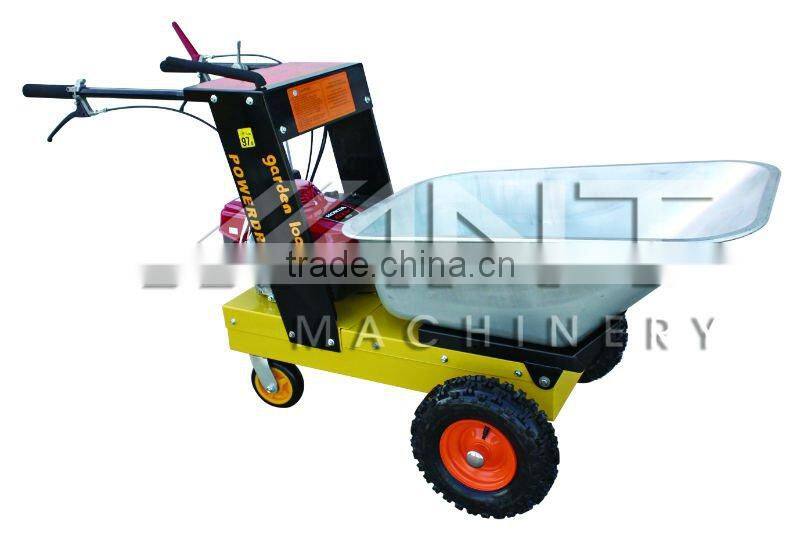

BY150
| MODEL | BY150 |
| Engine | Loncin 4hp gasoline |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Capacity | 85L or 150KG weight |
| Transmission | mechanical transaxle |
| Speed | 4 forward/1 null/1 reverse speeds |
| Forward speed | 3.6km/h |
| Reverse speed | 2km/h |
| Front wheel dia | 12"/pneunatic tyre |
| rear wheel dia | 6" /solid tyre |
| Drum Material | aluminum alloy |
BY250X
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Engine start | electric |
| Dumping | electric automatic |
| Transmission | mechanical transaxle |
| Speed | 4 forward/1 null/1 reverse speeds |
| Capacity | 6cu.ft.(170L) or 1/4 tone(250kgs) |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | yellow plastic spray |
| Packing | |
| Weight | 121kgs |
| Dimension | 128*74*106(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |

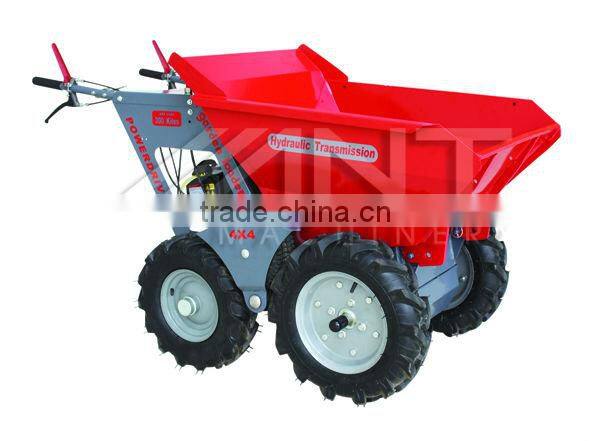

BY300
| MODEL | BY300 |
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Transmission | hydro-gear assembled in USA |
| Speeds | stepless forward and reverse |
| Capacity | 6cu.ft.(170L) or 300kgs |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | red plastic spray |
| Packing | |
| Weight | 131kgs |
| Dimension | 128*74*108(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |

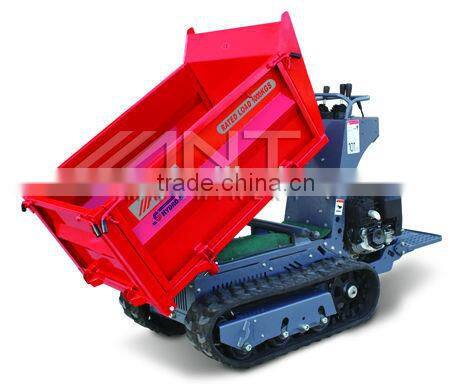

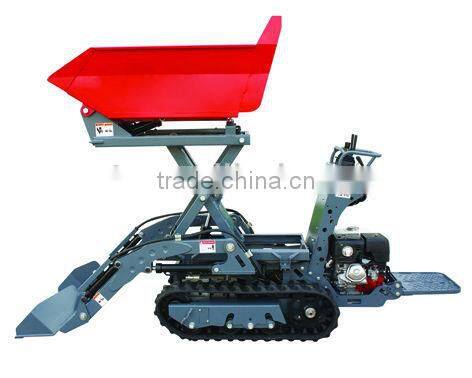

BY800
| MODEL | BY800 |
| Engine | 13hp 4stroke gasoline or diesel |
| Operative weight | 800kgs(1762lbs) |
| Max travel speed | 0-4.8km/h(0-3.0mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4Vmin(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Hydraulic pump | Gear pump |
| Flow | 1*13.5Vmin(1*3.5gpm) |
| Hi-flow | 1*22Vmin(1*3.5gpm) |
| Max pressure | 150bar(2180psi) |
| Main valve | 2-3way |
| Cooled system | air-cooled |
| Skip tipping system | Hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | Yes |
| Track tensioning | Yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 650kgs |
| Dimension | 220*96*145(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |
BY1000
| Engine | 13hp 4stroke gasoline engine |
| Max loading capacity | 1ton |
| Max travel speed | 0-4.8km/h(0-3.9mph |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4l/min(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | mechanical |
Lower fuel consume, gasoline engine,low noise !
