Home > Products > Power Barrow > Mini loader Muck truck Power barrow Small dump truck BY800 with CE 800kg loading
Mini loader Muck truck Power barrow Small dump truck BY800 with CE 800kg loading
- 300 Piece / Pieces per Month
- Shanghai
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ANT | Model Number: | BY800 |
Usage: | Tools | Structure: | Platform | Material: | Plastic |
Wheel: | Four-wheel |
Product Description
Mini loader Muck truck Power barrow Small dump truck BY800 with CE 800kg loading
Power Barrow BY800 can be used widely in life with its characteristic of flexibility and handle ability.
You can use it in your home garden, agricultural cultivation and also at construction site.
Based on this, we even develop accessories like forklift, power tiller, trench digger, scraper pan and, quartering hammer and grader to make it be used with great facility. Also we have confirmed our sales agent of wheel barrow series in Australia, Germany, and Malaysia and so on.
Specifications:
Model | BY800 |
Engine | Honda GX390 13HP gasoline/B&S/Kama Diesel |
Type | Hydra-static |
Operative weight kgs(lbs) | 800 (1762) |
Max travel speed km/h(mph) | 0-4.8(0-3.0) |
Transmission |
|
Hydraulic pump | 2 x variable displ. |
Flow Vmin(gpm) | 2 x 32.4 (2 x 8.5) |
Hydraulic motors | 2 x orbital |
Brake parking | Mechanical |
Hydraulic system |
|
Hydraulic pump | Gear pump |
Flow Vmin(gpm) | 1 x 13.5 (1 x 3.5) |
Hi-flow Vmin(gpm) | 1 x 22 (1 x 3.5) |
Max pressure bar(psi) | 150 (2180) |
Main valve | 2-3 way |
Cooled system | air-cooled |
Skip tipping system | Hydraulic |
Tracks |
|
Standard track width mm(in) | 180 (7.1) |
Track roller | 3 |
Rocking rollers | Yes |
Track tensioning | Yes |
This power barrow can be lifted to 1.45m high(rock bottom) which mke it easy to dump to the truck like the picture below:

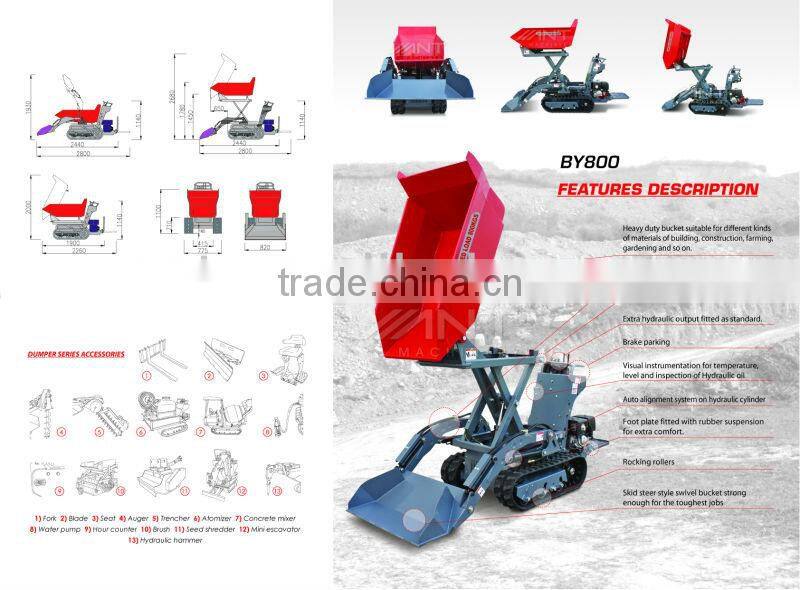

BY800 with humanized design :
Details of our product:
