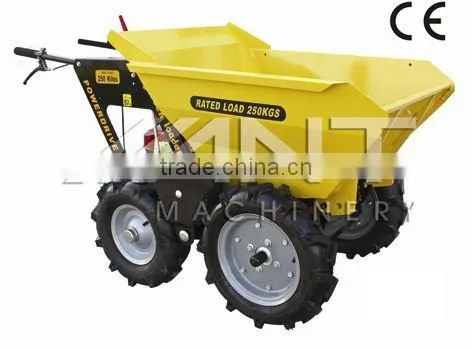

250KGS Mini Dumper BY250(BY160V-100)

mini dumper BY250(BY160V-100)

Engine :Honda GXV160 5.5HP

Transmission: Peerless transaxle 4 forward / 1 reverse speed

Capacity:6cu.ft. or 1/4 tone(250kg) weight

Brake:Disk , Cabels:protected

Wheels:Front 400×10,4 ply,rear 400×8 Drum

Material:Plastic-spray

Optional engines: B&S, Kohler and Loncin gasoline engine

ANT MACHINERY 'BY' series power barrow/mini dumper/garden loader

 - BY250(160V-100), 250kgs capacity, 5.5hp, mechanical 4-forward/1-reverse speed

 - BY300, 250kgs capacity, 5.5hp, hydraulic stepless speed

 - BY100(160V-60), 100kgs capacity, 4hp, mechanical 4-forward/1-reverse speed.

BY250(160V-100) (mechanical transmission)

Engine : Honda  GXV160  5.5HP

Transmission: Peerless transaxle 4 forward / 1 reverse speed

Loading ability:6cu.ft. or 1/4 tone(250kg) weight

Brake:Disk  ,   Cabels:protected

Wheels:Front 400×10,4 ply,rear 400×8

Drum Material: Hot dip material

Optional engines: B&S or Chinese Loncin gasoline engine

BY300 (hydraulic stepless transmission)

Engine : Honda GX160 5.5HP

Transmission: Stepless speed changes

Loading ability:6cu.ft. or 1/4 tone(250kg) weight

Brake:Disk  ,   Cabels:protected

Wheels:Front 400×10,4 ply,rear 400×8

Drum Material: Hot dip galvanizing

Optional engines: B&S or Chinese Loncin gasoline engine

BY100(160V-60) (mechanical transmission)

Engine : 4HP 4 stroke single cylinder gasoline engine

Transmission: Peerless transaxle 4 forward / 1 reverse speed

Loading ability:85L or 100KG weight

Brake:Disk  ,   Cabels:protected

Forward speed:3.6km/h, Reverse speed:2km/h

Front wheel: dia 12"/pneunatic tyre,rear wheel dia: 6"/solid tyre

Drum Material: cold-dip galvanization

Optional engines: Honda gasoline engine

---------------------------------------

ANT MACHINERY BY250(160V-100) and BY300 bucket parts

power barrow flat  bed

Thickness: 15mm

Width: 49cm

Dry Weight: 16kg

power barrow snow plough

Length: 85cm

Height: 56cm

Dry Weight:30kg

power barrow extension sides

Length: 83cm

Height: 40cm

Dry Weight:23.5kg

Powerlift

Carrying size: 40 x 45 x 100cm

Battery: 12V

Lifting weight: 250kg

Dry Weight: 36

Ball hitch

Installing diameter: 18mm

Traction frame size: 390mm×380mm×145mm

Max draw capacity: 1500kgs

Dry weight: 9.5kgs

package

detail

certificate

customers and power barrow

workshop

Company introduction

Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta

The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields

Global market

Europe, America, southeast, Asia and Africa
