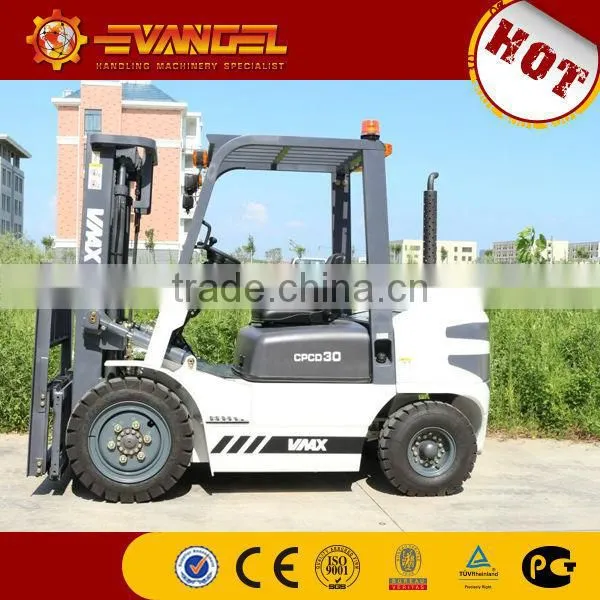

Forklift With Chinese Xinchang C490bpg Engine, 3t Capacity/CE and ISO Certificate

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier
5Yrs
Forklift With Chinese Xinchang C490bpg Engine, 3t Capacity/CE and ISO Certificate thumbnail-1
Forklift With Chinese Xinchang C490bpg Engine, 3t Capacity/CE and ISO Certificate photo-1
US$ 1 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Vmax
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Vmax
Model Number CPCD30
Type Other, Diesel Forklift Truck
Power Souce Diesel Engine
Rated Loading Capacity 3000Kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 2505*1160*2070mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

forklift with chinese xinchang c490bpg engine, 3t capacity/CE and ISO Certificate

Product Description

forklift with chinese xinchang c490bpg engine, 3t capacity/CE and ISO Certificateforklift with chinese xinchang c490bpg engine, 3t capacity/CE and ISO Certificateforklift with chinese xinchang c490bpg engine, 3t capacity/CE and ISO Certificateforklift with chinese xinchang c490bpg engine, 3t capacity/CE and ISO Certificate

Here are the details of standard configurations:

Diesel forklift truck with 3,000kg load capacity

Model Number: CPCD30

Equipped with  China engine C490BPG,Hydraulic transmission with TCM-technology

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
ModelUnitCPC30/CPCD30
Power type Diesel
Rated capacitykg3000
Load centermm500
Mast Lifting heightmm3000
Free lift heightmm175
Fork size(L*W*T)mm1070×125×45
Tilting Angles(Front/Rear)deg6°/12°
Front overhangmm485


Exterior Size		Length without forkmm2680
Overall widthmm1225
Mast dropmm2065
Max.liftmm4250
Front-wheel Overheadmm2070
Min Turning Radiusmm2420
Min.intersecting aislemm2100


Speeds		Max Driving speedskm/h18.5/20
Lifting speedsmm/s470/520
Lowering speedsmm/s550/520
Max.grade ability%20
Total weightkg4300

Tires		Front 28*9-15-12PR
Rear 6.5-10-10PR
Wheelbasemm1700

Tread		Frontmm1000
Rearmm970
Min.ground clearancemm110


Engine		Model XINCHANG490BPG
Rated outputkw/rpm37/2650
Rated torqueN.m/rpm148/1800
No.of cylinder 4
DisplacementL2.54
Fuel tank capacityL52
OPTION:

As a professional manufacturer of forklift, we also can offer you customized service,

 the following items are optional:

Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m

side shifter, fork positioner,longer forks, fork extension

For the details of customized configurations and options, please contact with us.

VMAX professional service will be impressed on you.


OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.

Contact Information:



Ms. Penny Wang

Mobile: +86-187-212-61510

Skype: pennyw921

Tel: +86-21-62770109 ext.805
Fax: +86-21-62120109
