Forklift Spare Parts Japanese Diesel Type Engine 42.1kw
- 100 Unit / Units per Month
- shanghai qingdao tianjin
- T/T L/C D/P D/A Credit Card PayPal
- 43.7kw Diesel Engine 4TNE98 For forklift using
- small mini electric manual hand stacker forklift
- Forklift Tyres 6.5-10-10PR for YTO 3 tons forklift truck
- Forklift Pneumatic Tyres for YTO 3 Tons Diesel Forklift Truck CPCD30
- Heli/YTO/LONKING forklift warning light spare parts
- QC490GP diesel engine spare parts
Product Details
Place of Origin: | Japan | Brand Name: | Yangma | Model Number: | 4TNE98 |
Packaging Details
nude package
Product Description

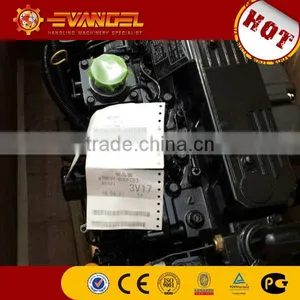

Forklift Spare Parts Japanese Diesel Type Engine 42.1kw
Engine | Model | 4TNE98 | |||
Manufacturer | YANGMA | ||||
Rated power | kw | 42.1/2300 | |||
Max. rotation | Nm/rpm | 186/1700 | |||
Displacement | L | 3.318 |
Speciality parameter | Model | CPCD30 | ||||
Power type | Diesel | |||||
Rated capacity | kg | 3000 | ||||
Load center | d | mm | 500 | |||
Lift height | h2 | mm | 3000 | |||
Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | |||
Front overhang | L3 | mm | 485 | |||
Wheel-base | L4 | mm | 1700 | |||
Tread(front/rear) | b4/b5 | mm | 1000/980 | |||
Performance parameter | Travel brake | Hydraulic-Foot pedal | ||||
Parking brake | Mechanical-Hand level | |||||
Lift speed(with/without load) | mm/s | 400/440 | ||||
Lower speed (with/without load) | mm/s | with load<600 without load>300 | ||||
Travel speed (with/without load) | km/h | 18/19 | ||||
Max. gradeability (with load) | % | 20 | ||||
Max. Towing (with/without load) | kN | 15/13 | ||||
Weight Distribution with load(pront/rear) | 6130/1170 | |||||
Weight Distribution without load(pront/rear) | 1720/2580 | |||||
Power, transmission and others | Engine | Model | C490BPG | |||
Manufacturer | Xinchang | |||||
Rated power | kw | 40/2650 | ||||
Max.roration | 162/1800 | |||||
Dispilacement | 2.54 | |||||
Battery | Voltage | V | 12 | |||
Capacity | Ah | 100 | ||||
Gearbox | Transmission type | Hydraulic | ||||
Gears,speed (front/rear) | Ⅰ/Ⅰ | |||||
Tire | type | Pneumatic tyre | ||||
Model | Pront | 28×9-15-14PR | ||||
Rear | 6.5-10-10PR | |||||
Other | Self.weight | kg | 4280 | |||
Free lift height | h4 | mm | 165 | |||
Fork | Thickness×Width×Length | c×b×a | mm | 45×125×1070 | ||
Overall dimensions | Overall length(without forks) | L2 | mm | 2770 | ||
Overall width | b1 | mm | 1225 | |||
Overall height | Extended height(mast) | h1 | mm | 4225 | ||
Lower height(mast) | h3 | mm | 2070 | |||
Overhead guard | h7 | mm | 2160 | |||
Min. turning radius | Wa | mm | 2410 | |||
Min. under ground clearance | Under mast | m1 | mm | 120 | ||
Center of wheel-base | m2 | mm | 160 |
