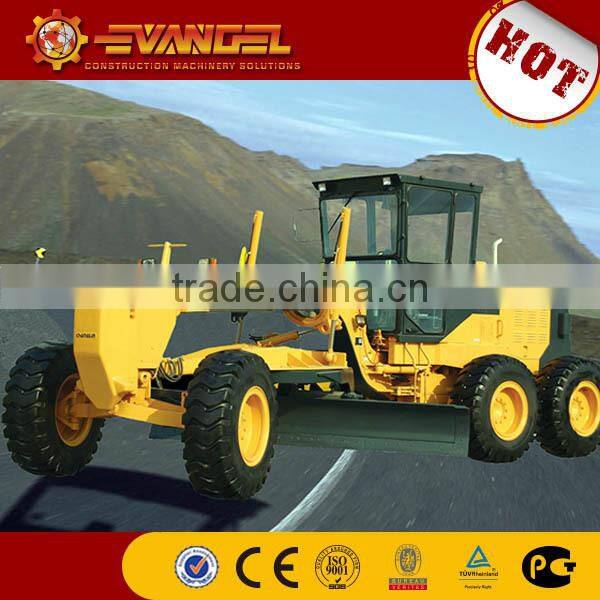

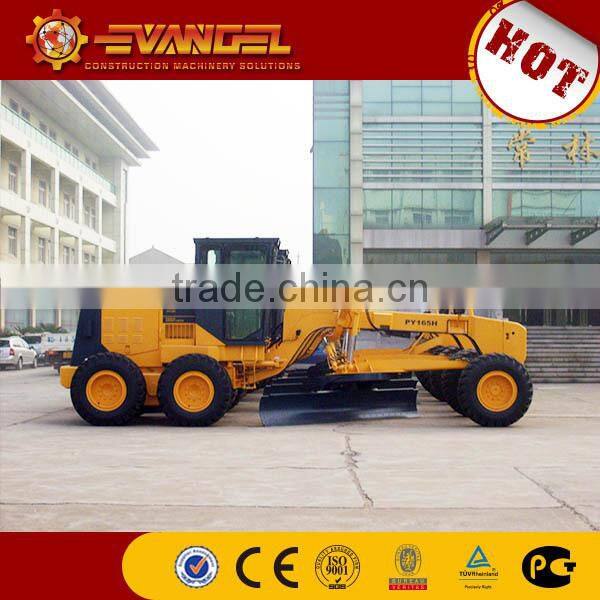

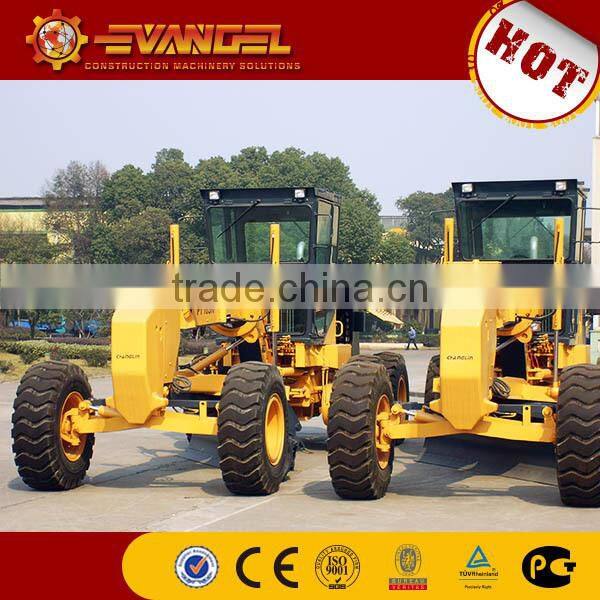

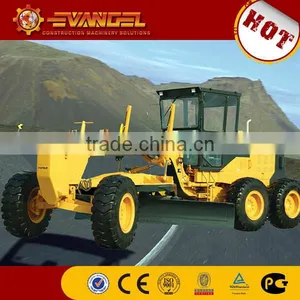

Changlin new 180ps/hp PY165H motor grader with front dozer/rear ripper
A motor grader,also commonly known as a road grader, a blade, a maintainer, is an engineering vehicle or construction
equipment(construction machinery) with a large front dozer used to create a flat surface.
Features of Motor Grader PY165H:
1. Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient
2. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability
3. Powerful traction deal axle load allocation provides excellent stability while cutting hard surface
4. Serviceable, efficient hydraulic system enables every part to be fully used
5. Box-typed frame and advanced T/M enable it to complete heavy-duty work
6. A wide working range is accomplished through flexible blade suspension system and articulated frame
Applications of Motor Grader PY165H:
As a type of engineering vehicle/construction equipment (construction machinery), motor grader PY165H is used to create flat surface in the airport or construction of paved road.
Specifications of Motor Grader PY165H:
Overall Dimension | |||
1 | Length | 8630mm | |
2 | Width | 2600mm | |
3 | Height(To the top of the cab) | 3370mm | |
4 | Wheel base | 6100mm | |
5 | Tread | 2120(mm) | |
Main Technical Specification | |||
1 | Operating weight | 14500kg | |
2 | Blade length | 3660mm | |
3 | Blade height | 645mm | |
4 | Blade width | 18mm | |
5 | Max lifting height | 450mm | |
6 | Max grading depth | 535mm | |
7 | Min. turning radius | 7300mm | |
8 | Pivot angle frame | +260 | |
9 | Max turning angle(front wheel) | +490 | |
10 | Oscillating angle of front axle | 320 | |
11 | Front axle center ground clearance | 610mm | |
12 | Traveling speed(Km/h),6 forward and 3 reverse | ||
| (1) I gear forward | 6.5 | |
(2) II gear forward | 11.4 | ||
(3) IIIgear forward | 14.6 | ||
(4) IVgear forward | 24.8 | ||
(5) V gear forward | 30 | ||
(6) VI gear forward | 49.2 | ||
(7) I gear reverse | 6.5 | ||
(8) II gear reverse | 14.6 | ||
(9) IIIgear reverse | 30 | ||
Diesel engine | |||
1 | Model | 6BT5.9-C168 | Chinese engine D6114ZG9B |
2 | Type | Direct injection. Turbocharged. Water cooling | |
3 | Rated output | 125kW | 125kW |
4 | Inter-bore of cylinder/Stroke | 102/120 (mm) | 114/135 (mm) |
5 | Total exhaust of cylinder | 5.9(L) | 8.3(L) |
6 | Power of start motor | 4.5(KW) | 7.5(KW) |
7 | Voltage of starting motor | 24(V) | 24(V) |
8 | Rated speed | 2200(r/min) | 2200(r/min) |
9 | Max. Torque | 733(N.M) | 600(N.M) |
10 | Starting type | Electric | Electric |
11 | Min. specific fuel consumption | 201(g/Kw.h) | 226(g/Kw.h) |
12 | Net weight | 452(kg) | 640(kg) |
Transmission System | |||
1.Torque Converter | |||
1 | Model | WG180 (ZF technology) | |
2 | Type | 3-elements.single stage | |
3 | Torque ratio | 2.52 | |
4 | Cooling type | Pressure oil circulating | |
2.Transmission case | |||
1 | Model | WG180 (ZF technology) | |
2 | Type | power shift, single-shift lever, natural-shift lock device | |
3 | Gear shift position | 6 Forward and 3 reverse gears | |
3.Axle and Tire | |||
1 | Type of main reducer | spiral bevel gear, single stage | |
2 | Gear ratio of main reducer | 3.583 | |
3 | Type of final reducer | Single stage chain-drive | |
4 | Gear of ratio of final reducer | 3.75 | |
5 | Gear ratio | 13.436 | |
6 | Tandem drive | Double row roller-chains | |
7 | Size of tire | 17.5-25-12PR | |
Working Device Hydraulic System | |||
1 | Model of oil pump(include steering pump) | CBGj2045/1025 | |
2 | System pressure | 175(kgf/cm2) | |
3 | Model of distribution valve | HUSCO5000-D | |
4 | Cylinder | CHINESE CHANGLIN | |
5 | Hydraulic lock | KAYABA technology | |
6 | Model of oil motor | EATON, JS-130 | |
7 | Blade load | 176kgf | |
Steering System | |||
1 | Type | Fore Tire deflexion | |
2 | Model of steering gear | BZZ1-E160B/ FKA-153022 | |
3 | System pressure | 15MPa | |
Brake System | |||
1 | Type of traveling brake | Hydraulic assisted actuate drum brake | |
2 | Oil pressure | 120(kgf/cm2) | |
3 | Type of parking brake | Flexible control and inner-expanding drum brake | |
Oil Capacity | |||
1 | Fuel(diesel) | 350L | |
2 | Engine lubricating oil | 27L | |
3 | Oil for converter and gear box | 45L | |
4 | Oil for hydraulic system | 70L | |
5 | Oil for driving rear axles | 18L | |
6 | Balance box | 84L | |
