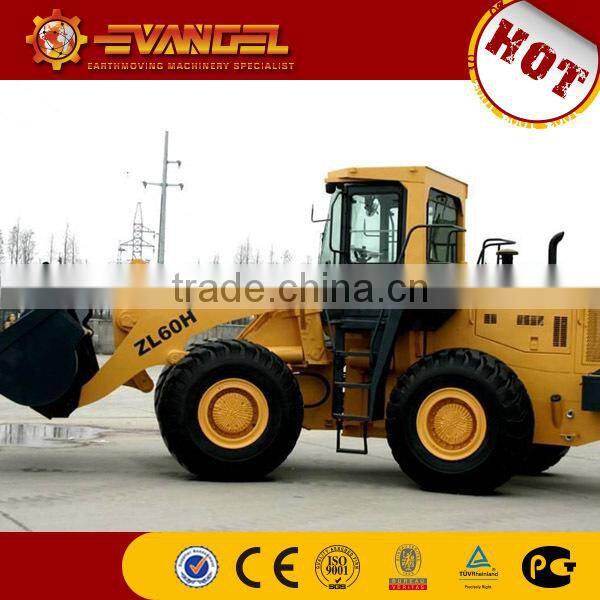

Garden Tractor With Front Loader CHANGLIN ZL60H Wheel Loader Price List

Overall Dimension

1

Length(with bucket on ground)

8280(mm)

2

Width(to outside of wheels)

2897(mm)

3

Bucket width

3064(mm)

4

Height(To the top of the cab)

3565(mm)

5

Wheel base

3300(mm)

6

Tyre tread

2300(mm)

7

Min. ground clearance

460(mm)

Main Technical Specification

1

Rated load

6000(Kg)

2

Operating weight

18600kg

3

Rated bucket capacity

3.5(m3)

4

Max. breakout force

186KN

5

Max. Drawing force

180 KN

6

Max. dump clearance

3028(mm)

7

Dump reach

1229(mm)

8

Dump angle at any position

≥450

9

Digging depth(with bucket bottom horizontal)

212(mm)

10

Min. turning radius

(1)Outside of bucket

6870(mm)

(2)Outside of rear wheel

6400(mm)

11

Pivot angle frame

38+10

12

Oscillating angle of rear axle

+12o

13

Lifting time of bucket

6.0(sec.)

14

Lowering time of bucket

3.9(sec.)

15

Dumping time

1.9(sec.)

16

Traveling speed(Km/h)

(1)1st gear (Forward & reverse)

6.6

(2)2nd gear (Forward & reverse)

11.7

(3)3rd gear (Forward & reverse)

23.1

(4)4th gear (Forward)

36

Diesel engine

1

Model

6CTAA8.3-C240 (TIER2)

C6121ZG20(TIER1)

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

179kW

174kW

4

Inter-bore of cylinder/stroke

114/135(mm)

121/152(mm)

5

Total exhaust of cylinder

8.3(L)

10.5L

6

Model of starting motor

Delco-Remy 42MT

4N3181

7

Power of start motor

8.2(KW)

7.5(KW)

8

Voltage of starting motor

24(V)

24V

9

Rated speed

2200rpm

2200rpm

10

Max. Torque

1146(N.m)

918.5(N.m)

11

Starting type

Electric

Electric

12

Min. specific fuel consumption

205(g/Kw.h)

238g/Kw.h

13

Engine specific oil consumption

0.9-1.6(g/Kw.h)

0.95-1.77(g/Kw.h)

14

Net weight

617(Kg)

960Kg
