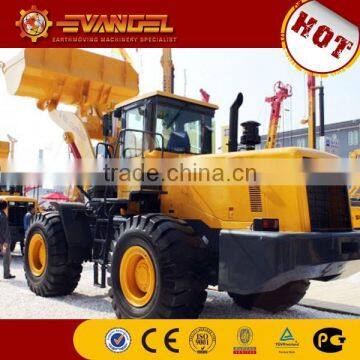

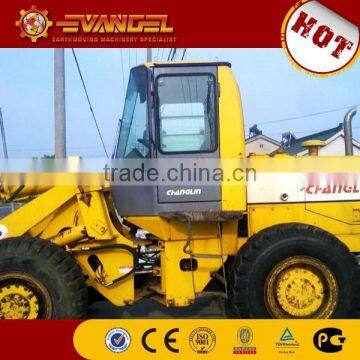

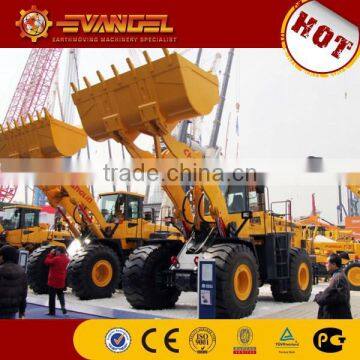

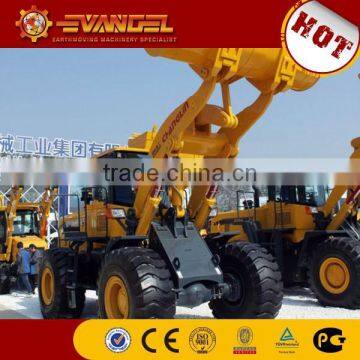

The Most Popular Heavy Duty Changlin Wheel Loader 957H

Overall Dimension

1

Length(with bucket on ground)

8130(mm)

2

Width(to outside of wheels)

2800(mm)

3

Bucket width

2946(mm)

4

Height(To the top of the cab)

3450(mm)

5

Wheel base

3200(mm)

6

Tread

2200(mm)

7

Min. ground clearance

450(mm)

Main Technical Specification

1

Rated load

5000(Kg)

2

Operating weight

16700KG

3

Rated bucket capacity

3.0(m3)

4

Max. breakout force

160kN

5

Max. traction force

150kN

6

Max. dump clearance

3100(mm)

7

Dump reach

1150(mm)

8

Dump angle at any position

≥450

9

Digging depth(with bucket bottom horizontal)

165(mm)

10

Min. turning radius

(1) Outside of bucket

6735(mm)

(2) Outside of front wheel

6098(mm)

11

Pivot angle frame

380

12

Oscillating angle of rear axle

+13o

13

Lifting time of bucket

≤5.6(sec.)

14

Lowering time of bucket

≤3.7(sec.)

15

Dumping time

≤1.7(sec.)

16

Traveling speed(Km/h),3 forward and 3 reverse

(1) 1st gear

7.05/9.0

(2) 2nd gear

11.7/16.0

(3) 3rd gear

34.6/38.24
